Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear impact bar to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the rear impact bar nuts to the rear impact bar.

    Tighten

    Tighten the nuts to 25 N.m (18 lb ft).

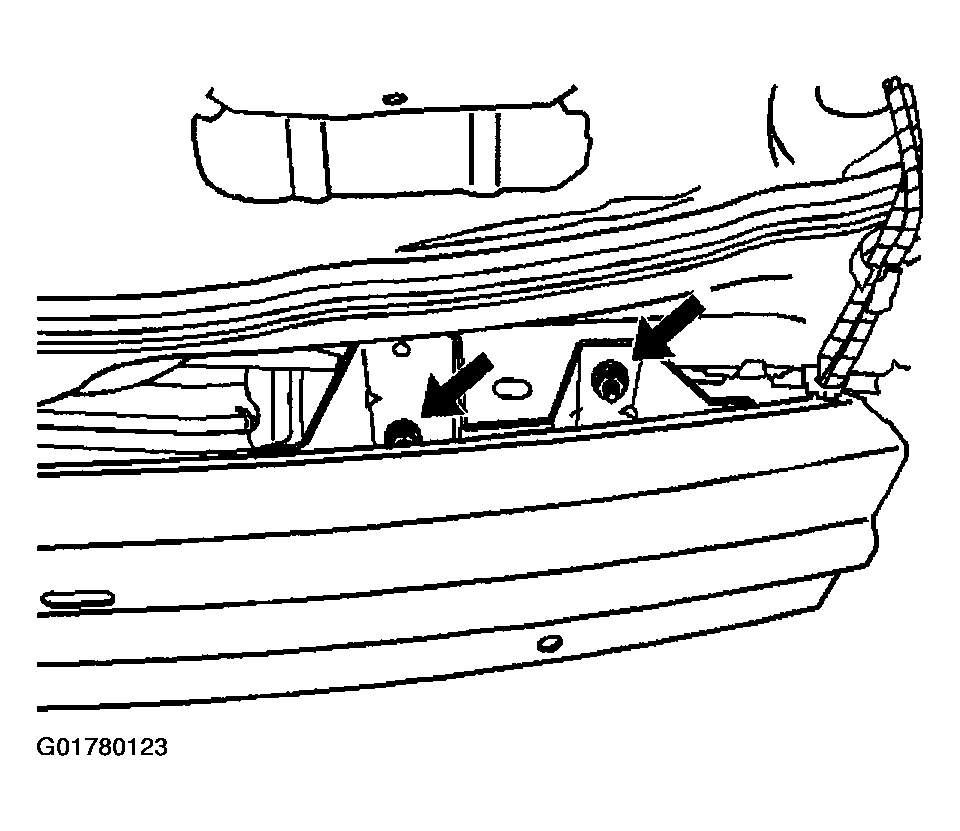

    Fig 1: Installing Rear Impact Bar
    G01780123Courtesy of GENERAL MOTORS CORP.
  3. Connect the wiring harness to the rear impact bar.

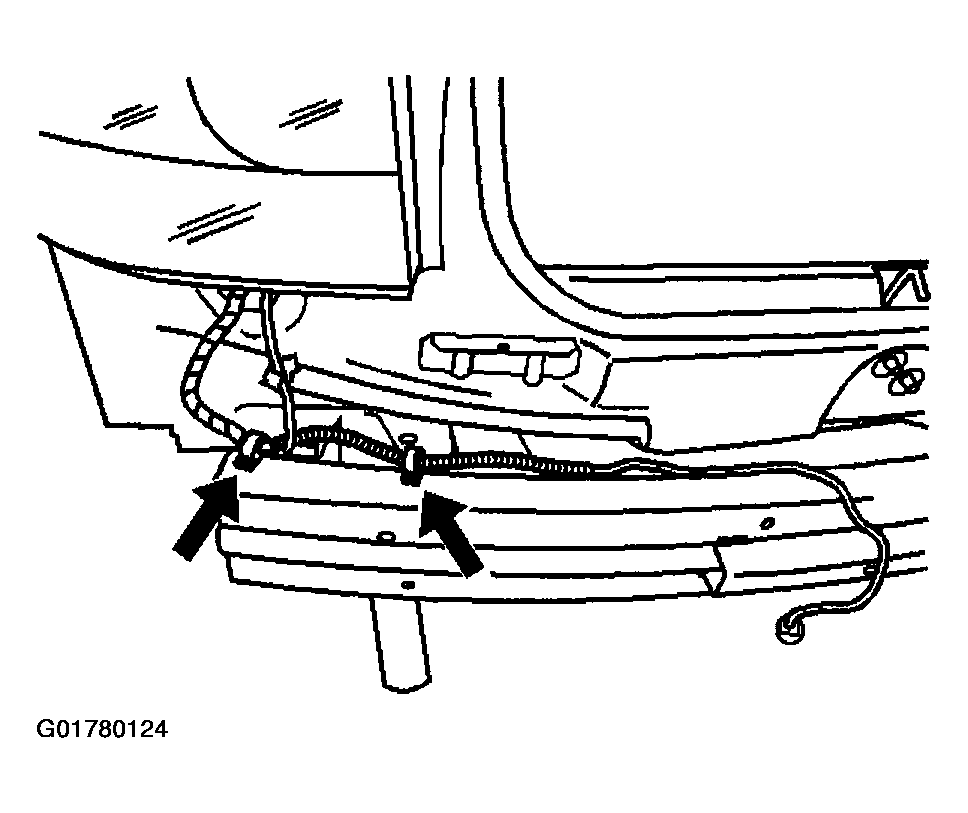

    4. Fig 2: Connecting Wiring Harness From Rear Bumper Impact Bar
    G01780124Courtesy of GENERAL MOTORS CORP.
  4. Install the rear energy absorber. Refer to Energy Absorber Replacement - Rear .
  5. Install the rear bumper fascia. Refer to Fascia Replacement - Rear Bumper .
