Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Refer to Fascia Replacement - Front Bumper .
  2. Remove the energy absorber push-in retainers from the front impact bar.
  3. Remove the energy absorber from the front impact bar.

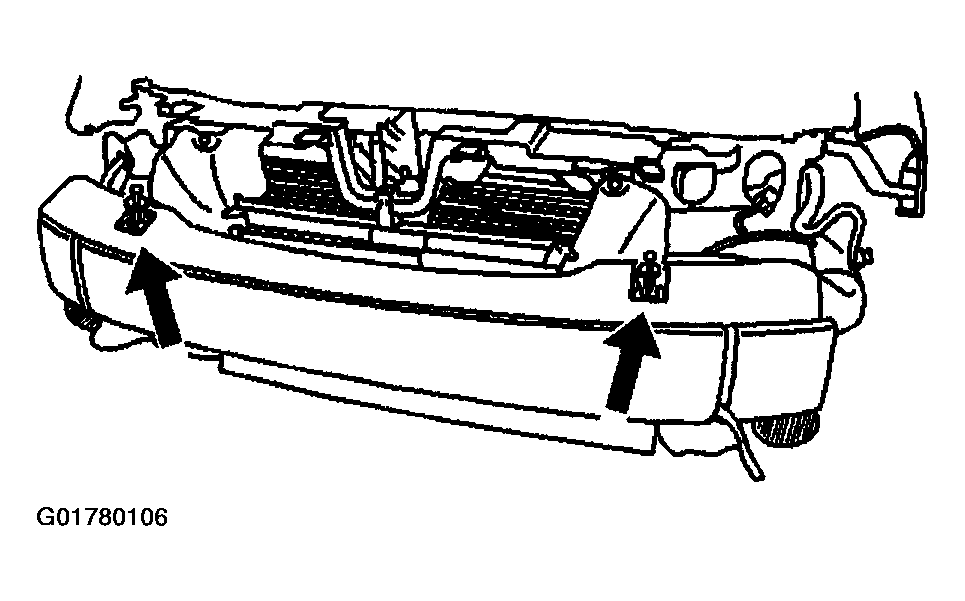

    Fig 1: Removing Energy Absorber
    G01780106Courtesy of GENERAL MOTORS CORP.
  4. Remove the fog lamps. Refer to FOG LAMP REPLACEMENT - FRONT .
  5. Remove the front impact bar nuts (3).
  6. Remove the front impact bar (1) from the frame rail (4).

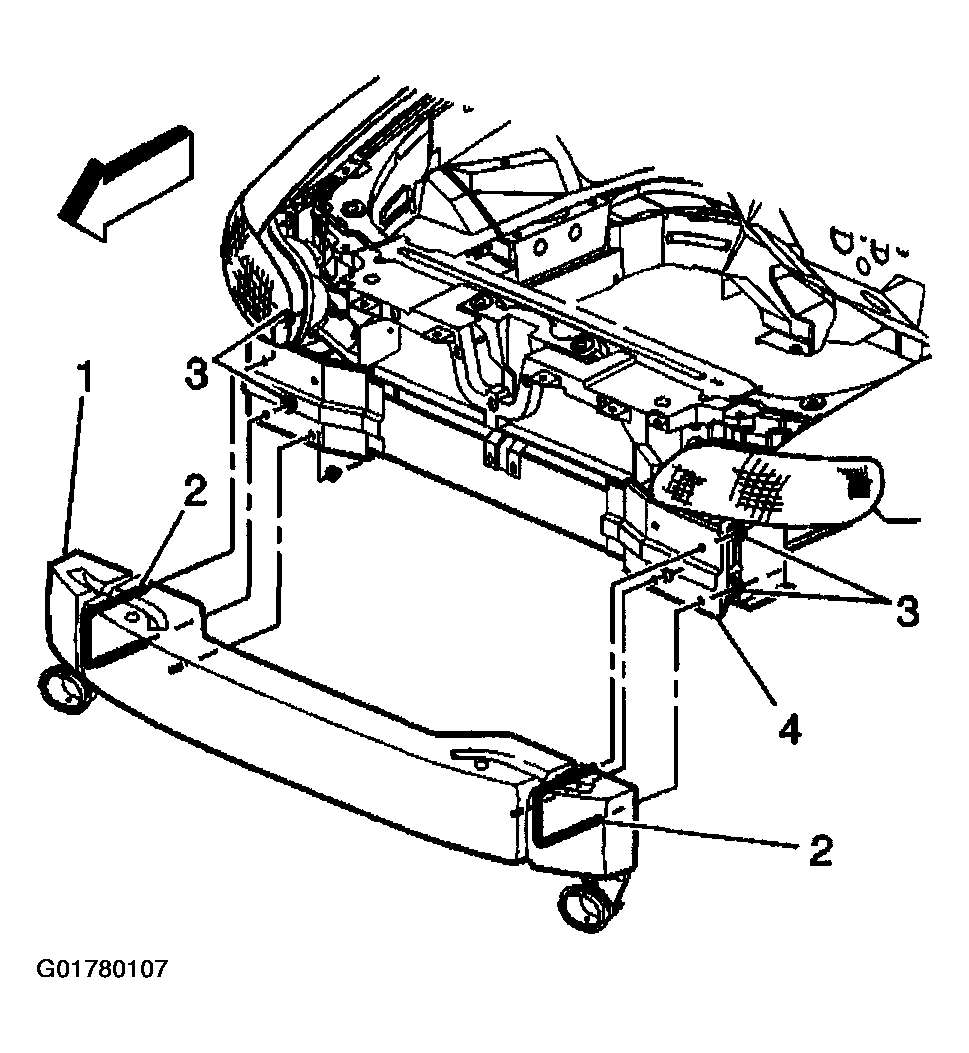

    Fig 2: Removing Front Bumper Impact Bar
    G01780107Courtesy of GENERAL MOTORS CORP.
