Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the impact bar (1) to the vehicle (4).
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the front impact bar retaining nuts (3) to the impact bar (1).

    Tighten

    Tighten the nuts to 27 N.m (20 lb ft).

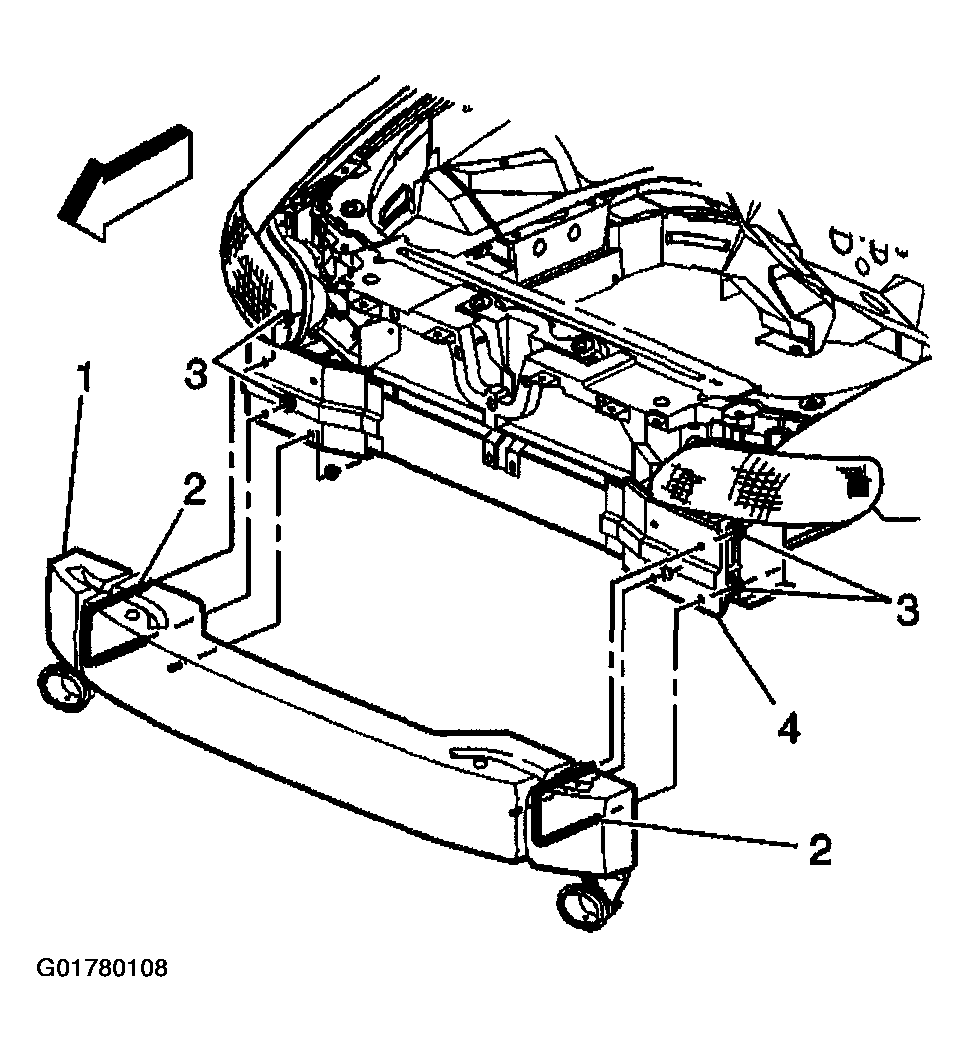

    Fig 1: Installing Front Impact Bar Retaining Nuts
    G01780108Courtesy of GENERAL MOTORS CORP.
  3. Install the energy absorber to the front impact bar.
  4. Install the energy absorber push-in retainers to the impact bar.

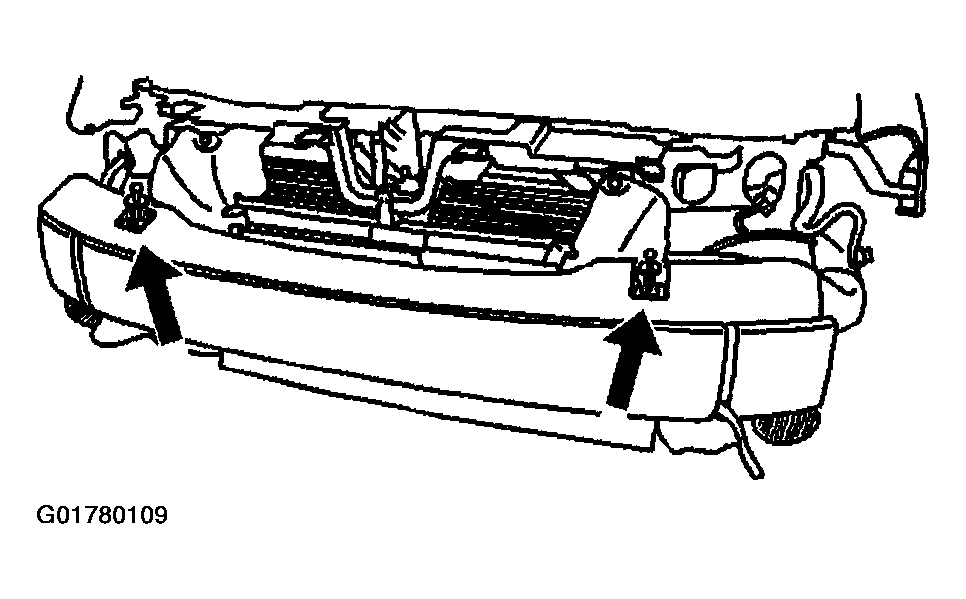

    5. Fig 2: Installing Front Bumper Energy Absorber
    G01780109Courtesy of GENERAL MOTORS CORP.
  5. Install the fog lamps. Refer to FOG LAMP REPLACEMENT - FRONT .
  6. Install the front bumper fascia. Refer to Fascia Replacement - Front Bumper .
