Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push-pin retainer from the front of the rear fascia to the quarter panel.
  2. Remove the retaining screws from the front of the rear fascia.
  3. Remove the screws which secure the quarter panel to the front support bracket.
  4. Pull back the fascia and remove the front support bracket.

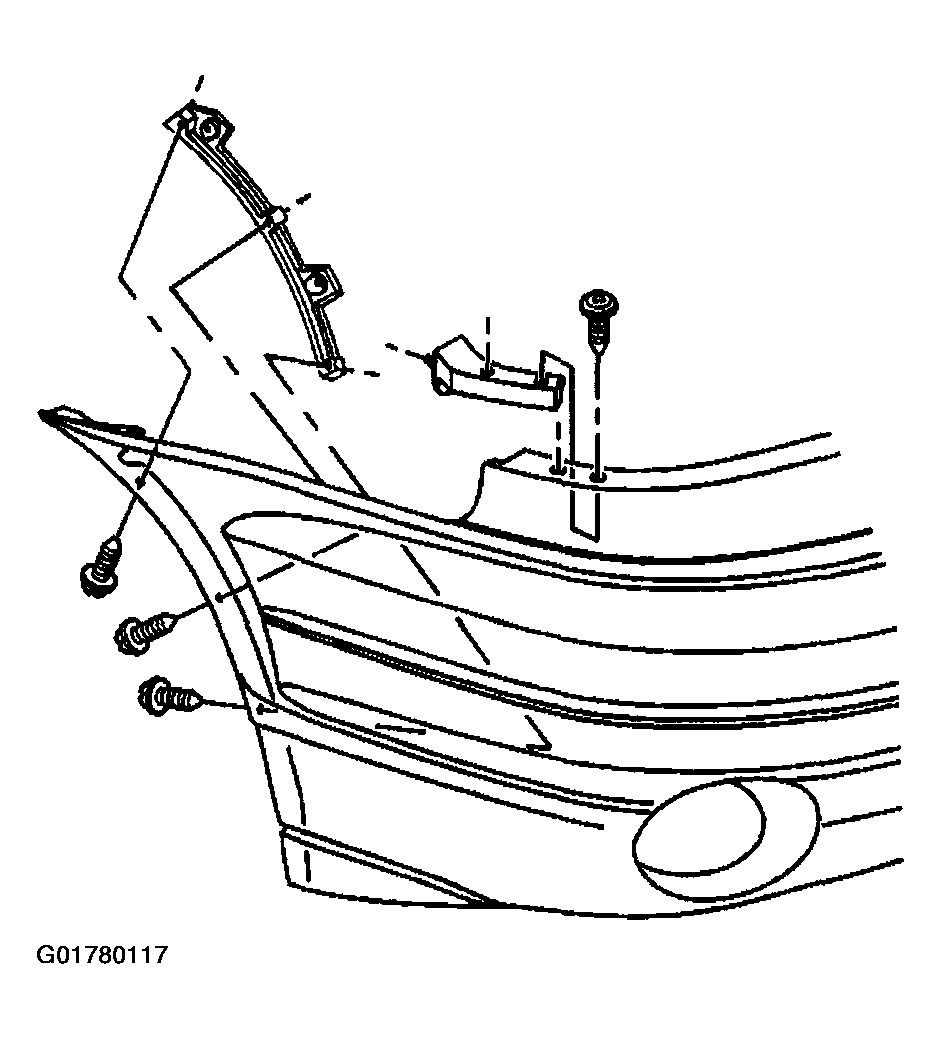

    Fig 1: Removing Rear Bumper Outer Fascia Support
    G01780117Courtesy of GENERAL MOTORS CORP.
