Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front support bracket to the quarter panel.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the front support bracket to quarter panel screws.

    Tighten

    Tighten the front support bracket to quarter panel screws to 6 N.m (53 lb in).

  3. Install the rear fascia to front support bracket screws.

    Tighten

    Tighten the rear fascia to front support bracket screws to 6 N.m (53 lb in).

  4. Install the push-pin retainer to the front of the rear fascia to the quarter panel.

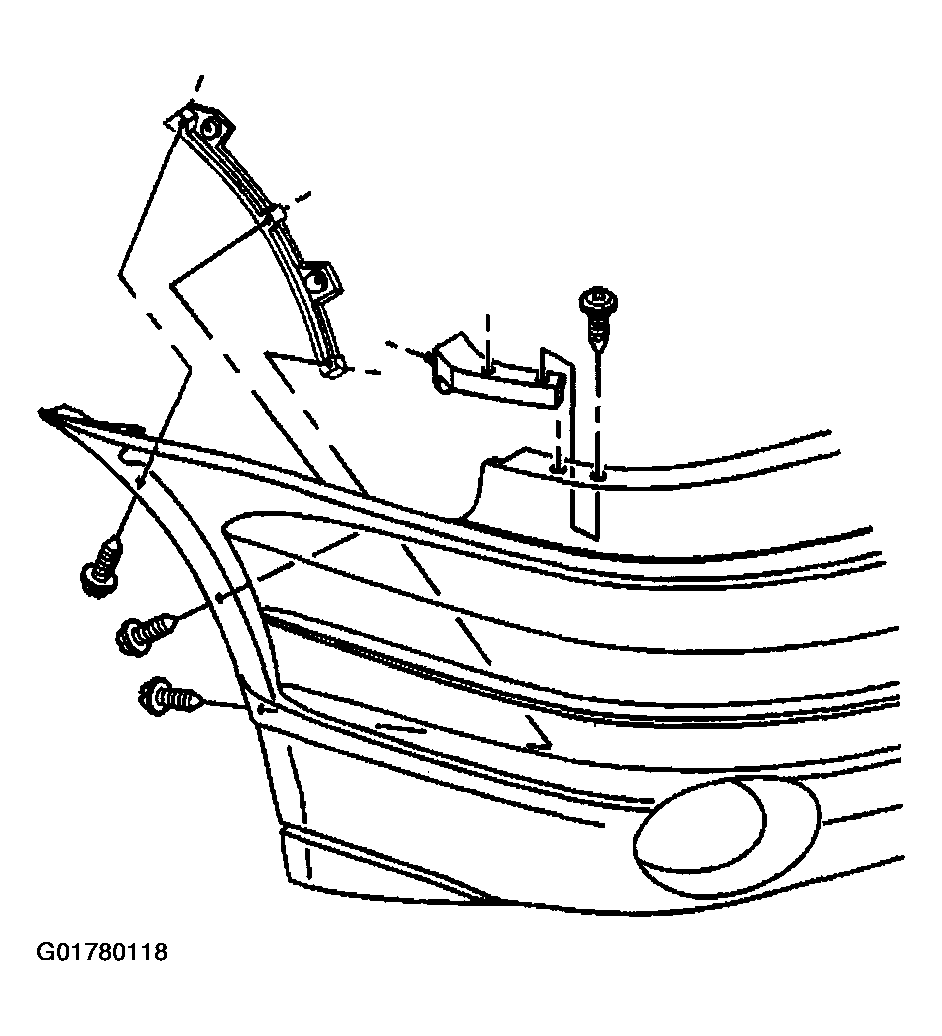

    Fig 1: Installing Rear Bumper Outer Fascia Support
    G01780118Courtesy of GENERAL MOTORS CORP.
