Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fascia. Refer to Fascia Replacement - Front Bumper .
  2. Remove the push-in retainers (1) from the fascia support (2).
  3. Remove the fascia support (2) from the front bumper impact bar.

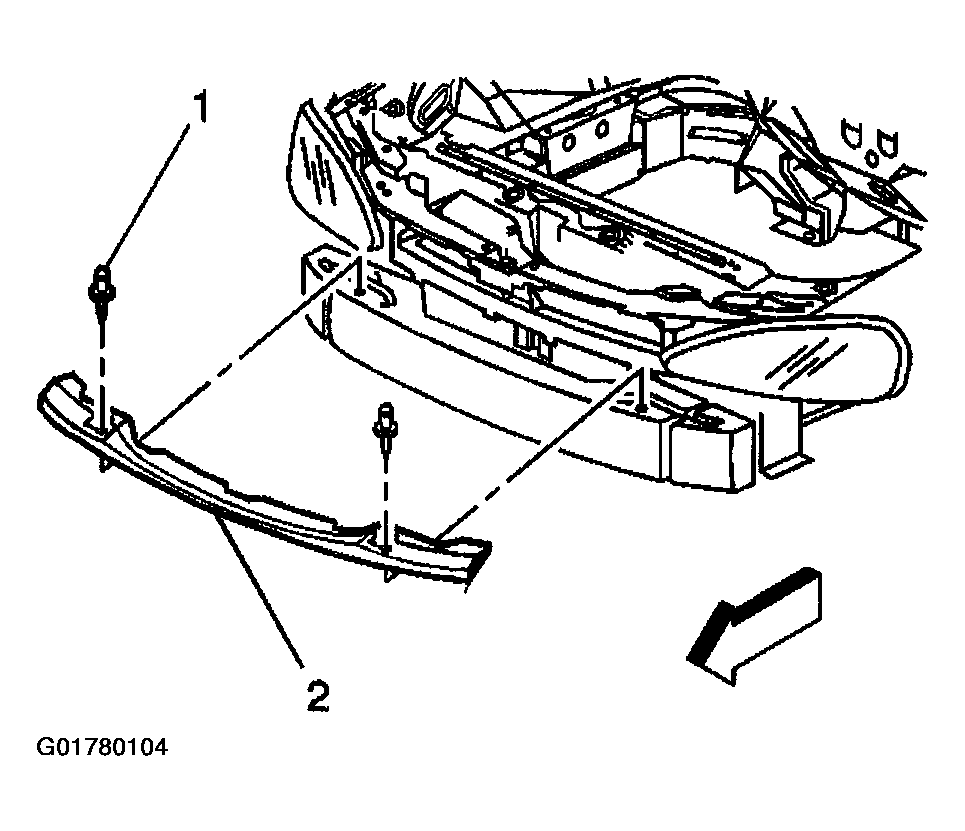

    Fig 1: Removing Front Bumper Fascia
    G01780104Courtesy of GENERAL MOTORS CORP.
