Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front bumper fascia support (2) to the front bumper impact bar.
  2. Install the fascia support push-in retainers (1) to the fascia support (2).
  3. Install the front fascia. Refer to Fascia Replacement - Front Bumper .

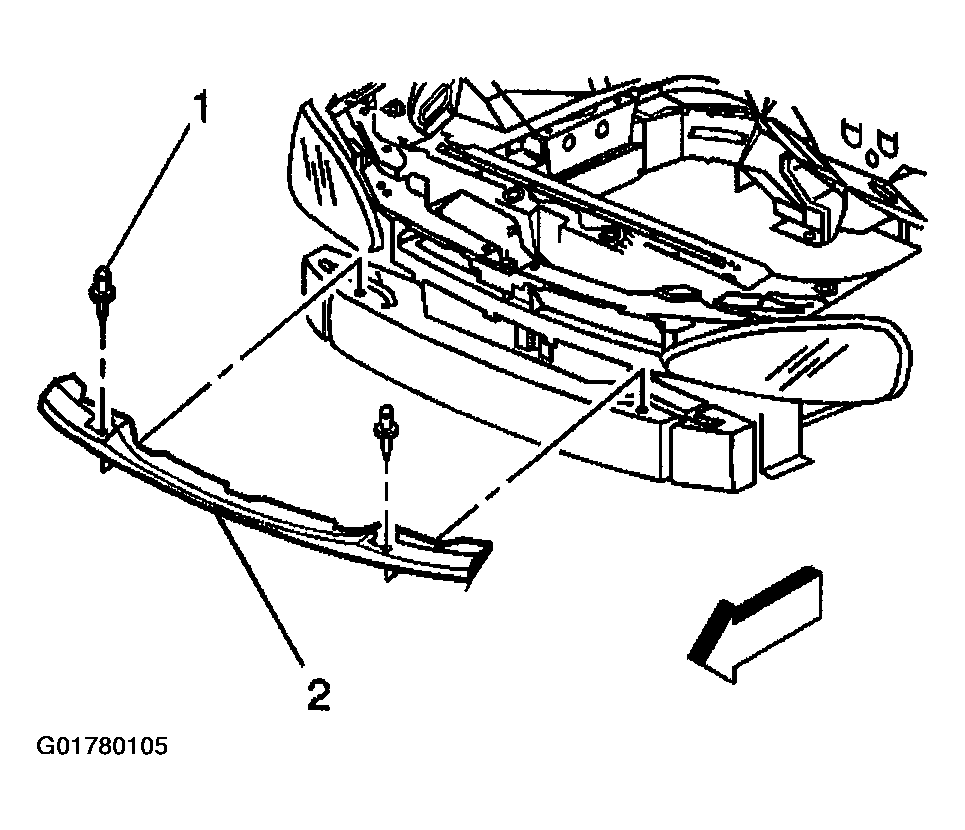

    Fig 1: Installing Front Bumper Fascia
    G01780105Courtesy of GENERAL MOTORS CORP.
