Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the grille. Refer to GRILLE REPLACEMENT .
  2. Remove the upper push-in retainers (4) from the front bumper fascia (3).
  3. Remove the front fender liners. Refer to FRONT FENDER LINER REPLACEMENT .
  4. Remove the front bumper fascia to fender bolts (2).
  5. Remove the front bumper fascia to fender bolts (3).
  6. Remove the lower push-in retainers (4) from the bottom of the front bumper fascia (3).
  7. Remove the side marker lamps from the front bumper fascia. Refer to MARKER LAMP REPLACEMENT - FRONT SIDE .
  8. Remove the front bumper fascia (3) from the impact bar.

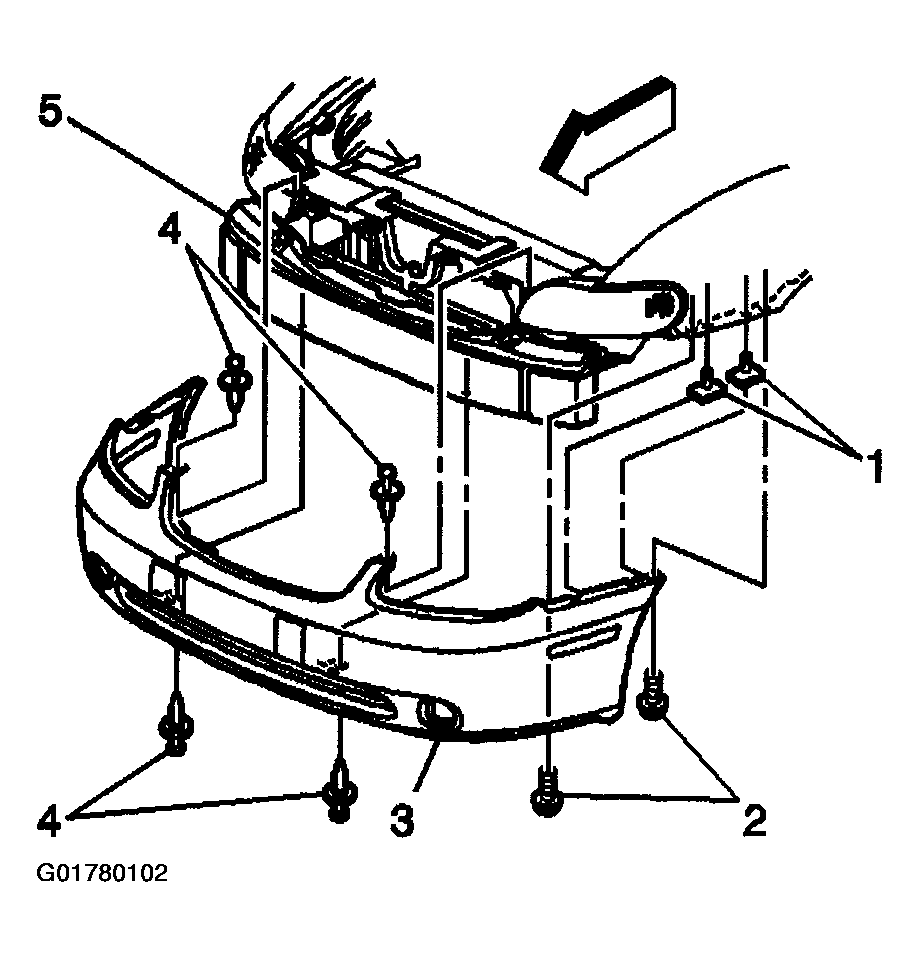

    Fig 1: Removing Front Bumper Fascia
    G01780102Courtesy of GENERAL MOTORS CORP.
