Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front bumper fascia (3) to the impact bar (5).
  2. Install the side marker lamps to the front bumper fascia. Refer to MARKER LAMP REPLACEMENT - FRONT SIDE .
  3. Install the lower push-in retainers (4) to the bottom of the front bumper fascia (3).
    CAUTION: Refer to FASTENER NOTICE .
  4. Install the front bumper fascia to fender bolts (2).

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

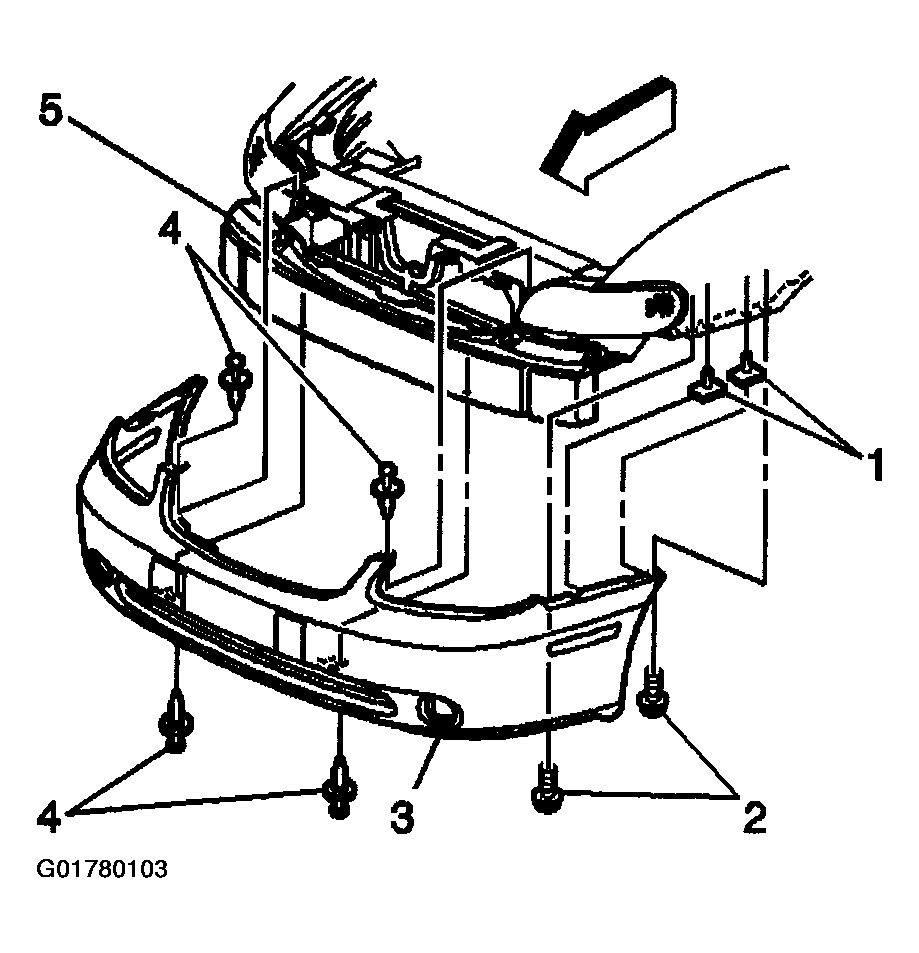

    5. Fig 1: Installing Front Bumper Fascia
    G01780103Courtesy of GENERAL MOTORS CORP.
  5. Install the front bumper fascia to fender retainers (2).
  6. Install the front fender liners. Refer to FRONT FENDER LINER REPLACEMENT .
  7. Install the upper push-in retainers (4) to the front bumper fascia (3).
  8. Install the grille. Refer to GRILLE REPLACEMENT .
