Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to Fascia Replacement - Rear Bumper .
  2. Remove the push-in retainers (3) from the rear energy absorber (2).
  3. Remove the rear energy absorber (2) from the impact bar (1).

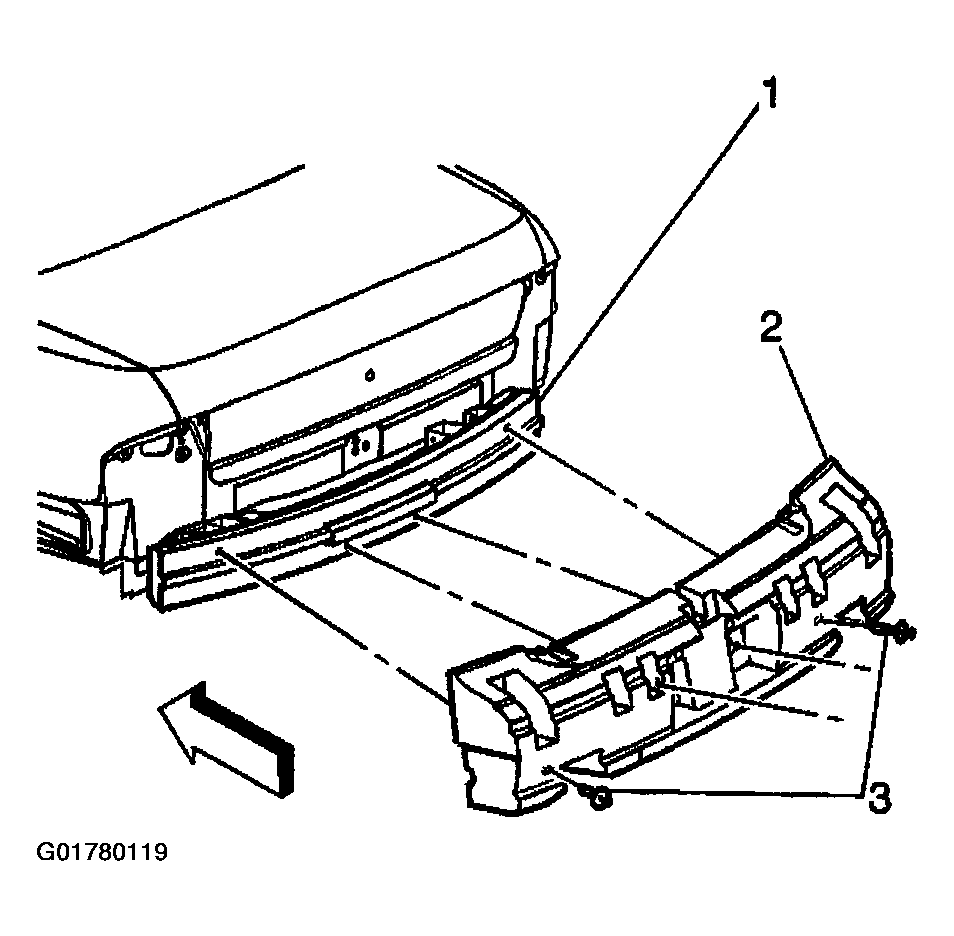

    Fig 1: Removing Rear Energy Absorber
    G01780119Courtesy of GENERAL MOTORS CORP.
