Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear energy absorber (2) to the impact bar (1).
  2. Install the push-in retainers (3) to the rear energy absorber (2).
  3. Install the rear bumper fascia. Refer to Fascia Replacement - Rear Bumper .

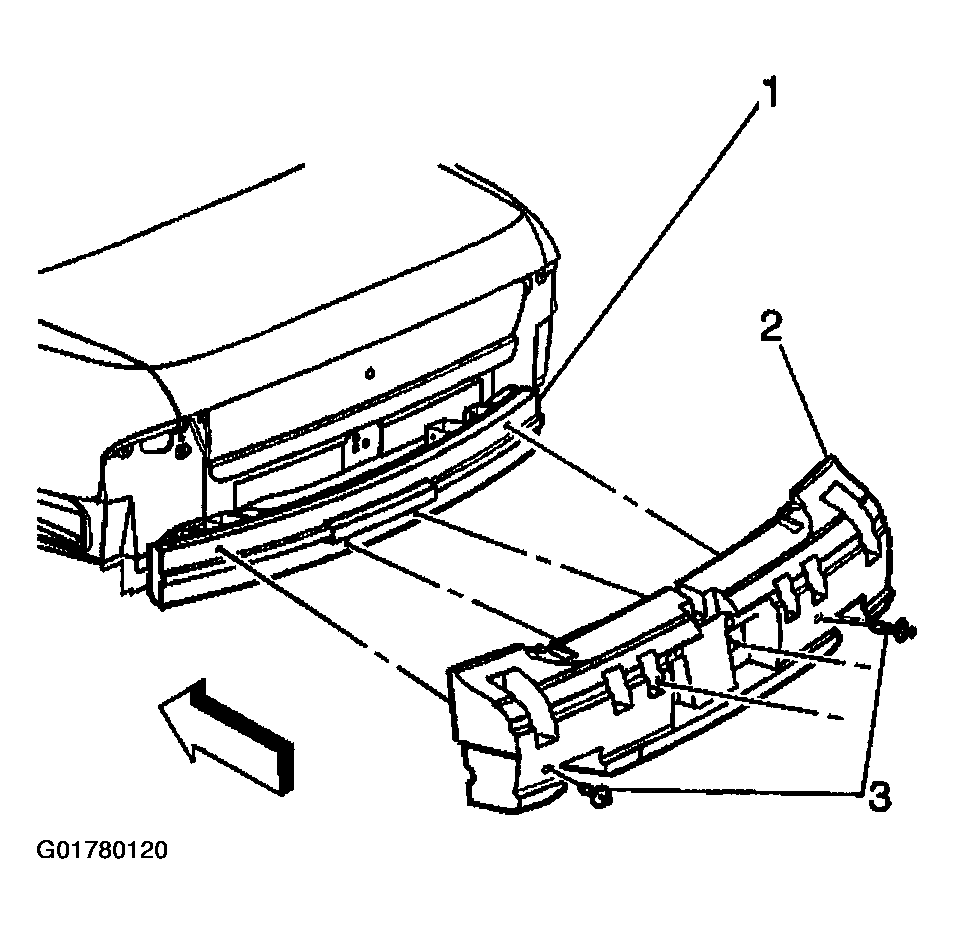

    Fig 1: Installing Rear Energy Absorber
    G01780120Courtesy of GENERAL MOTORS CORP.
