Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the mud flap screws from the mud flaps, if equipped.
  2. Remove the mud flaps from the vehicle.
  3. Remove the rocker panel molding screws (2) from the rocker panel molding (3).
  4. In order to remove the rocker panel molding (3) complete the following steps:
    1. 4.1. Push up on the rocker panel molding (3).
    2. 4.2. Disengage the rocker panel molding (3) from the retainers (4).
  5. Remove the rocker panel molding retaining clips (1) and (4) from the vehicle, if necessary.

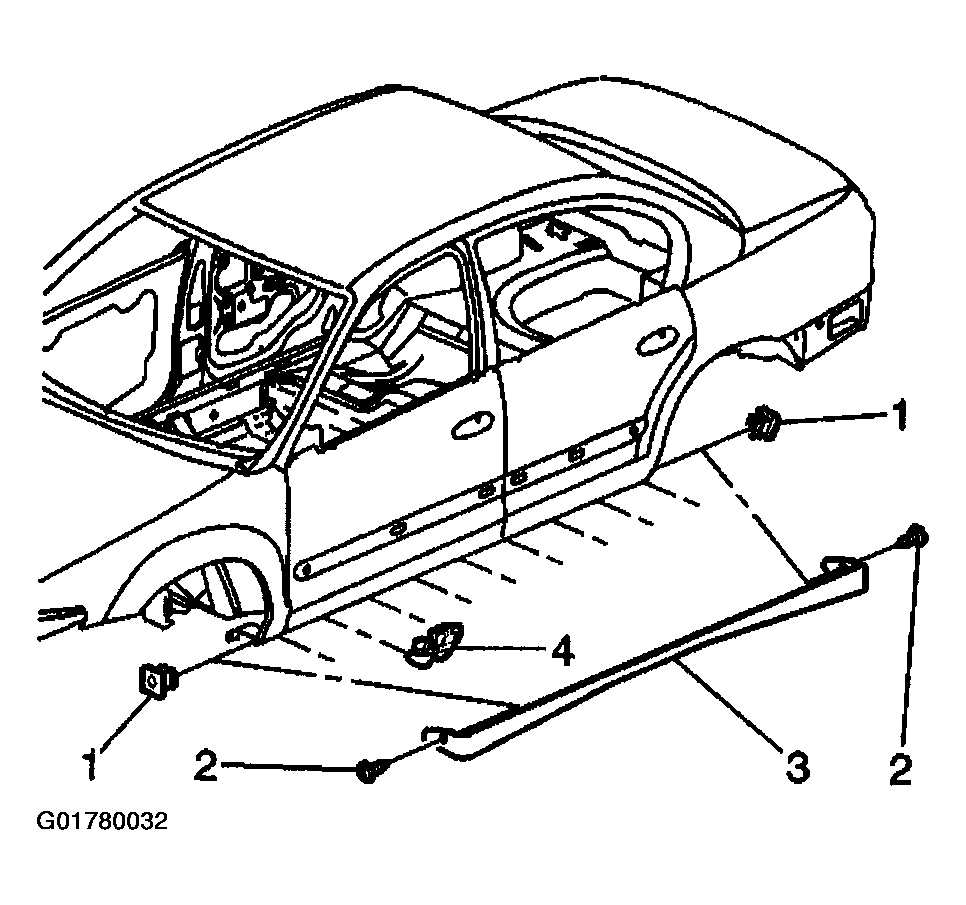

    Fig 1: Removing Rocket Panel Molding
    G01780032Courtesy of GENERAL MOTORS CORP.
