Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rocker panel molding retaining clips (1) and (4) to the vehicle, if removed.
  2. Snap the rocker panel molding (3) over the retainers (4).
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the rocker panel molding screws (2) to the rocker panel molding (3).

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Position the mud flaps to the vehicle, if equipped.
  5. Install the mud flap screws to the mud flaps, if equipped.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

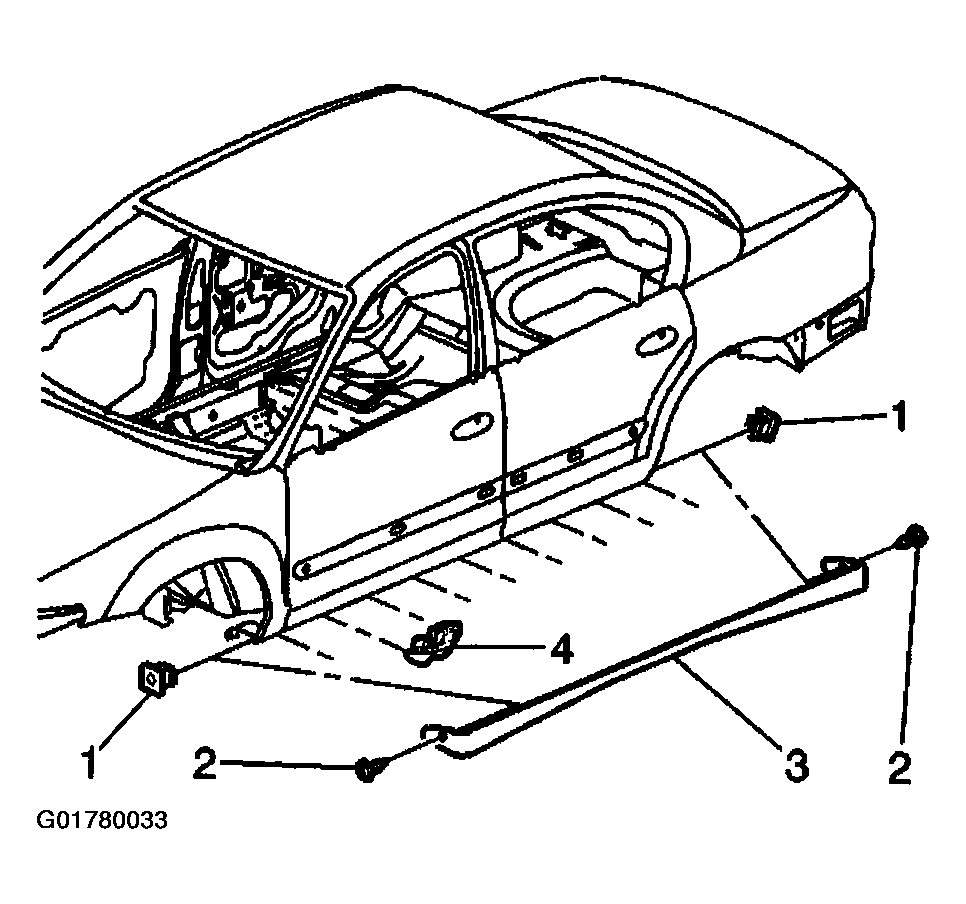

    Fig 1: Installing Rocket Panel Molding
    G01780033Courtesy of GENERAL MOTORS CORP.
