Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Open the hood.
Remove the push-in retainers (1) from the upper edge of the grille.
Disconnect the grille (3) from the front bumper fascia (2).

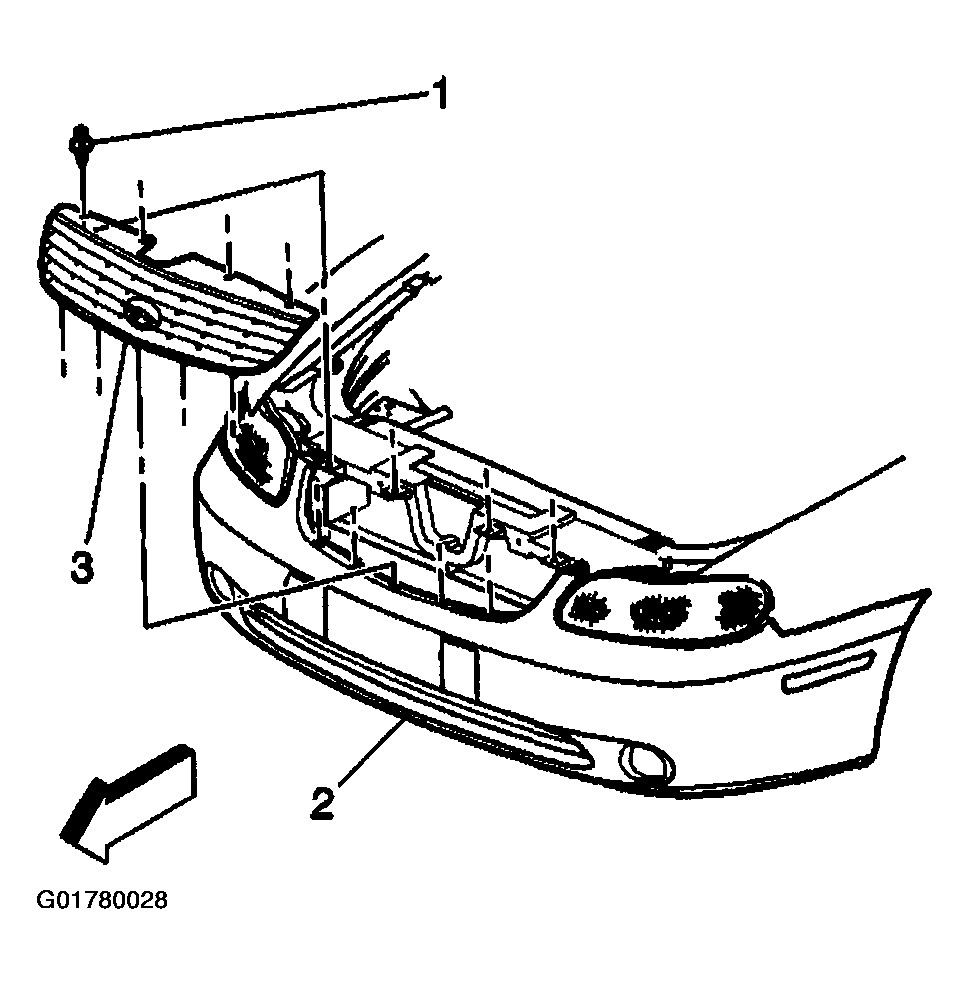

Fig 1: Disconnecting Grille
Courtesy of GENERAL MOTORS CORP.
Remove the nuts from the grille emblem.
Remove the grille emblem from the grille.

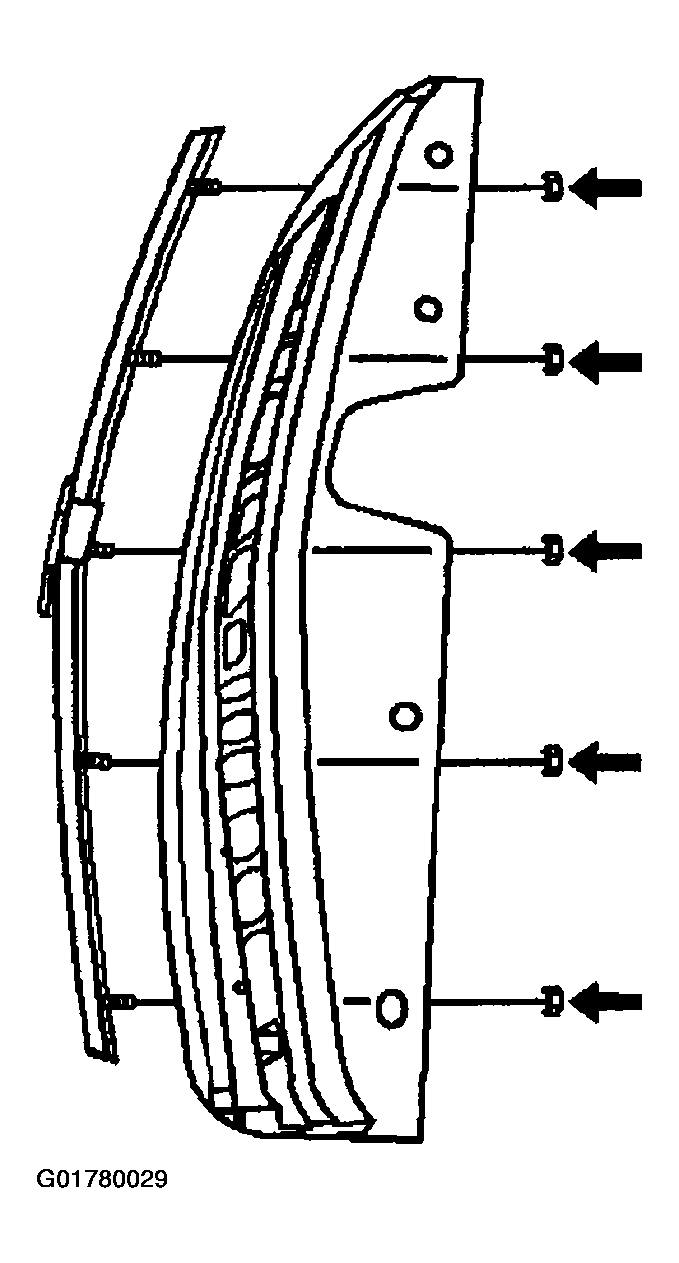

Fig 2: Removing Grille Emblem
Courtesy of GENERAL MOTORS CORP.
