Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

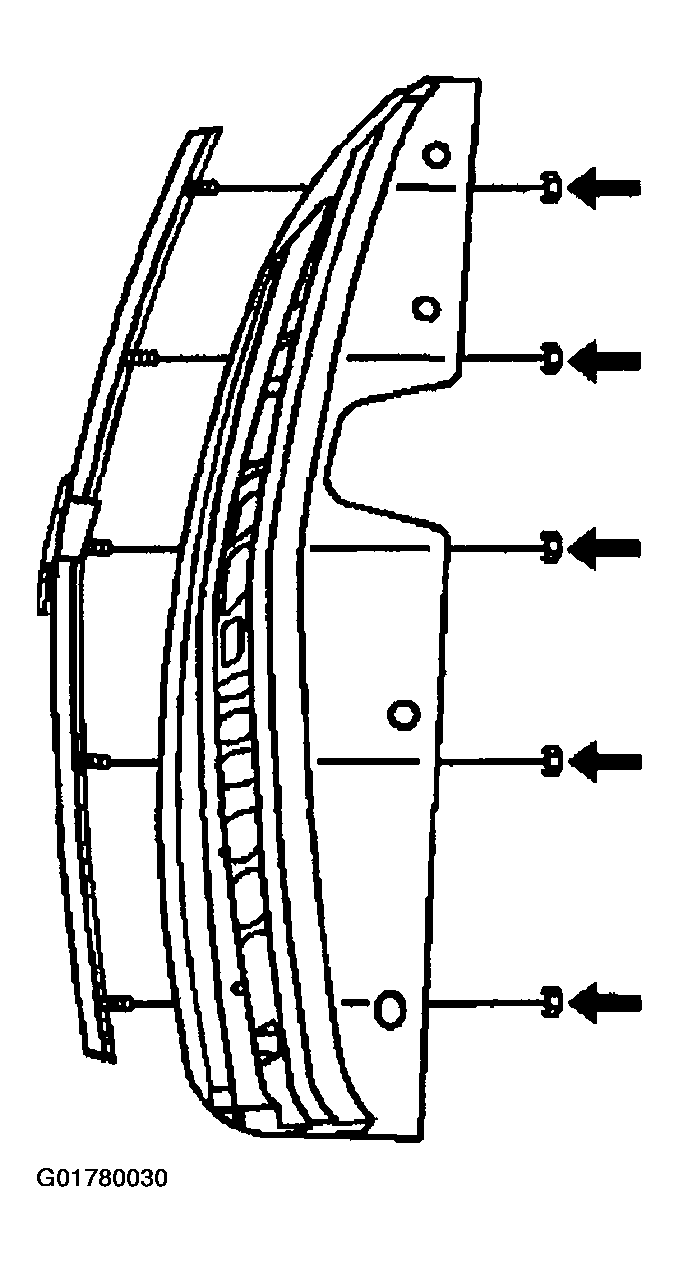

Position the grille emblem to the grille.
CAUTION: Refer to FASTENER NOTICE .
Install the grille emblem nuts to the grille emblem.
Tighten

Tighten the nuts to 1 N.m (9 lb in).

Fig 1: Installing Grille Emblem
Courtesy of GENERAL MOTORS CORP.

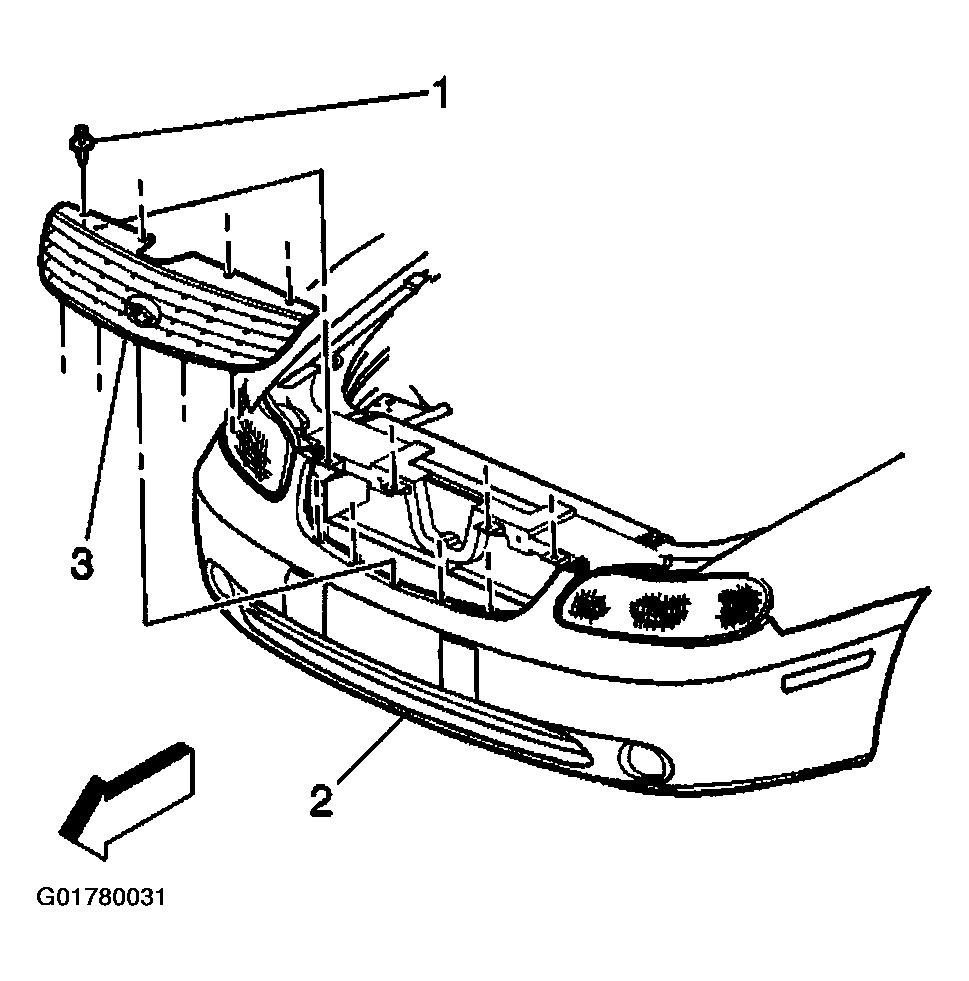

Install the grille (3) to the front bumper fascia (2).

Fig 2: Installing Grille

Courtesy of GENERAL MOTORS CORP.

Install the push-in retainers (1) along the upper edge of the grille.
Close the hood.
