Oil Seal Disassembly Note
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

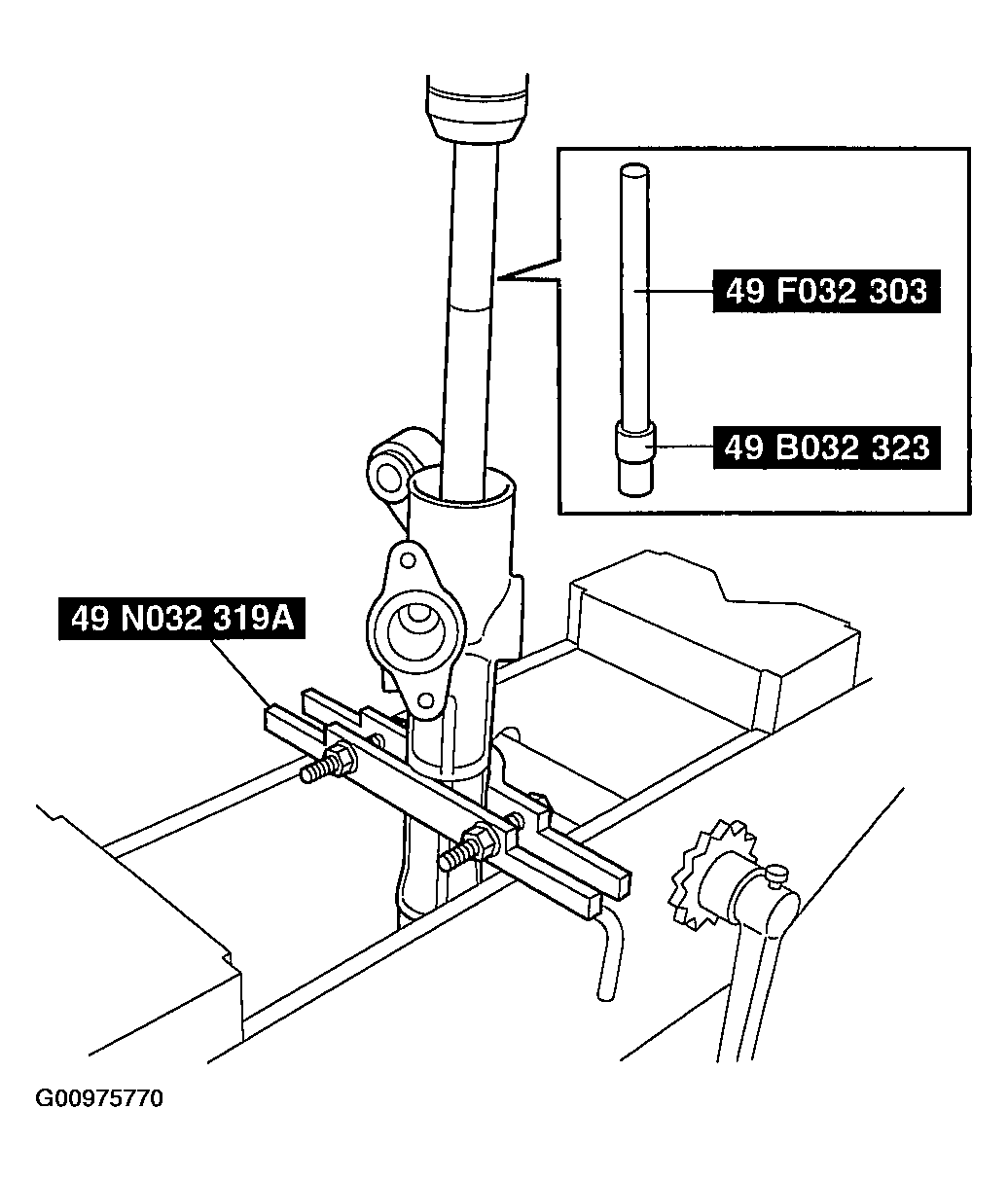

- Install the SST
(49 N032 319A) to the gear housing with the raised part facing up as shown in the figure.
- Insert the SSTs
(49 F032 303, 49 B032 323) into the valve housing side.
- Remove the oil seal using a press.
Courtesy of MAZDA MOTORS CORP.
