Electric Power Steering Oil Pump Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the under cover, splash shield and mudguard.
  2. Remove the washer tank. See WASHER TANK REMOVAL/INSTALLATION .
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

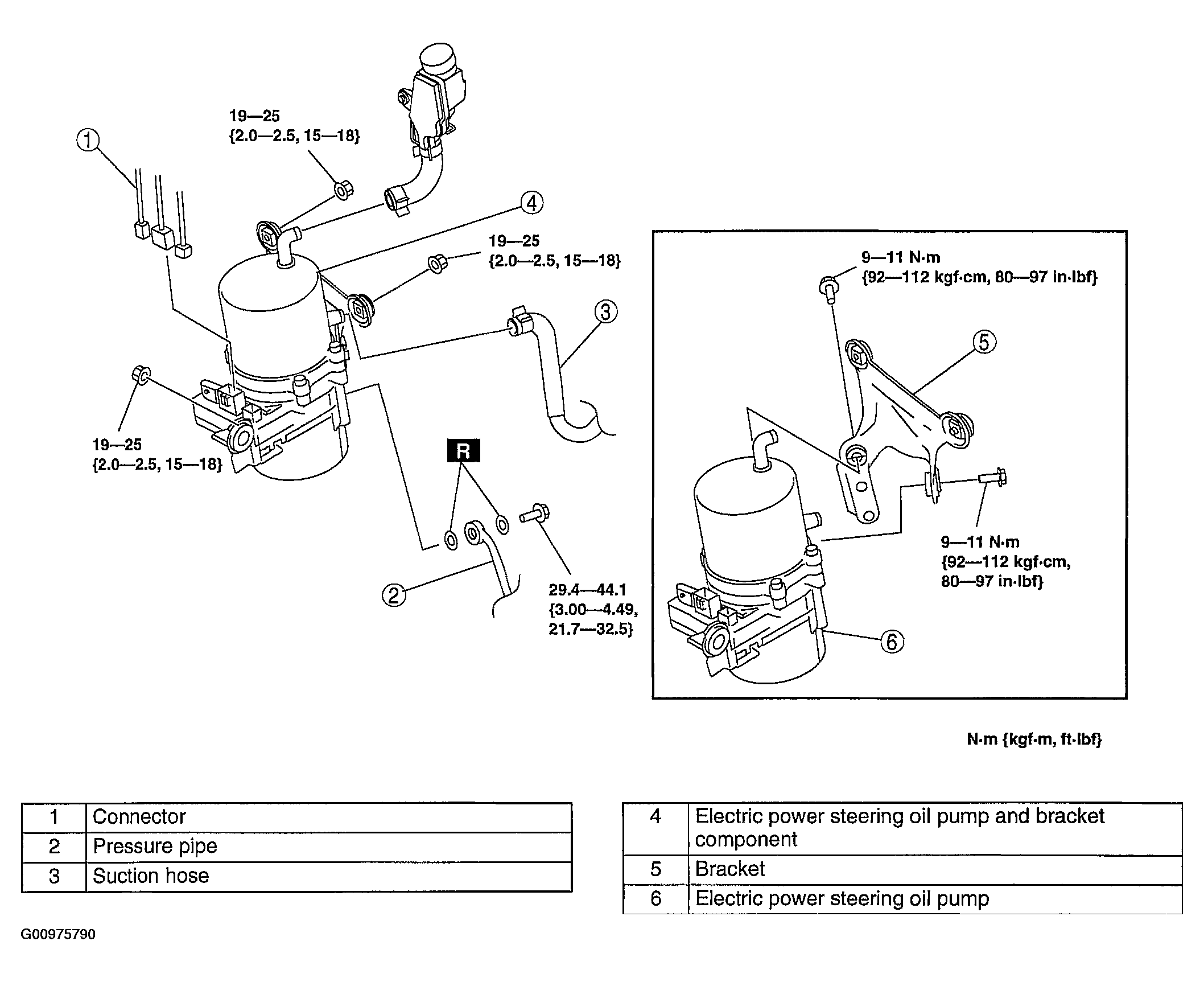

    Fig 1: Electric Power Steering Oil Pump With Torque Specifications
    G00975790Courtesy of MAZDA MOTORS CORP.
