Component Locations

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating CMP Sensor

G00028339

Courtesy of GENERAL MOTORS CORP.

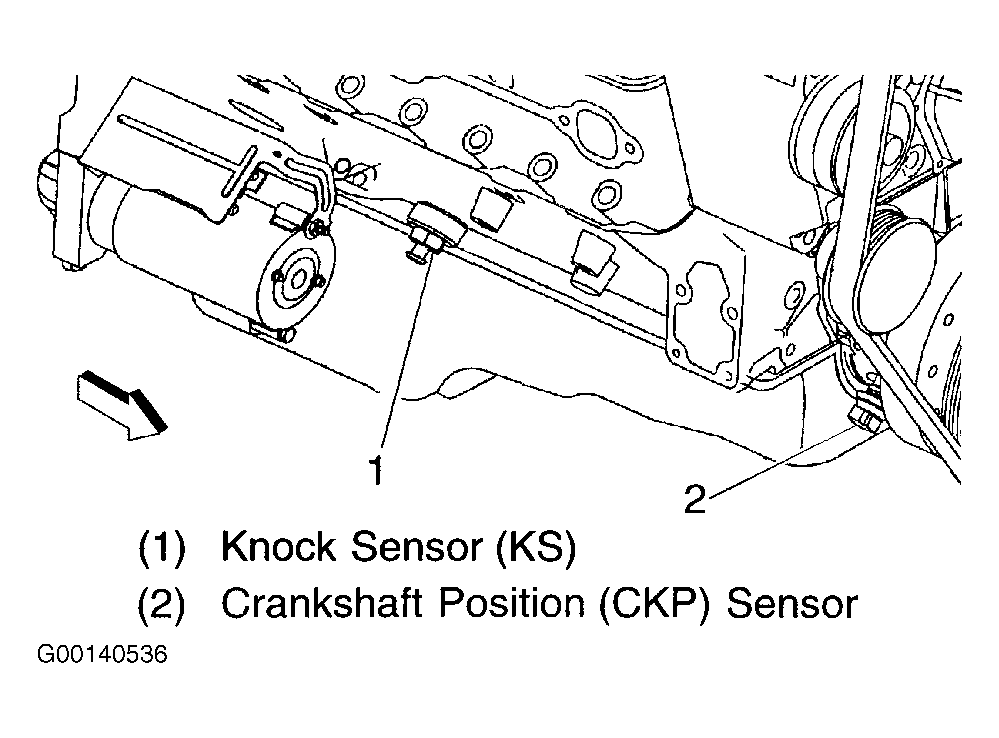

Fig 2: Locating CKP & Knock Sensors

G00140536

Courtesy of GENERAL MOTORS CORP.

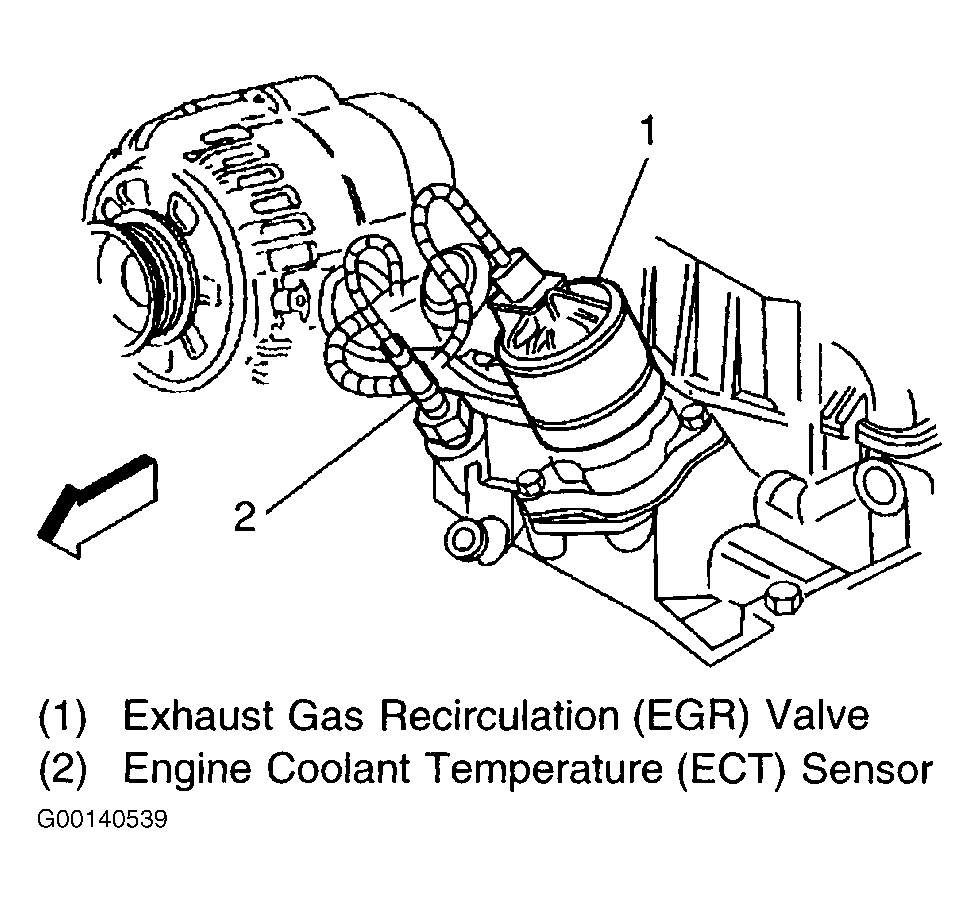

Fig 3: Locating ECT Sensor & EGR Valve

G00140539

Courtesy of GENERAL MOTORS CORP.

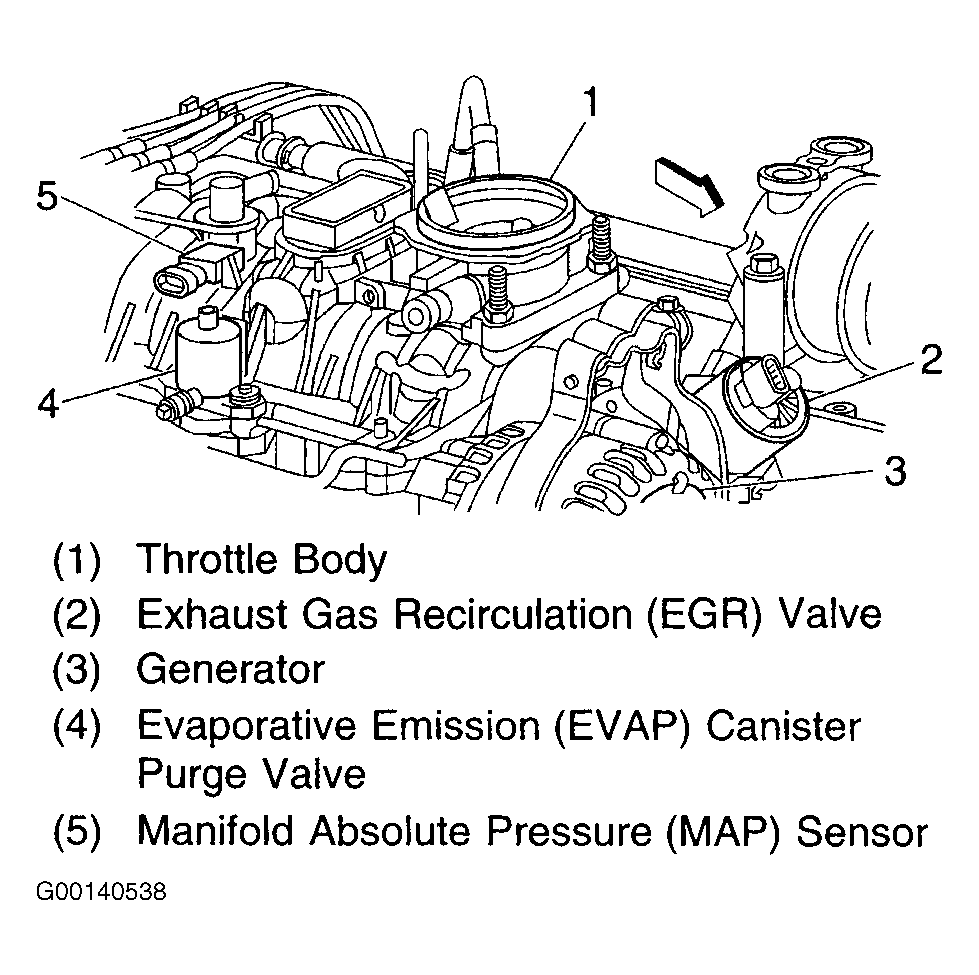

Fig 4: Locating EGR Valve, EVAP Purge Solenoid & Map Sensor

G00140538

Courtesy of GENERAL MOTORS CORP.

Fig 5: Locating EVAP Purge Solenoid, Ignition Coil & Ignition Control Module

G00028338

Courtesy of GENERAL MOTORS CORP.

Fig 6: Locating EVAP System Components

G00140507

Courtesy of GENERAL MOTORS CORP.

Fig 7: Locating Heated Oxygen Sensors (Light Duty)

G00140506

Courtesy of GENERAL MOTORS CORP.

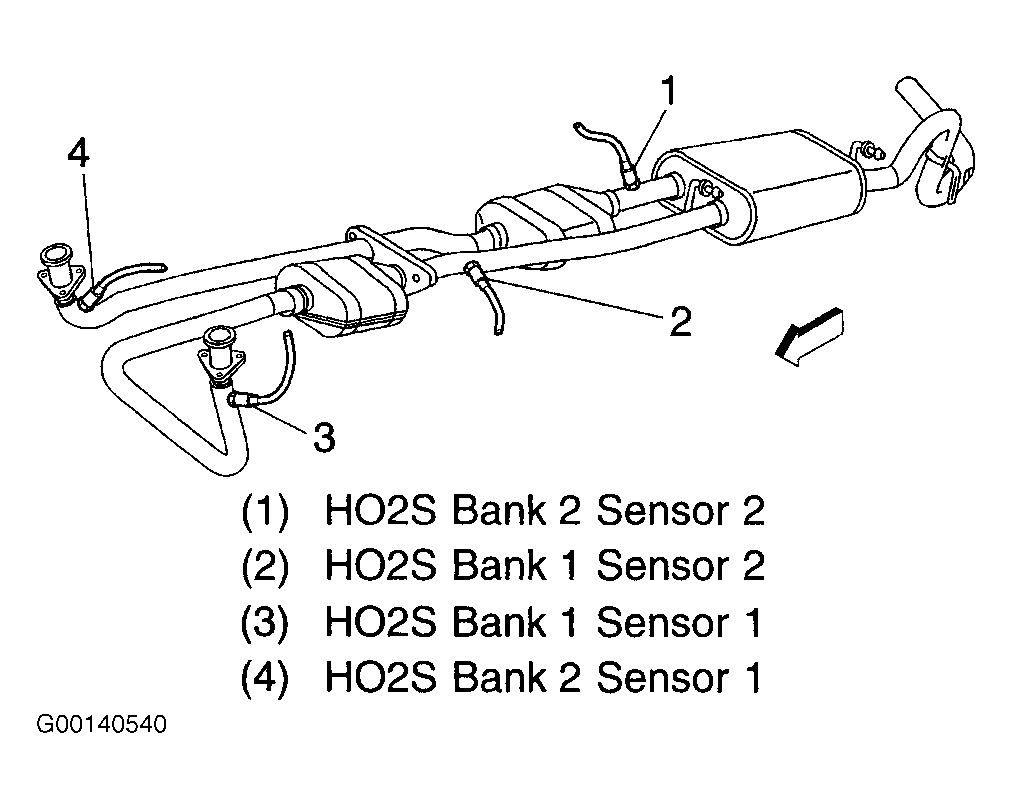

Fig 8: Locating Heated Oxygen Sensors (Heavy Duty)

G00140540

Courtesy of GENERAL MOTORS CORP.

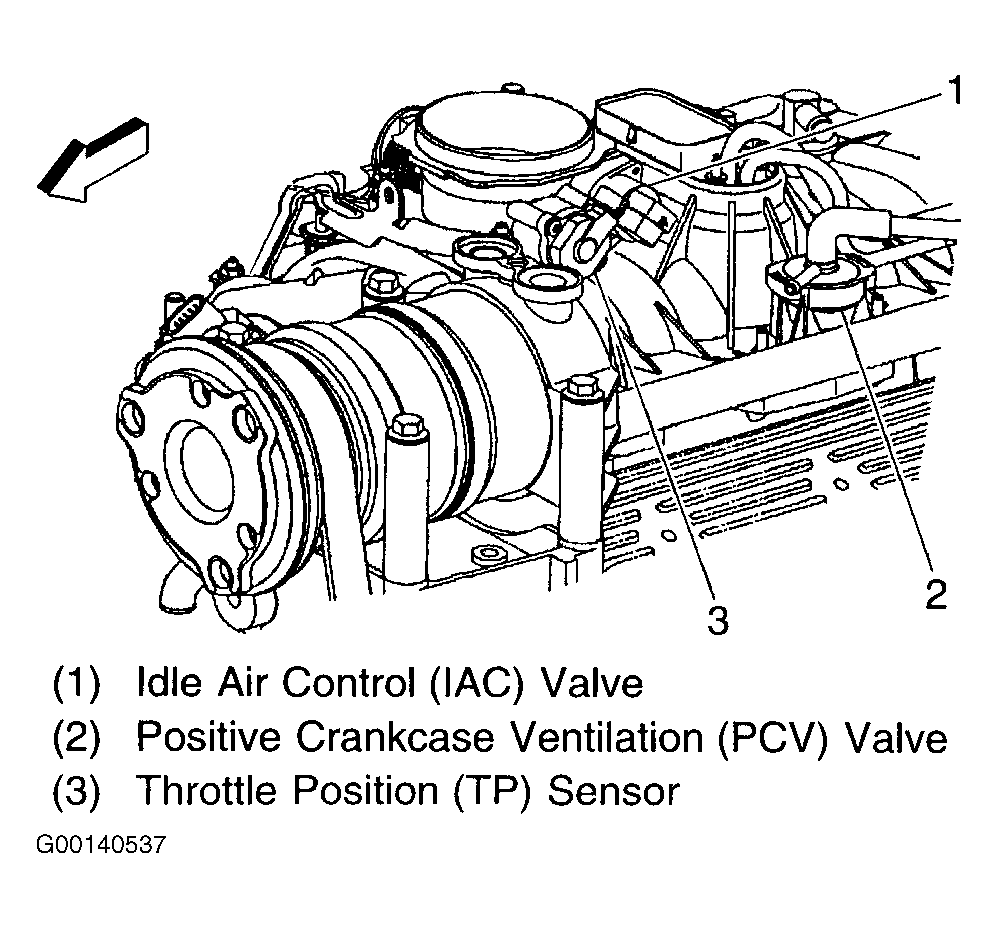

Fig 9: Locating IAC Valve & Throttle Position Sensor

G00140537

Courtesy of GENERAL MOTORS CORP.

Fig 10: Locating IAT & MAF Sensors

G00140505

Courtesy of GENERAL MOTORS CORP.
