Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Important: Have an assistant support the rear compartment lid before performing the following steps so the rear compartment lid does not fall down and cause personal injury. If an assistant is not available, remove the lid from the hinges.

Open the rear compartment.
With a grease pencil, mark the location of the torque rod (which hole in the hinge bracket).

Fig 1: Identifying Rear Compartment Torque Rod
Courtesy of GENERAL MOTORS CORP.
Use the J 39384-10 (6) in order to remove the torque rod (5) from the adjusting notch.

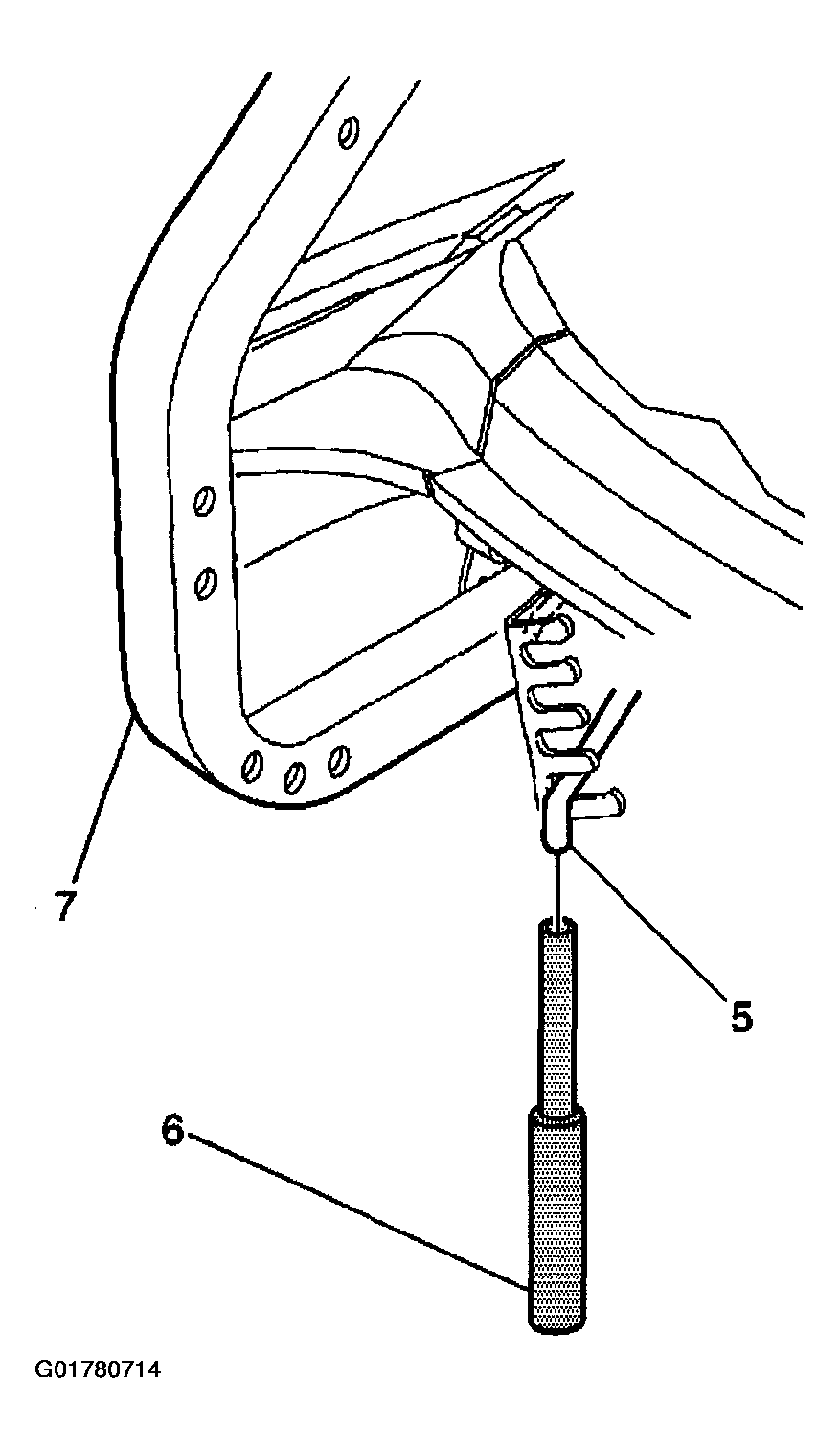

Fig 2: Removing Torque Rod From Adjusting Notch
Courtesy of GENERAL MOTORS CORP.
With the torque rod removed from the adjuster, push the rod out of the hinge arm.
Remove the torque rod (1) from the rear compartment lid hinge (4).

Fig 3: Removing Torque Rod From Rear Compartment Lid Hinge
Courtesy of GENERAL MOTORS CORP.
