Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Install the torque rod to the compartment lid hinge arm (4).

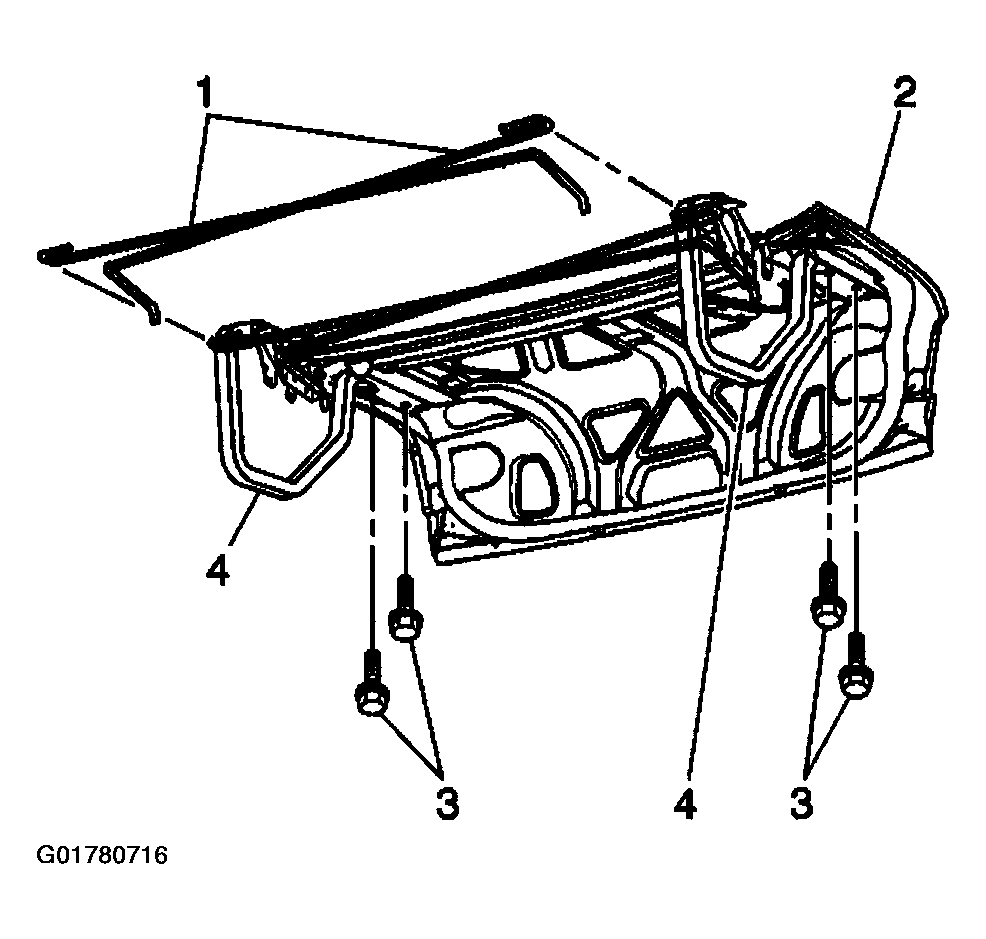

Fig 1: Installing Torque Rod To Compartment Lid Hinge
Courtesy of GENERAL MOTORS CORP.
Use the J 39384-10 (6) in order to engage the torque rod (5) to the adjusting notch.

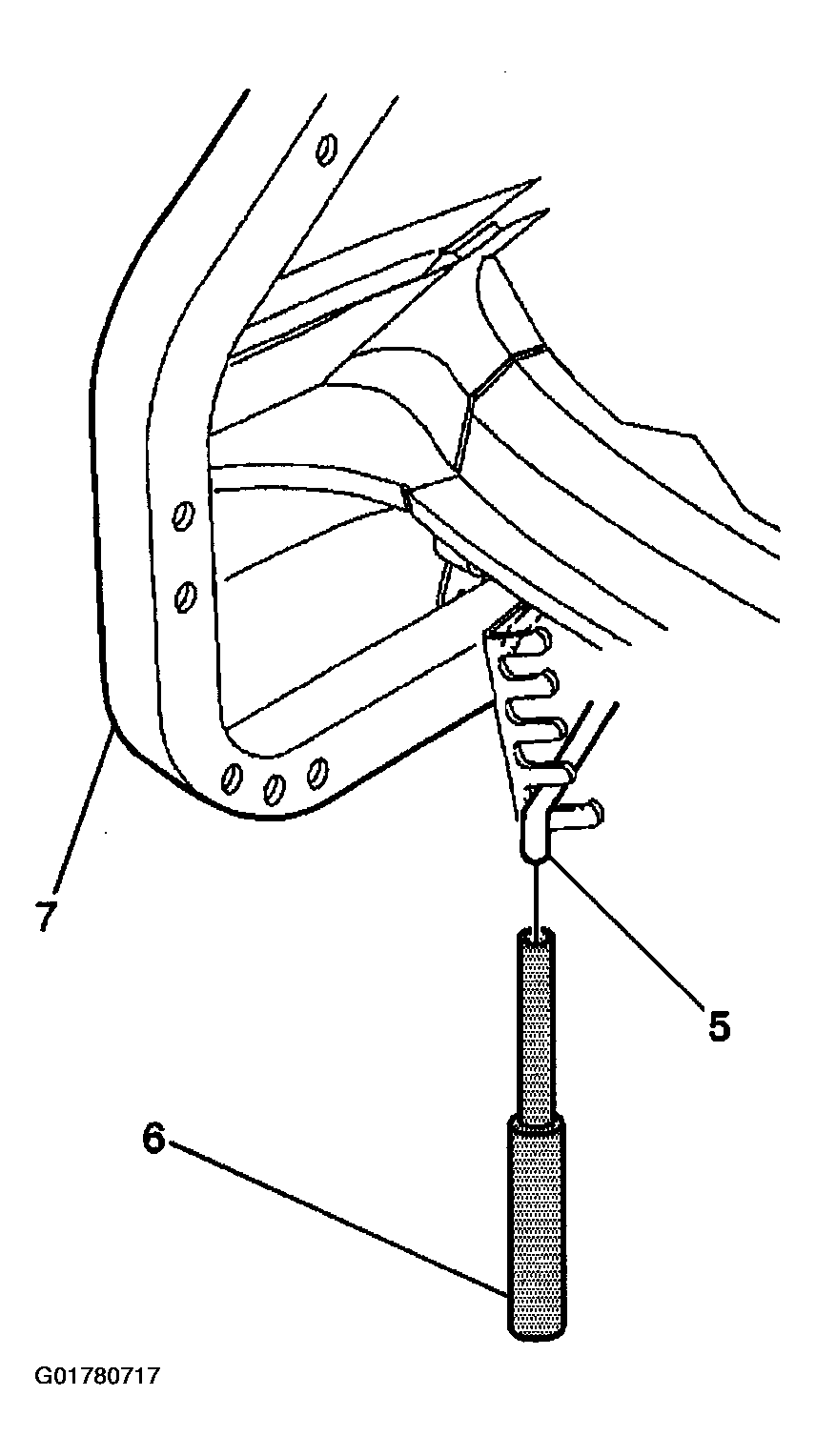

Fig 2: Engaging Torque Rod To Adjusting Notch
Courtesy of GENERAL MOTORS CORP.
Adjust the operating effort by adjusting the rear compartment torque rods.
Use the following procedure:
1. 3.1. Position the end of the torque rod (5) to a lower adjusting notch in order to obtain the following results:
  - Increase the amount of effort needed in order to raise the compartment lid.
  - Decrease the amount of effort needed in order to close the compartment lid.
2. 3.2. Position the end of the torque rod (5) to a higher adjusting notch in order to obtain the following results:
  - Decrease the amount of effort needed in order to raise the compartment lid.
  - Increase the amount of effort needed in order to close the compartment lid.

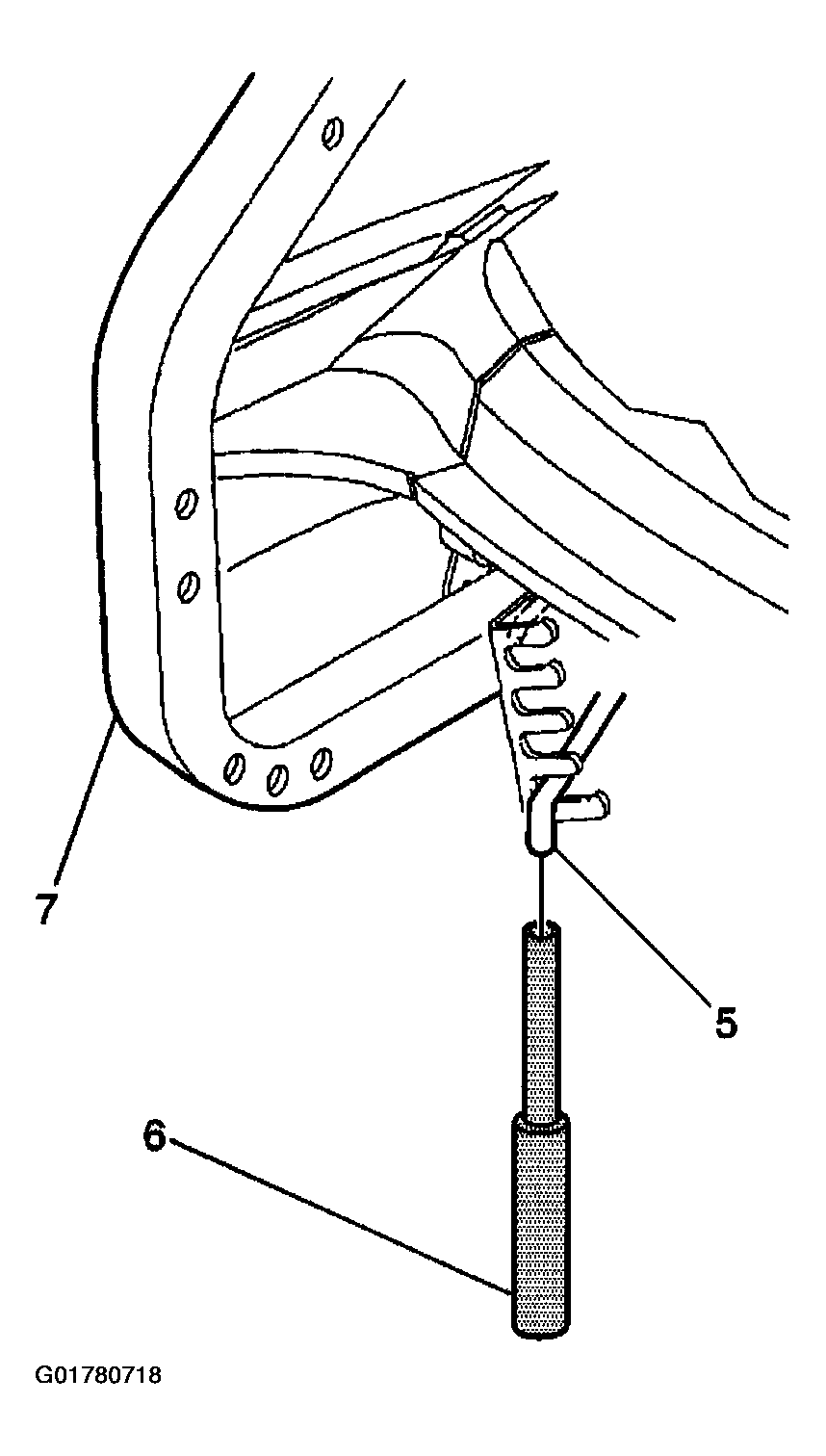

Fig 3: Adjusting Rear Compartment Torque Rods
Courtesy of GENERAL MOTORS CORP.
