Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use of harsh chemicals when cleaning can damage exterior lamps. Suggested cleaners are a mild soap and water, or Varnish Makers and Painters (VM&P) Naptha. VM&P Naptha is a specific type of naptha and should not be substituted by any other naptha.
  1. Open the rear compartment.
  2. Disconnect the high-mount stop lamp electrical connector from the rear compartment lid harness.
  3. Remove the rear compartment lid spoiler nuts from the spoiler.

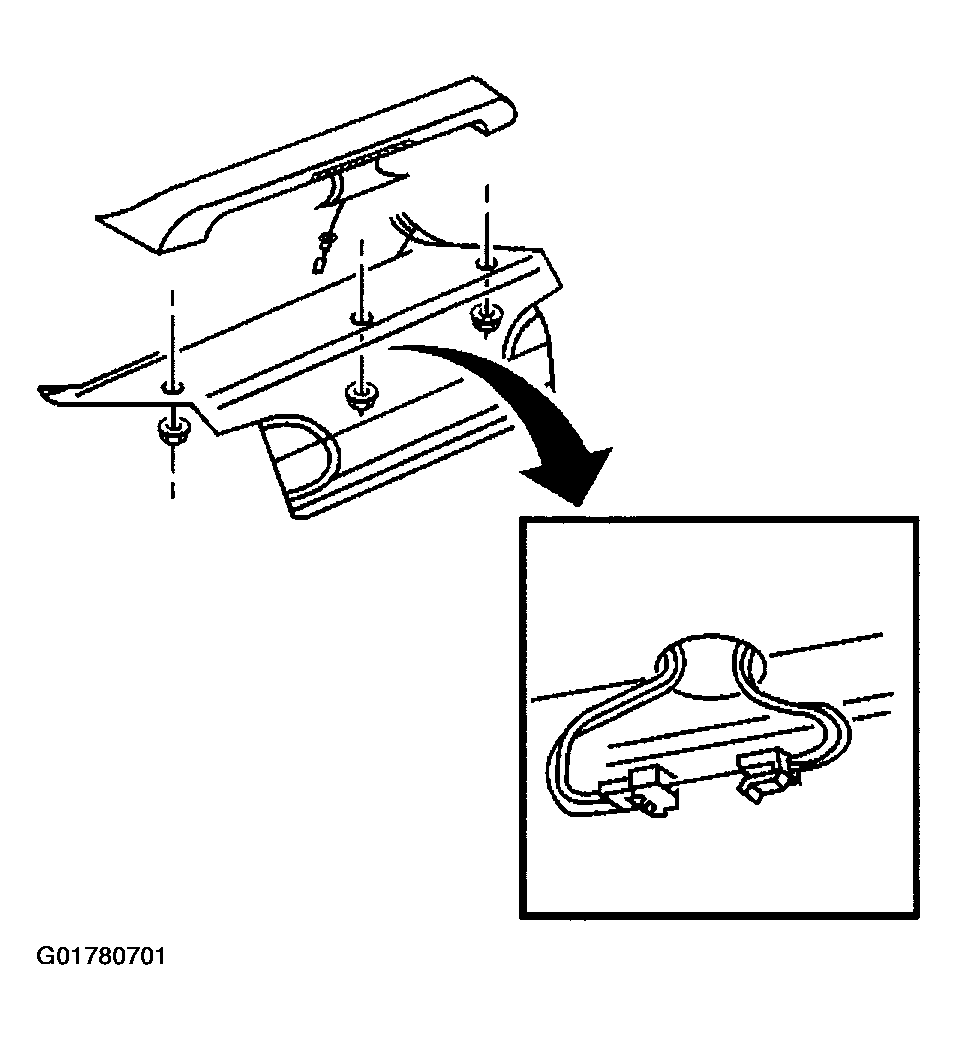

    Fig 1: Disconnecting High-Mount Stop Lamp Electrical Connector
    G01780701Courtesy of GENERAL MOTORS CORP.
  4. Use the J 25070  to apply heat to the rear spoiler mounting locations.

    Apply heat 152 mm (6 in) from the surface using a circular motion for about 30 seconds.

  5. Use a small flat-bladed tool to lift the rear spoiler from the rear compartment lid being careful not to damage paint.
  6. Remove the rear spoiler and wiring harness from the rear compartment lid.
  7. Remove the high-mount stop lamp screws from the rear spoiler.
  8. Remove the high-mount stop lamp from the rear spoiler.
  9. Use 3M™ scotch brite molding adhesive remover disk 3M™ P/N 07501 (or equivalent) to clean the rear spoiler adhesive from the rear compartment lid and/or the rear spoiler.
  10. Use Varnish Makers and Painters (VM&P) naphtha or equivalent to clean the body panel.
