Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the high-mount stop lamp to the rear spoiler.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the high-mount stop lamp screws to the rear spoiler.

    Tighten

    Tighten the high-mount stop lamp screws to 2 N.m (18 lb in).

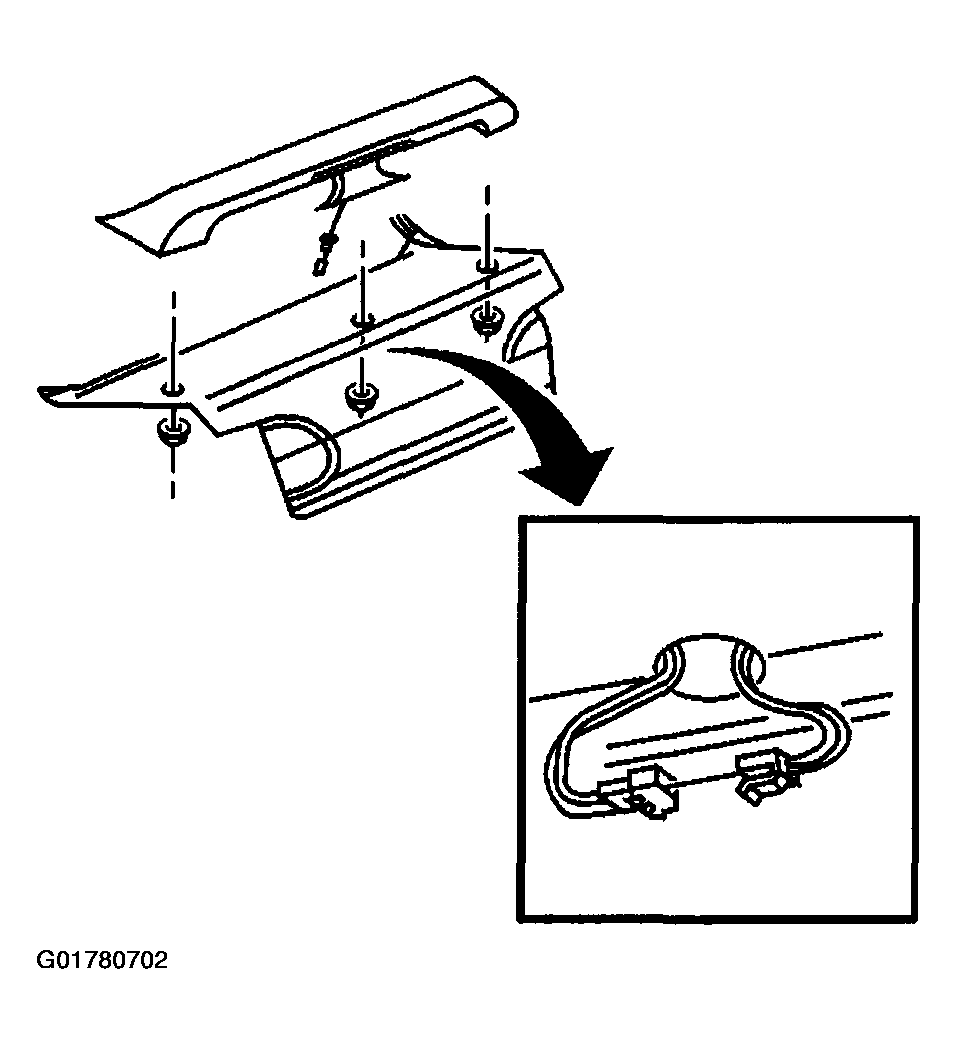

    3. Fig 1: Connecting High-Mount Stop Lamp Electrical Connector
    G01780702Courtesy of GENERAL MOTORS CORP.
  3. Use the J 25070  to heat the rear spoiler mounting surfaces.
  4. Remove the backing from adhesive on the rear spoiler mounting locations.
  5. Route the high-mount stop lamp wiring harness through the rear compartment lid.
  6. Position the studs of the rear spoiler into the clearance holes of the rear compartment lid.

    Important:  Do not touch the adhesive backing.

  7. Apply even pressure to the rear spoiler to allow for proper adhesion to the rear compartment lid.
  8. Install the rear compartment lid spoiler nuts.

    Tighten

    Tighten the nuts to 5 N.m (44 lb in).

  9. Connect the high-mounted stop lamp electrical connector.
  10. Close the rear compartment.
