Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER .
  2. Pull back the rear compartment trim from the right rear corner in order to expose the pressure relief valve.
  3. Disengage the pressure relief valve tabs from the inside of the rear compartment.

    Remove the pressure relief valve (1) from the quarter panel.

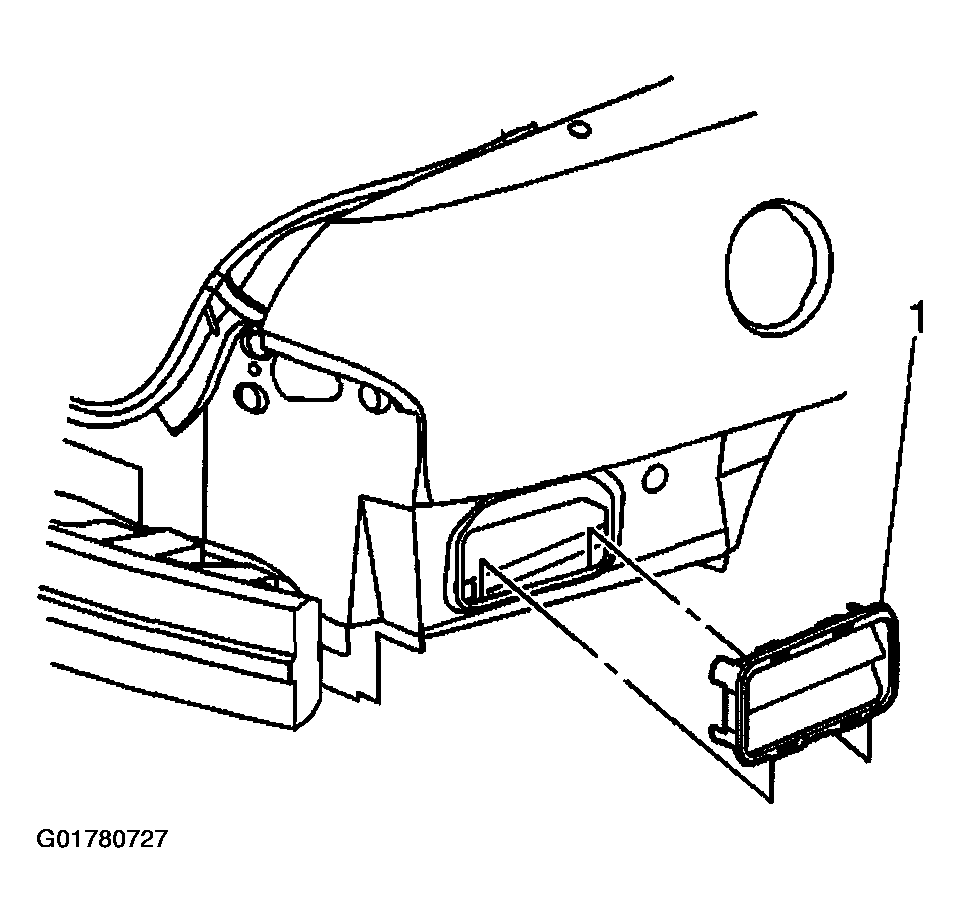

    Fig 1: Removing Pressure Relief Valve
    G01780727Courtesy of GENERAL MOTORS CORP.
