Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the pressure relief valve (1) to the quarter panel.

    Press inward on the pressure relief valve to fully engage the retaining tabs.

  2. Install the rear compartment trim to its original position.
  3. Install the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER .

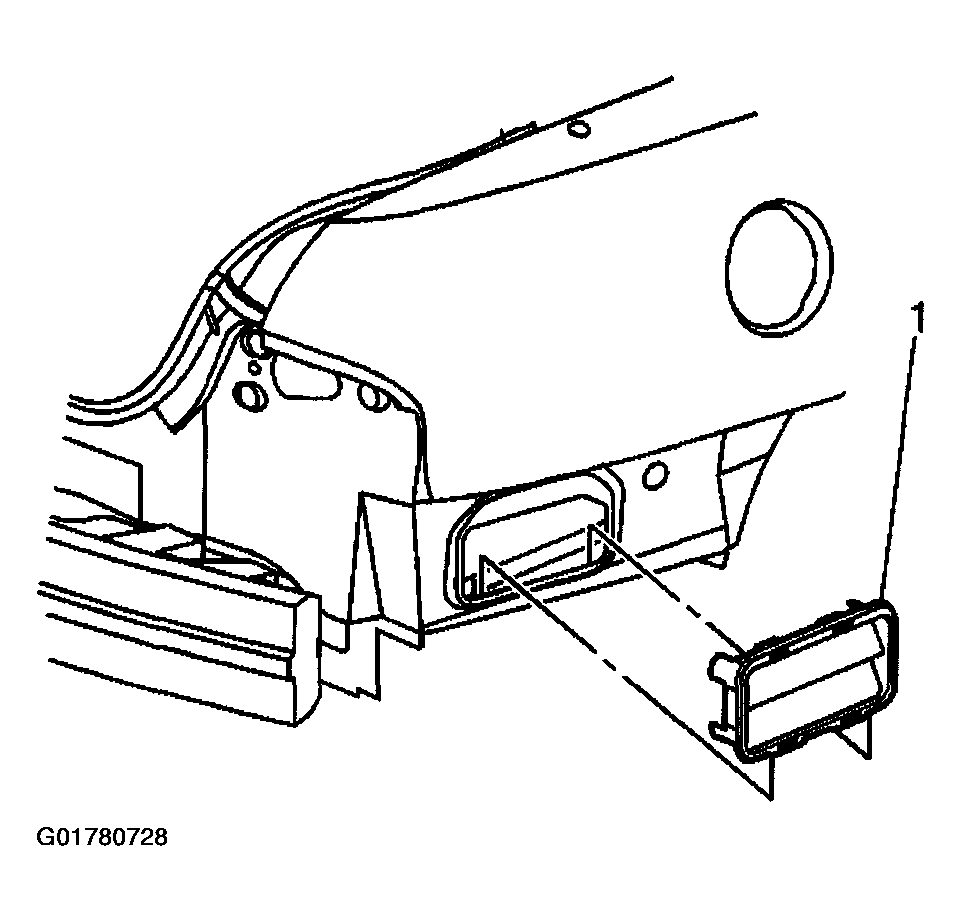

    Fig 1: Installing Pressure Relief Valve
    G01780728Courtesy of GENERAL MOTORS CORP.
