Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Remove the rear compartment lid outer bumper (1) by rotating it counterclockwise.
  3. Remove the rear compartment lid side bumper by rotating it counterclockwise.

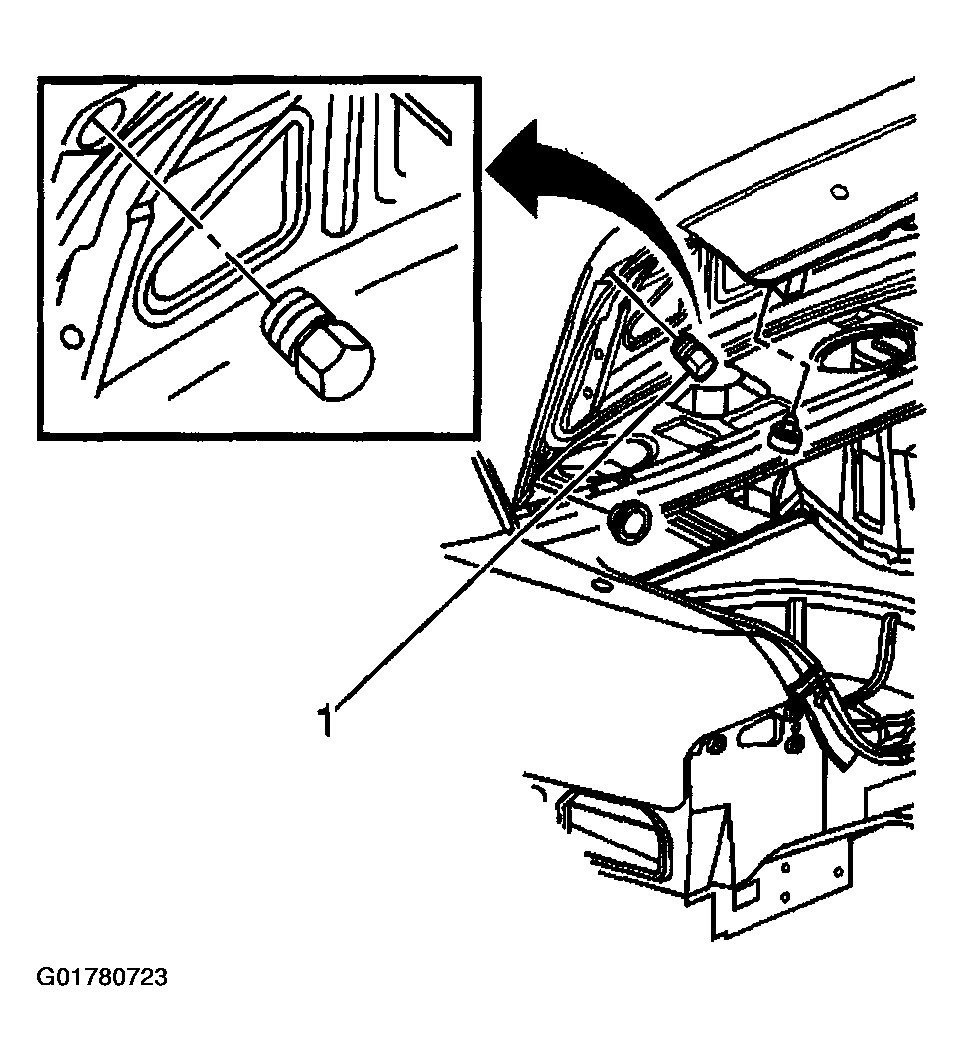

    Fig 1: Removing Rear Compartment Lid Overslam Bumper
    G01780723Courtesy of GENERAL MOTORS CORP.
