Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear compartment lid side bumper to the rear compartment lid by rotating it clockwise.
  2. Install the rear compartment lid outer bumper (1) to the rear compartment lid by rotating it clockwise.
  3. Rotate the rear compartment lid bumpers counterclockwise/clockwise to adjust the height of the rear compartment lid until it is flush with the quarter panel.
  4. Close the rear compartment.

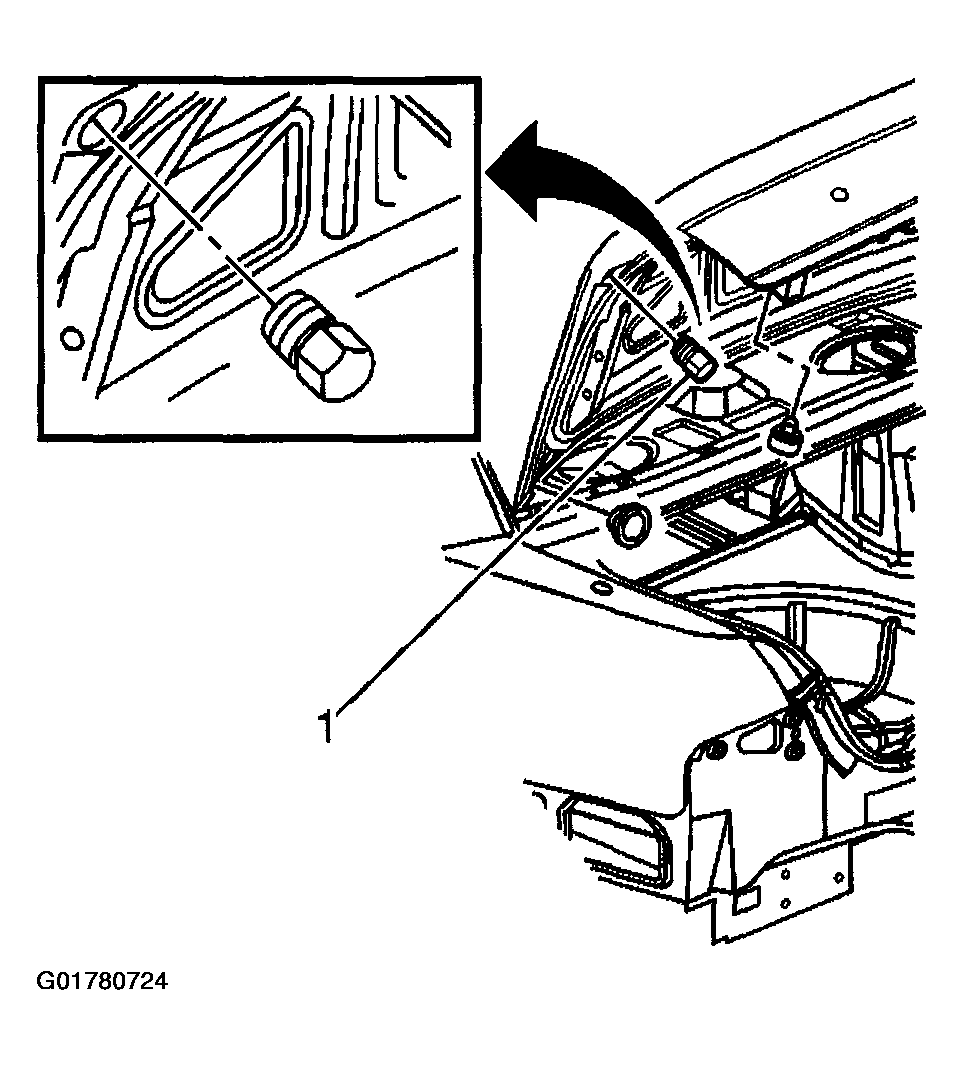

    Fig 1: Installing Rear Compartment Lid Overslam Bumper
    G01780724Courtesy of GENERAL MOTORS CORP.
