Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear compartment lid applique. Refer to Compartment Lid Applique Replacement - Rear .
  2. Remove the rear compartment lid lock cable from the lock cylinder with a flat bladed tool.
  3. Drill out the rivets that retain the lock cylinder to the rear compartment lid.
  4. Remove the lock cylinder and gasket from the rear compartment lid.

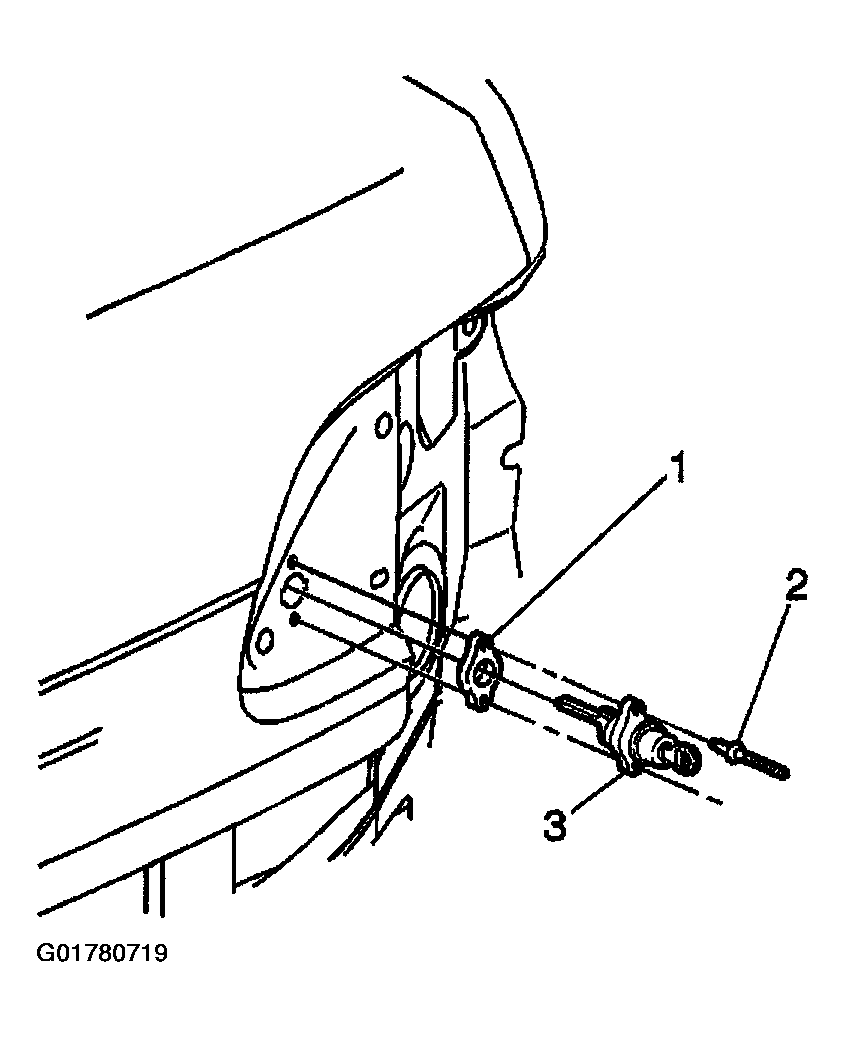

    Fig 1: Removing Rear Compartment Lid Lock Cylinder
    G01780719Courtesy of GENERAL MOTORS CORP.
