Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the latch assembly (3) to the alignment marks on the rear compartment lid.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the rear compartment lid latch bolts (7) to the rear compartment lid.

    Tighten

    Tighten the bolts to 11 N.m (97 lb in).

  3. Install the remote release cable (1) to the lock release box, if equipped.
  4. Connect the electrical connector to the rear compartment lid latch, if equipped.
  5. Press the rear compartment lid latch cable (8) onto the lock cylinder until the retainer tabs are fully seated.
  6. Close the rear compartment.

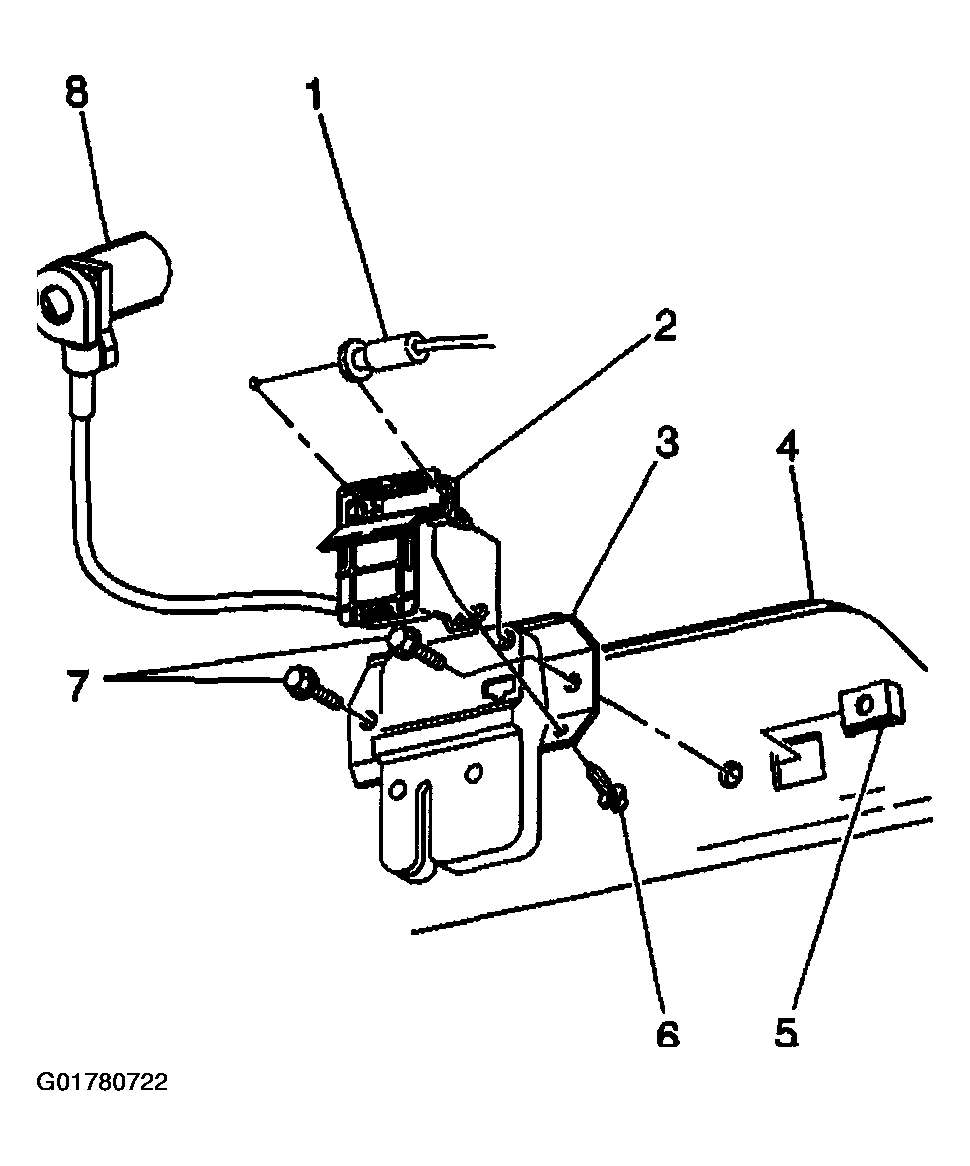

    Fig 1: Identifying Rear Compartment Lid Latch Components
    G01780722Courtesy of GENERAL MOTORS CORP.
