Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear compartment lid. Refer to Compartment Lid Replacement - Rear .
  2. Remove the torque rods. Refer to Torque Rod Replacement - Rear Compartment Lid .
  3. Remove the rear window panel trim. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .
  4. Remove the sound insulator to access the hinge bolts.

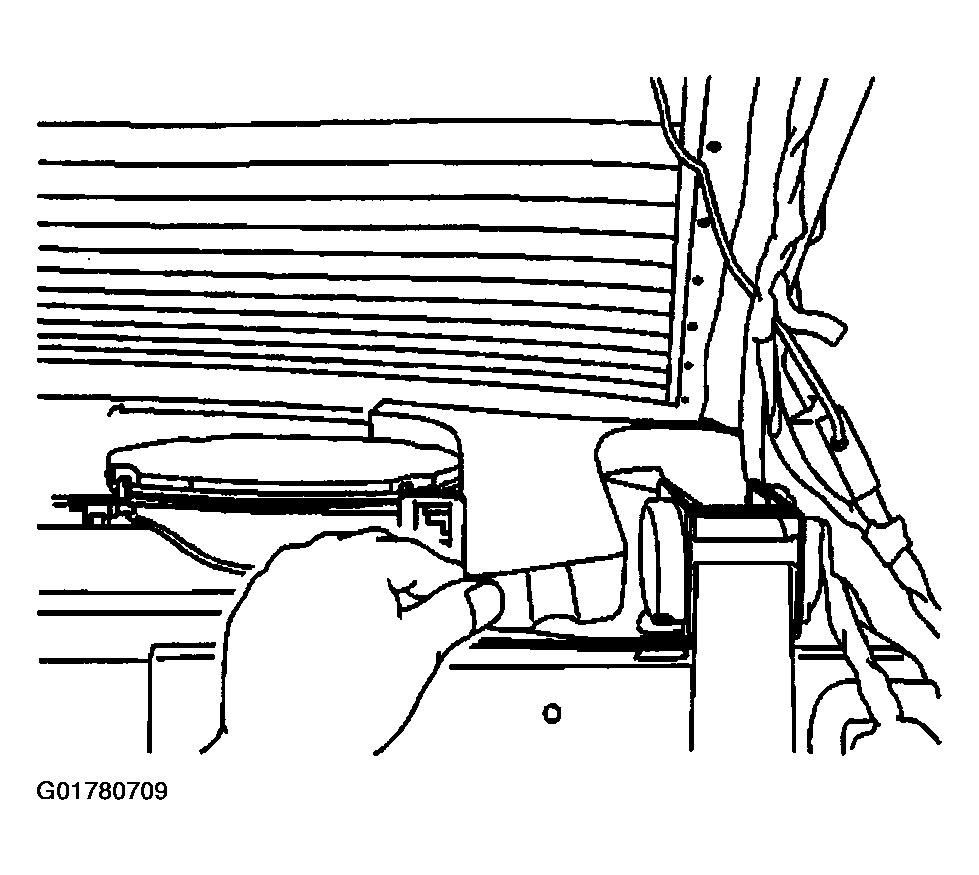

    Fig 1: Removing Sound Insulator
    G01780709Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear compartment lid hinge bolts (2) from the hinge.
  6. Remove the rear compartment lid hinge (1) from the vehicle.

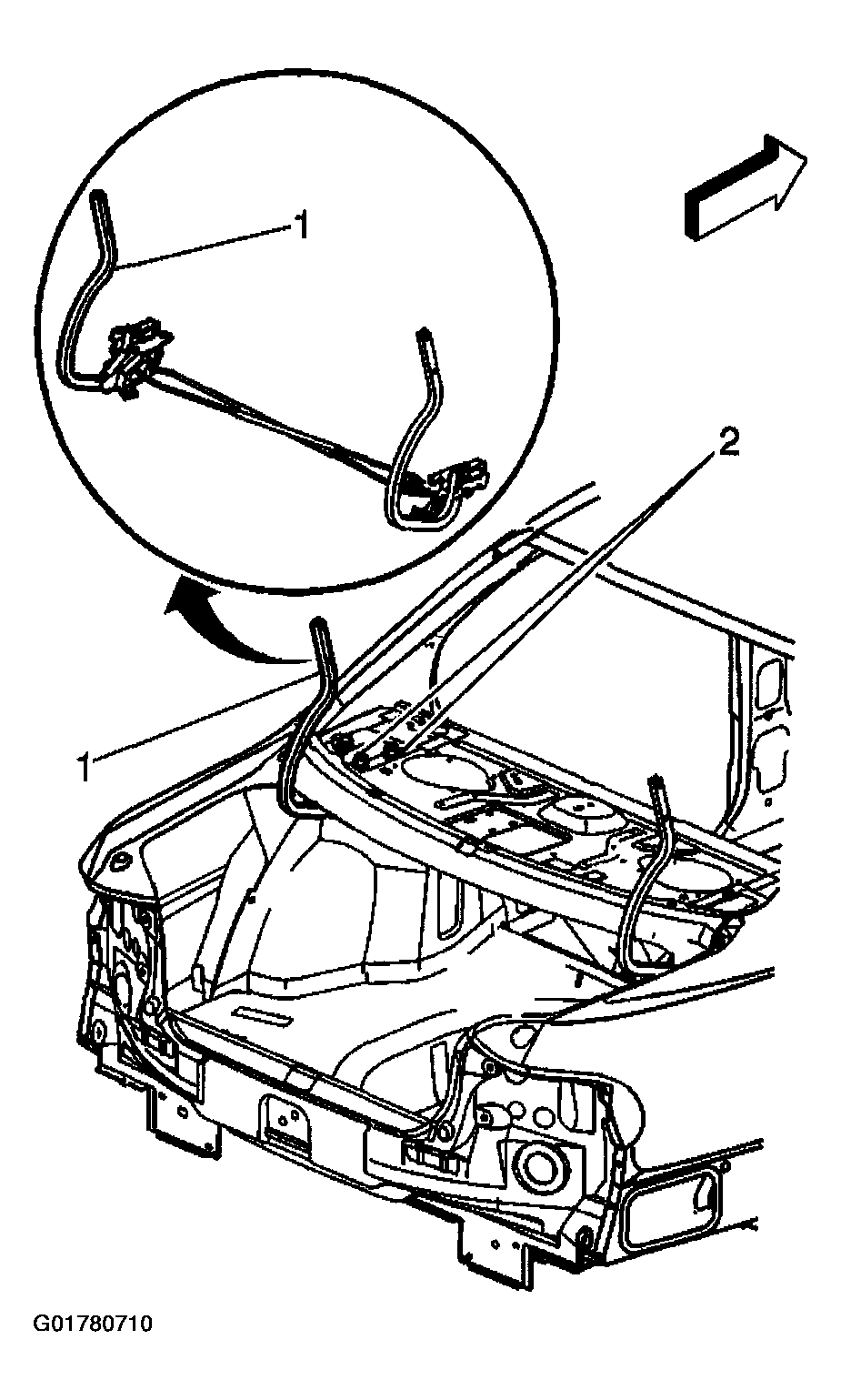

    Fig 2: Removing Rear Compartment Lid Hinge
    G01780710Courtesy of GENERAL MOTORS CORP.
