Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear compartment lid hinge (1) to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the rear compartment lid hinge bolts (2) to the hinge.

    Tighten

    Tighten the bolts to 11 N.m (97 lb in).

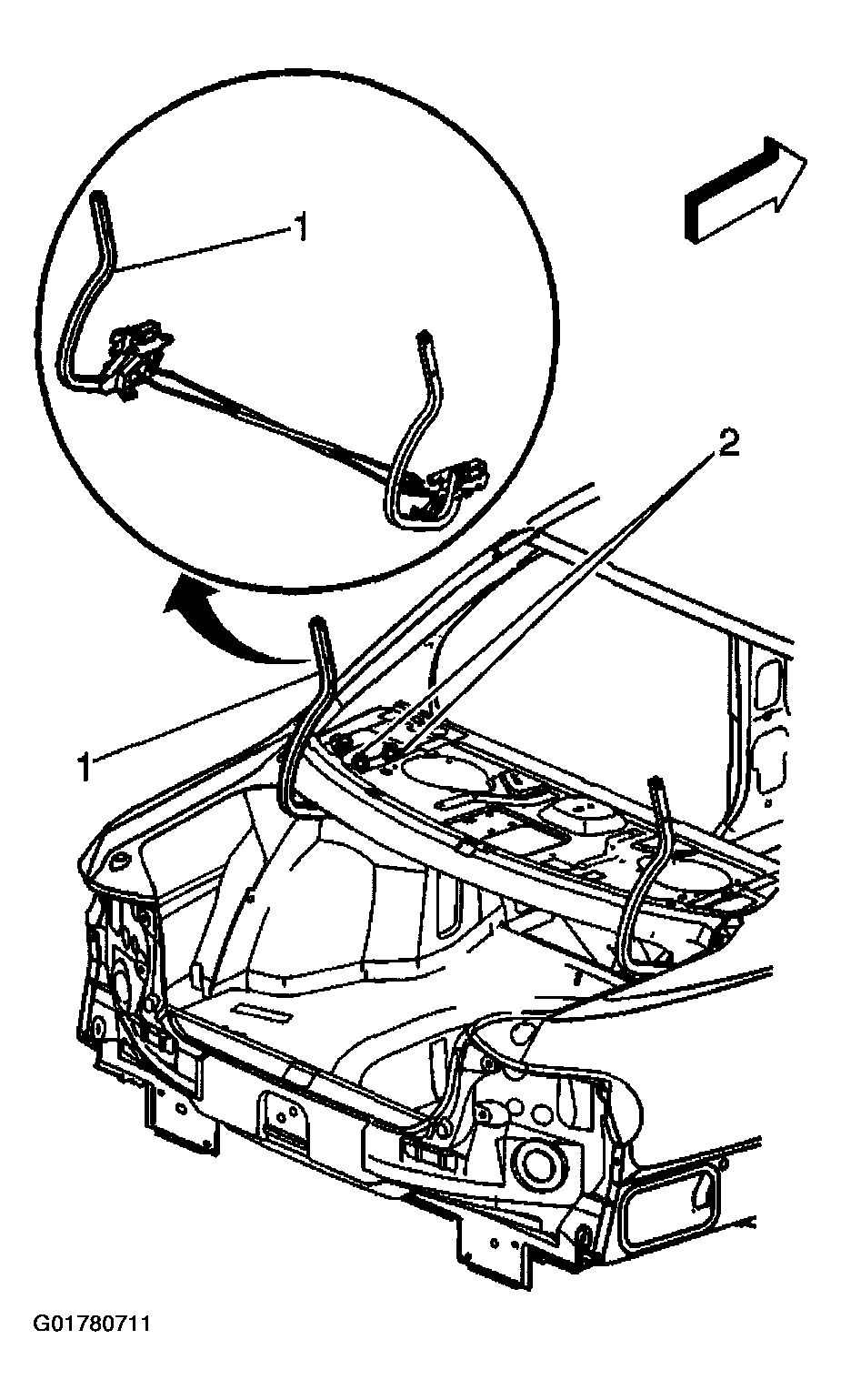

    Fig 1: Installing Rear Compartment Lid Hinge
    G01780711Courtesy of GENERAL MOTORS CORP.
  3. Install the sound insulators.

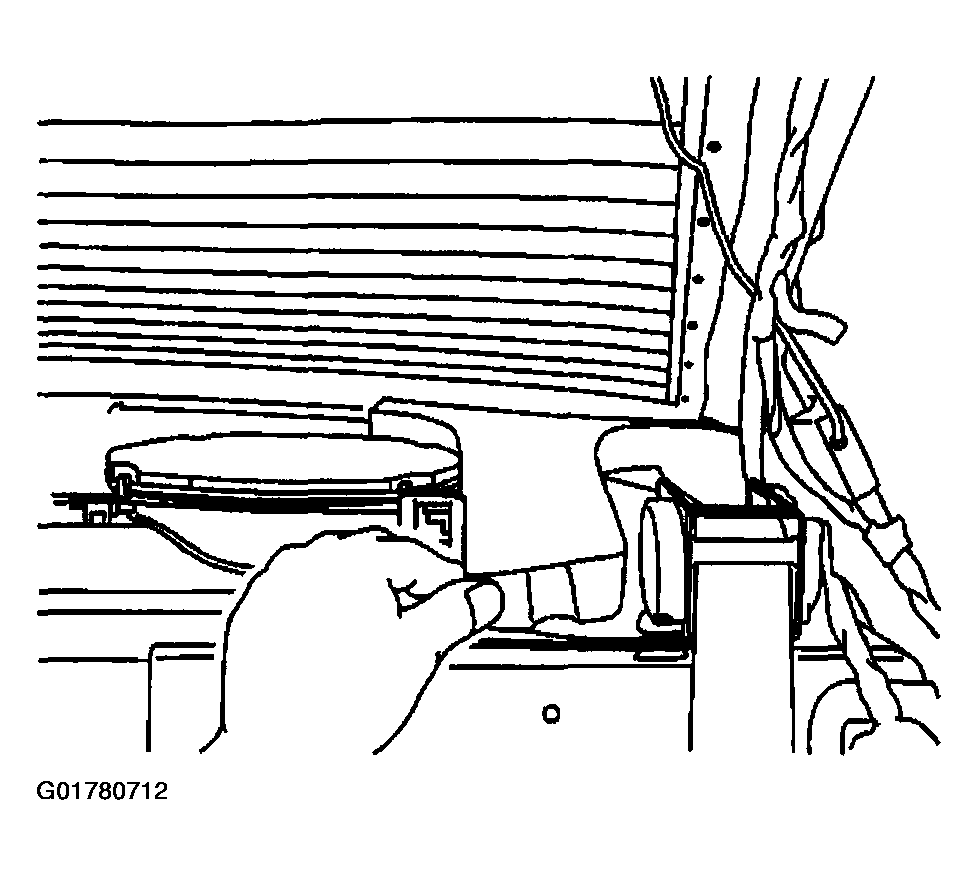

    4. Fig 2: Installing Sound Insulators
    G01780712Courtesy of GENERAL MOTORS CORP.
  4. Install the rear window panel trim. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .
  5. Install the torque rods. Refer to Torque Rod Replacement - Rear Compartment Lid .
  6. Install the rear compartment lid. Refer to Compartment Lid Replacement - Rear .
