Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the fuel tank filler door.
  2. Remove the fuel tank filler cap from the filler neck.
  3. Remove the screws from the fuel tank filler pocket.
  4. Remove the fuel tank filler pocket (1) by disengaging the retaining lugs from the quarter panel.

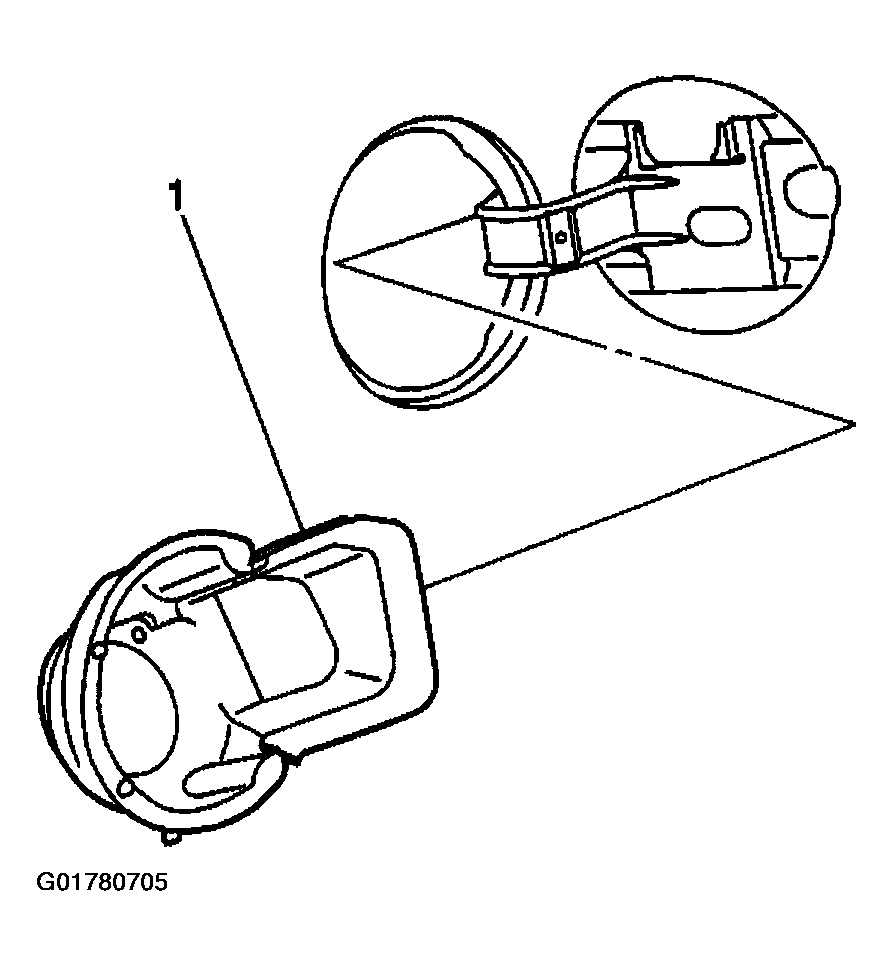

    Fig 1: Removing Fuel Filler Pocket
    G01780705Courtesy of GENERAL MOTORS CORP.
