Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fuel tank filler pocket (1) to the quarter panel.

    Push the fuel tank filler pocket (1) inward to engage the retaining lugs.

    CAUTION: Refer to FASTENER NOTICE .
  2. Install the fuel tank filler pocket screws to the fuel tank filler pocket (1).

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the fuel tank filler cap to the filler neck.
  4. Close the fuel tank filler door.

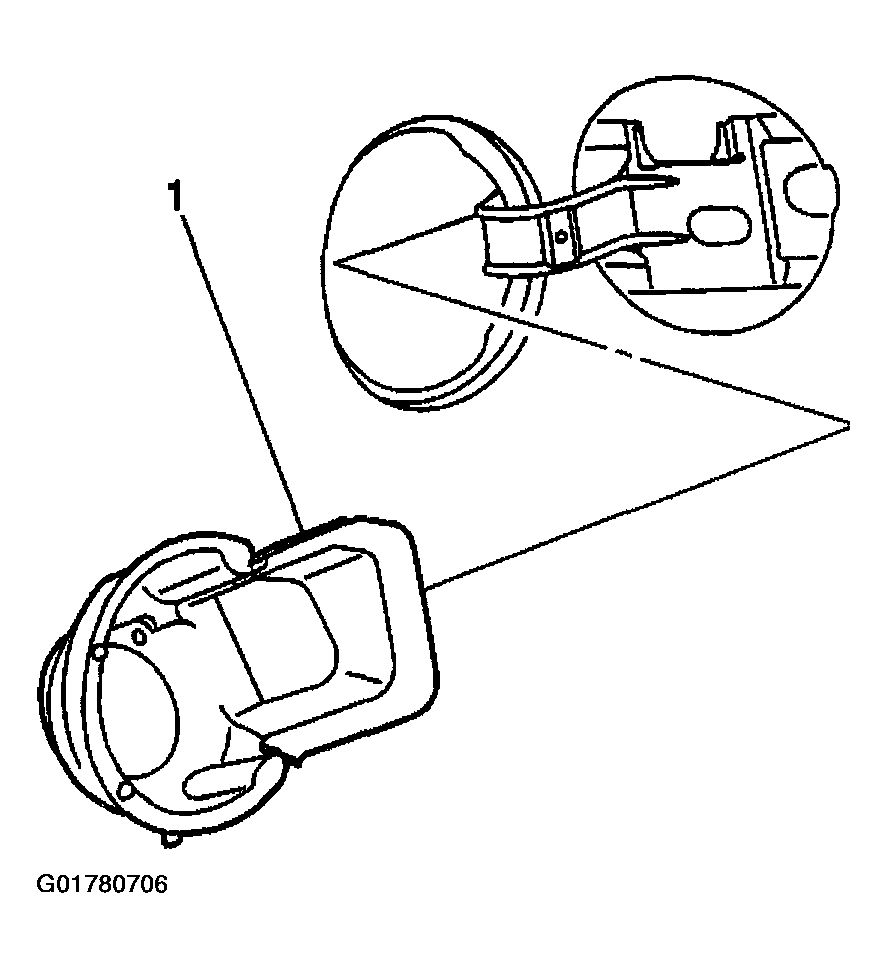

    Fig 1: Installing Fuel Filler Pocket
    G01780706Courtesy of GENERAL MOTORS CORP.
