Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the fuel tank filler door (1) to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the fuel tank filler door screws (2).

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the gas cap tether to the fuel tank filler door.

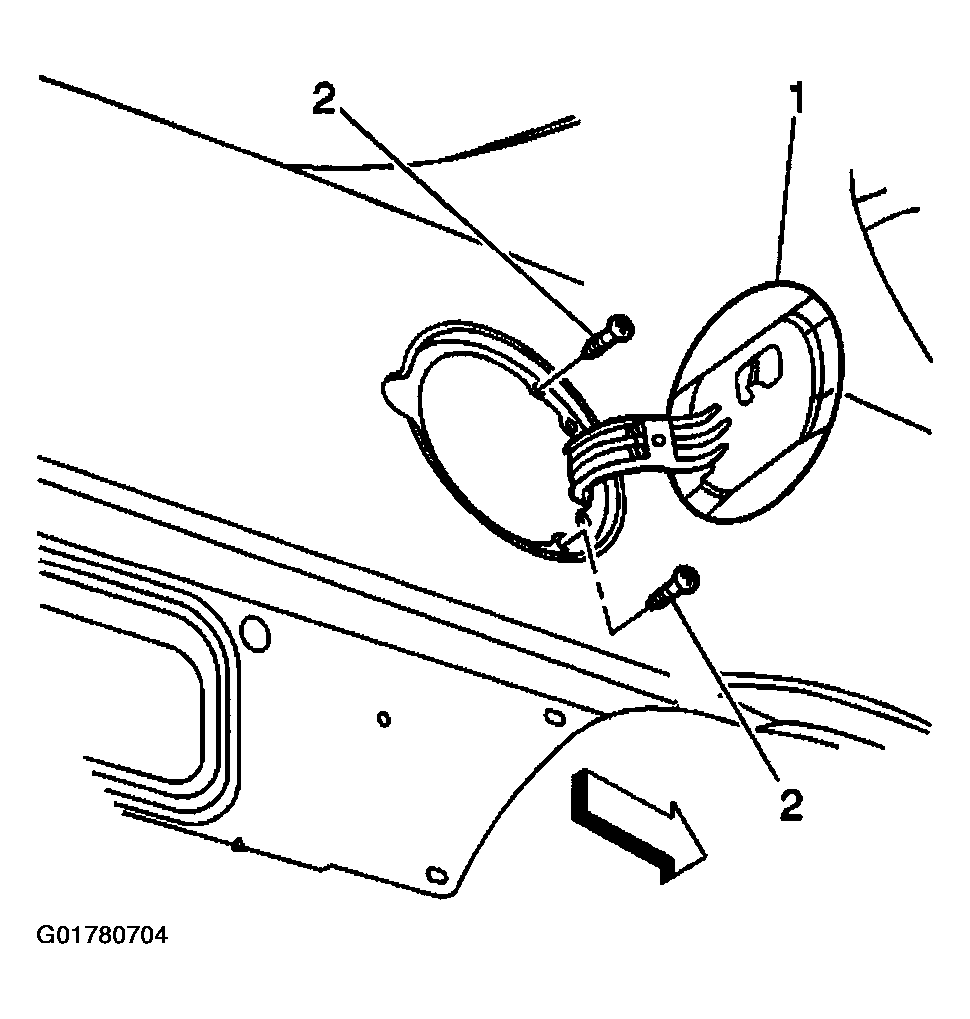

    Fig 1: Installing Fuel Filler Door
    G01780704Courtesy of GENERAL MOTORS CORP.
