Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sill trim plate from the rear compartment. Refer to Compartment Sill Plate Replacement - Rear .
  2. Remove the spare tire cover from the rear compartment.
  3. Remove the convenience net retainers, if equipped.
  4. Remove the convenience net, if equipped.
  5. Remove the rear compartment trim panel retainers (2).

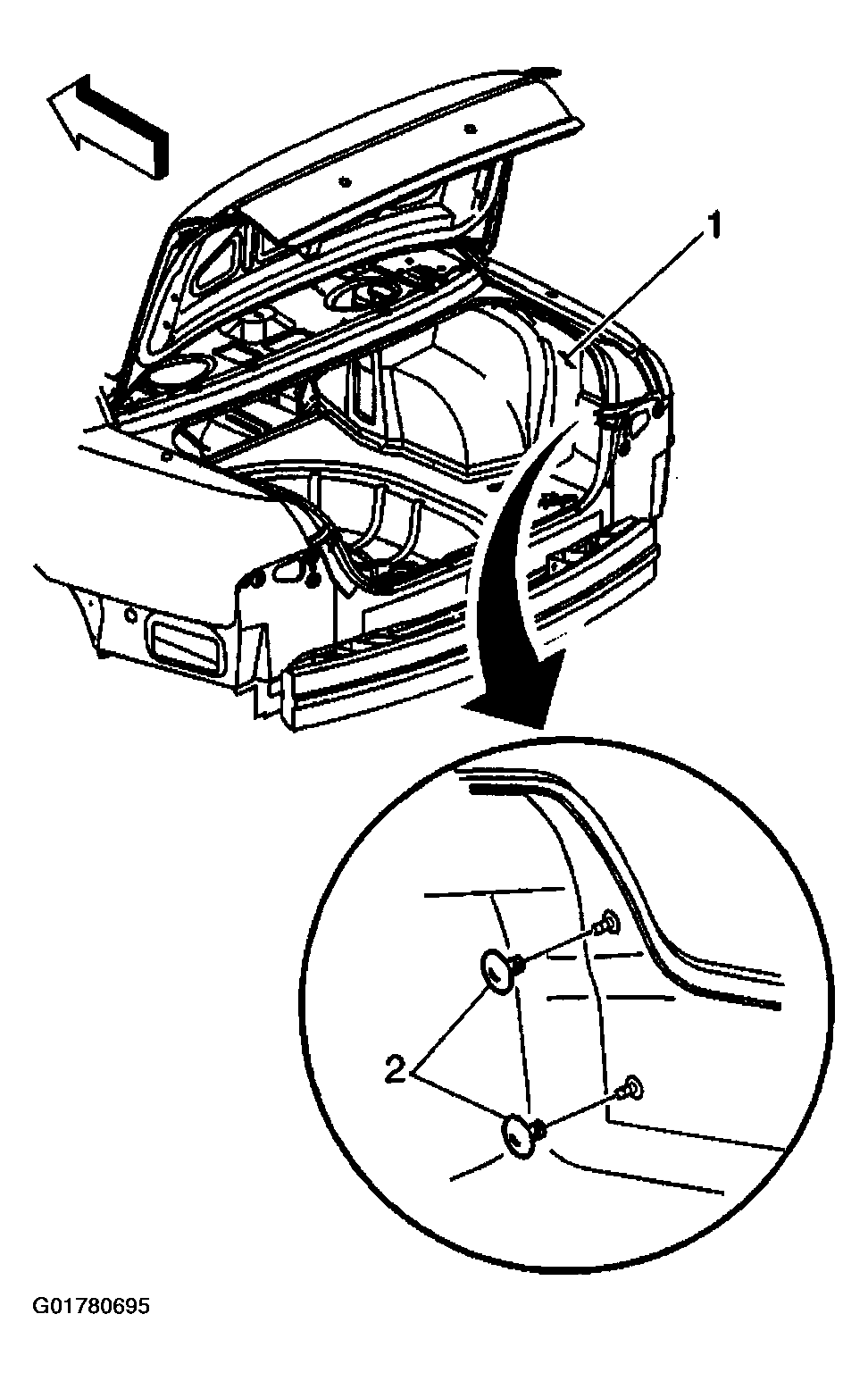

    Fig 1: Removing Rear Compartment Trim Panel Retainers
    G01780695Courtesy of GENERAL MOTORS CORP.
  6. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR .
  7. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT -- REAR .

    Important:  The rear compartment trim panel is a two-piece molded unit.

  8. Fold the left section of the rear compartment trim panel toward the center of the compartment, and remove the trim panel.
  9. Fold the right section of the rear compartment trim panel toward the center of the compartment, and remove the trim panel.

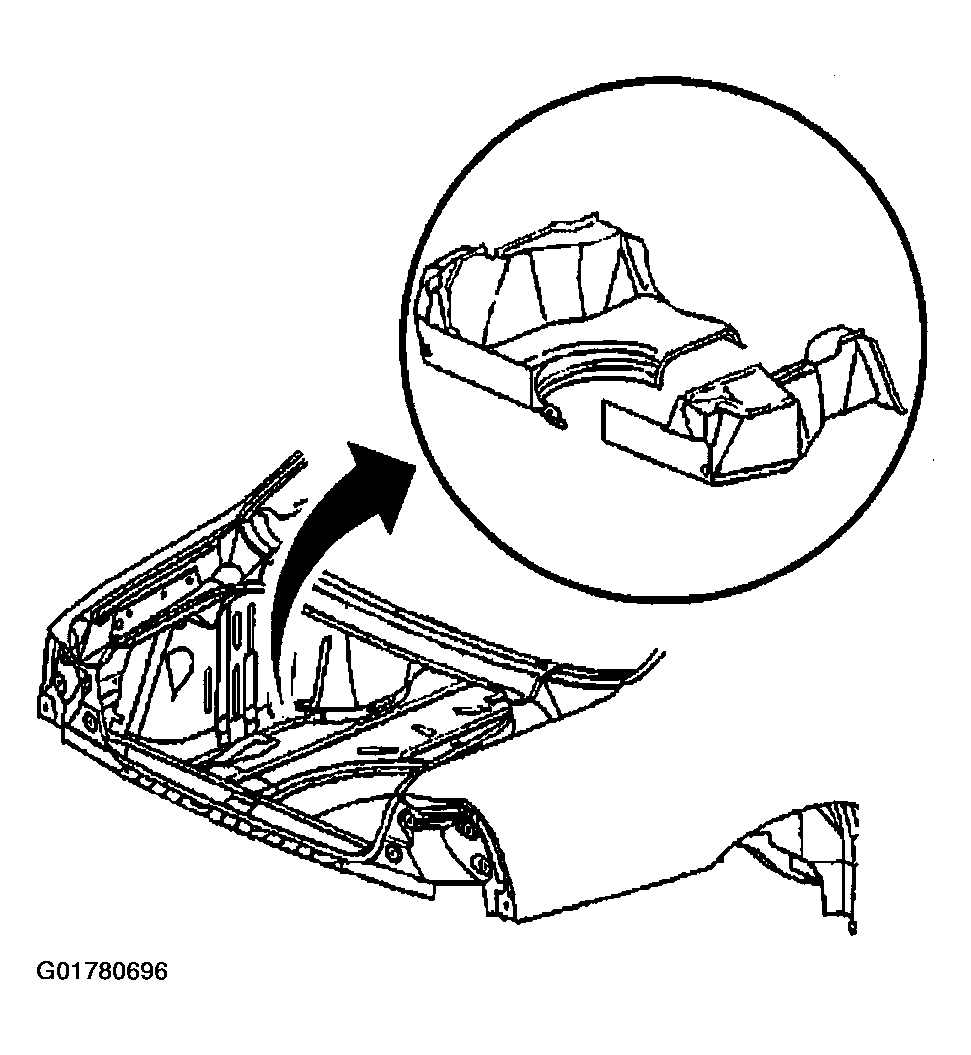

    Fig 2: Removing Rear Compartment Trim Panel
    G01780696Courtesy of GENERAL MOTORS CORP.
