Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the right trim panel into the rear compartment, and install the trim panel to the original position.
  2. Position the left trim panel into the rear compartment, and install the trim panel to the original position.
  3. Install the rear seat back. Refer to SEAT BACK REPLACEMENT -- REAR .
  4. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR .

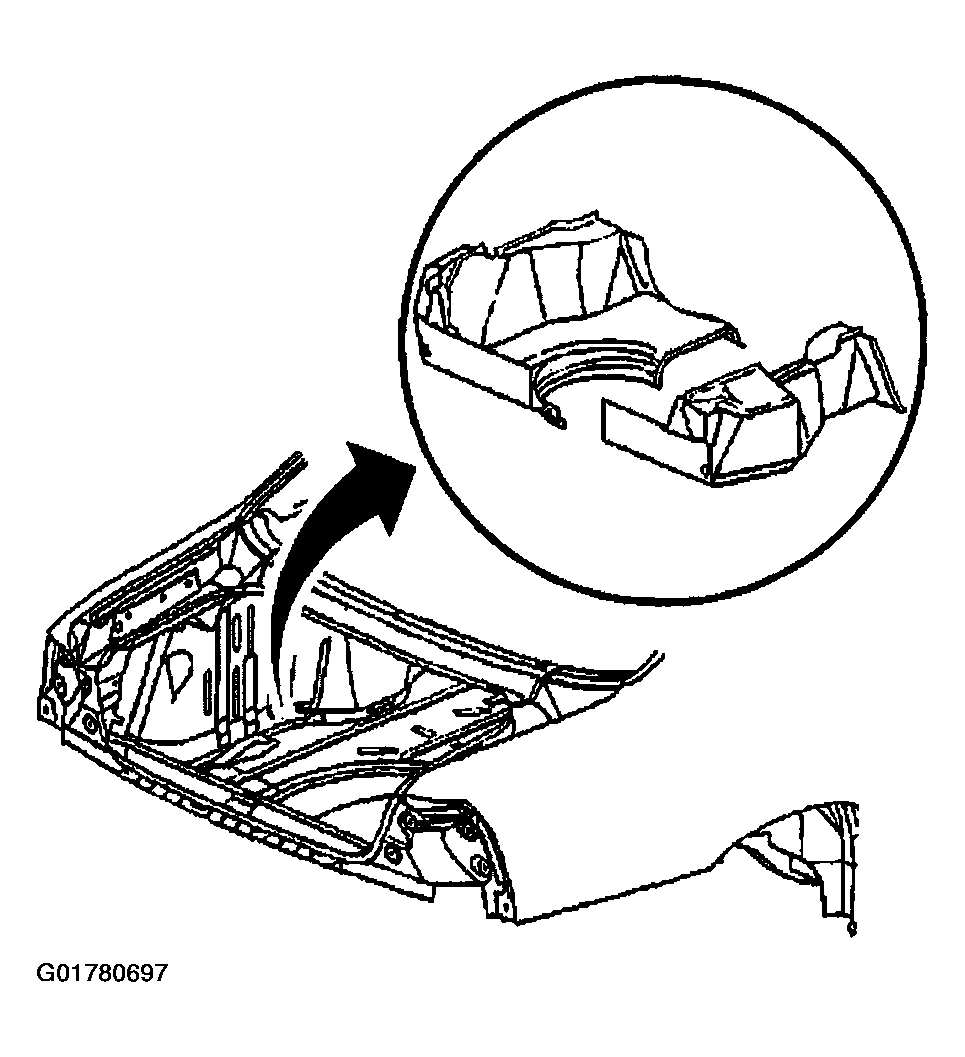

    Fig 1: Installing Rear Compartment Trim Panel
    G01780697Courtesy of GENERAL MOTORS CORP.
  5. Install the rear compartment trim panel retainers (2).

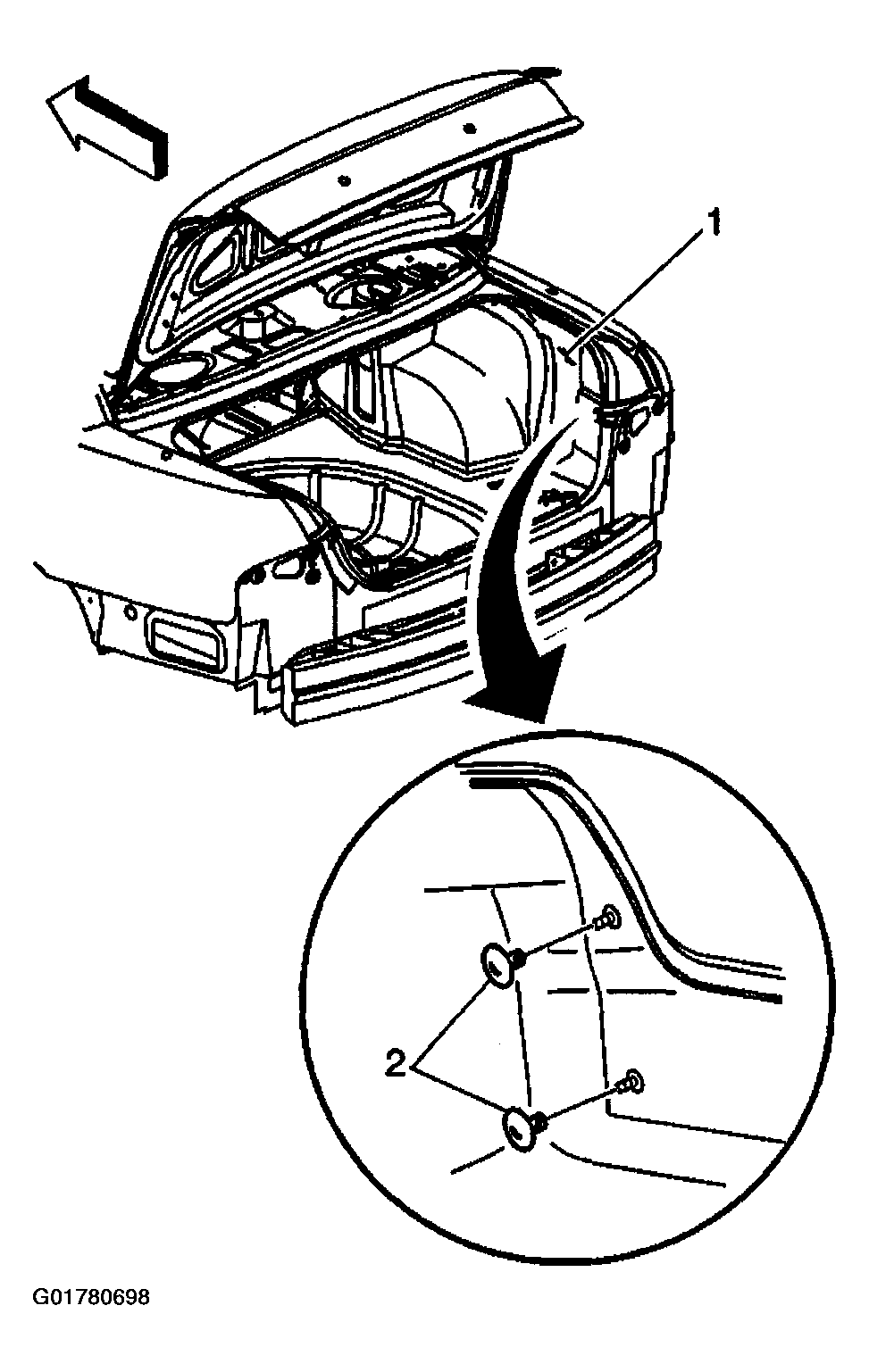

    6. Fig 2: Installing Rear Compartment Trim Panel Retainers
    G01780698Courtesy of GENERAL MOTORS CORP.
  6. Install the spare tire cover to the rear compartment
  7. Install the convenience retainers, if equipped.
  8. Install the convenience net, if equipped.
  9. Install the sill trim plate to the rear compartment. Refer to Compartment Sill Plate Replacement - Rear .
