Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Place a protective covering over the adjacent body panels.
  3. Remove the rear compartment spoiler, if equipped. Refer to Spoiler Replacement - Rear .
  4. Remove the rear compartment lid applique. Refer to Compartment Lid Applique Replacement - Rear .
  5. Remove the rear compartment lid lock cylinder. Refer to Lock Cylinder Replacement - Rear Compartment Lid .
  6. Remove the rear compartment lid latch. Refer to Latch Replacement - Rear Compartment Lid .
  7. Remove the rear compartment lid overslam bumpers from the rear compartment lid.
  8. Remove the wire harness from the rear compartment lid.
  9. Place the lid harness in the rear compartment.
  10. With an assistant, remove the rear compartment lid bolts (2) from the rear compartment lid.
  11. With an assistant, remove the rear compartment lid (1) from the vehicle.

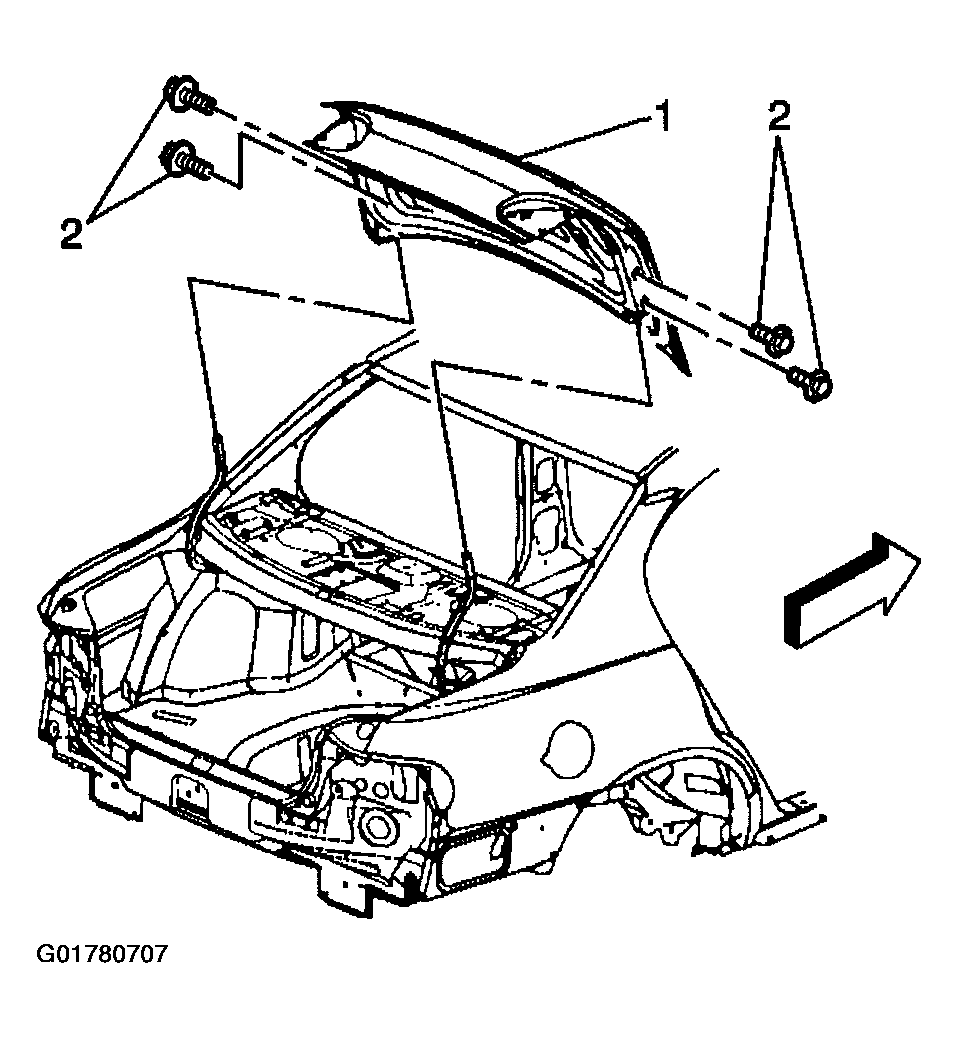

    Fig 1: Removing Rear Compartment Lid
    G01780707Courtesy of GENERAL MOTORS CORP.
