Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. With an assistant, position the rear compartment lid (1) to the hinges.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the rear compartment lid bolts (2) to the rear compartment lid.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  3. Install the rear compartment lid wiring harness to the rear compartment lid.
  4. Install the rear compartment spoiler, if equipped. Refer to Spoiler Replacement - Rear .
  5. Install the rear compartment lid applique. Refer to Compartment Lid Applique Replacement - Rear .
  6. Install the rear compartment lid lock cylinder. Refer to Lock Cylinder Replacement - Rear Compartment Lid .
  7. Install the rear compartment lid latch. Refer to Latch Replacement - Rear Compartment Lid .
  8. Install the rear compartment lid overslam bumpers.
  9. Remove the protective covering from the adjacent body panels.
  10. Adjust the rear compartment lid as necessary.
  11. Close the rear compartment.

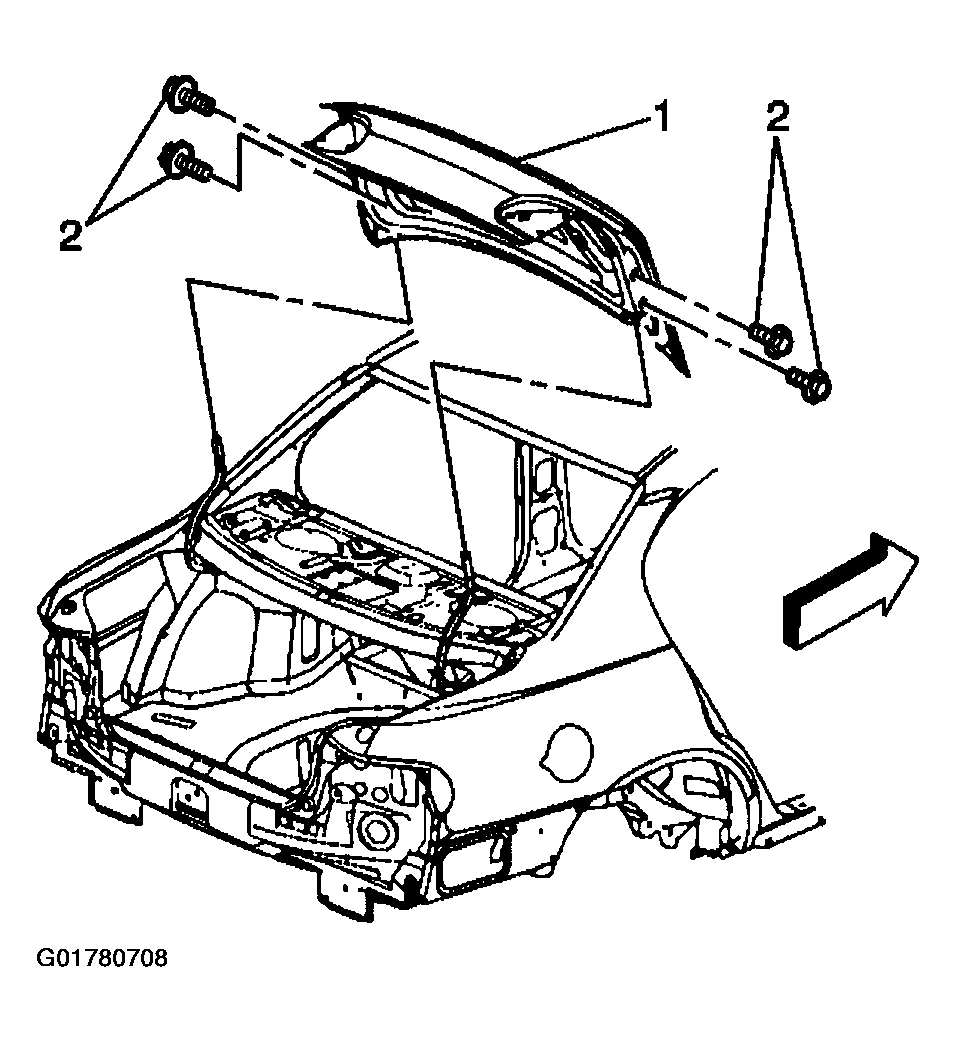

    Fig 1: Installing Rear Compartment Lid
    G01780708Courtesy of GENERAL MOTORS CORP.
