Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear compartment lid applique (1) to the rear compartment lid.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the rear compartment lid applique nuts (2) to the rear compartment lid applique (1).

    Tighten

    Tighten the rear compartment lid applique nuts to 2 N.m (18 lb in).

  3. Close the rear compartment.

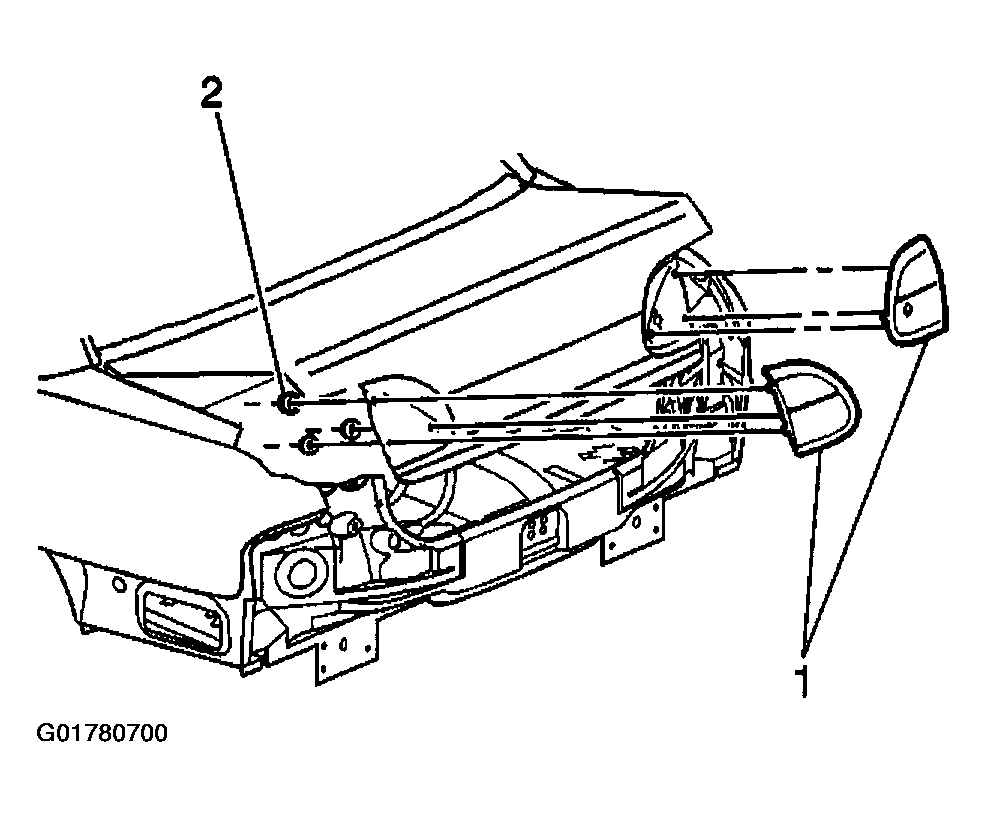

    Fig 1: Installing Rear Compartment Lid Applique
    G01780700Courtesy of GENERAL MOTORS CORP.
