Body Rear End Component Views

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

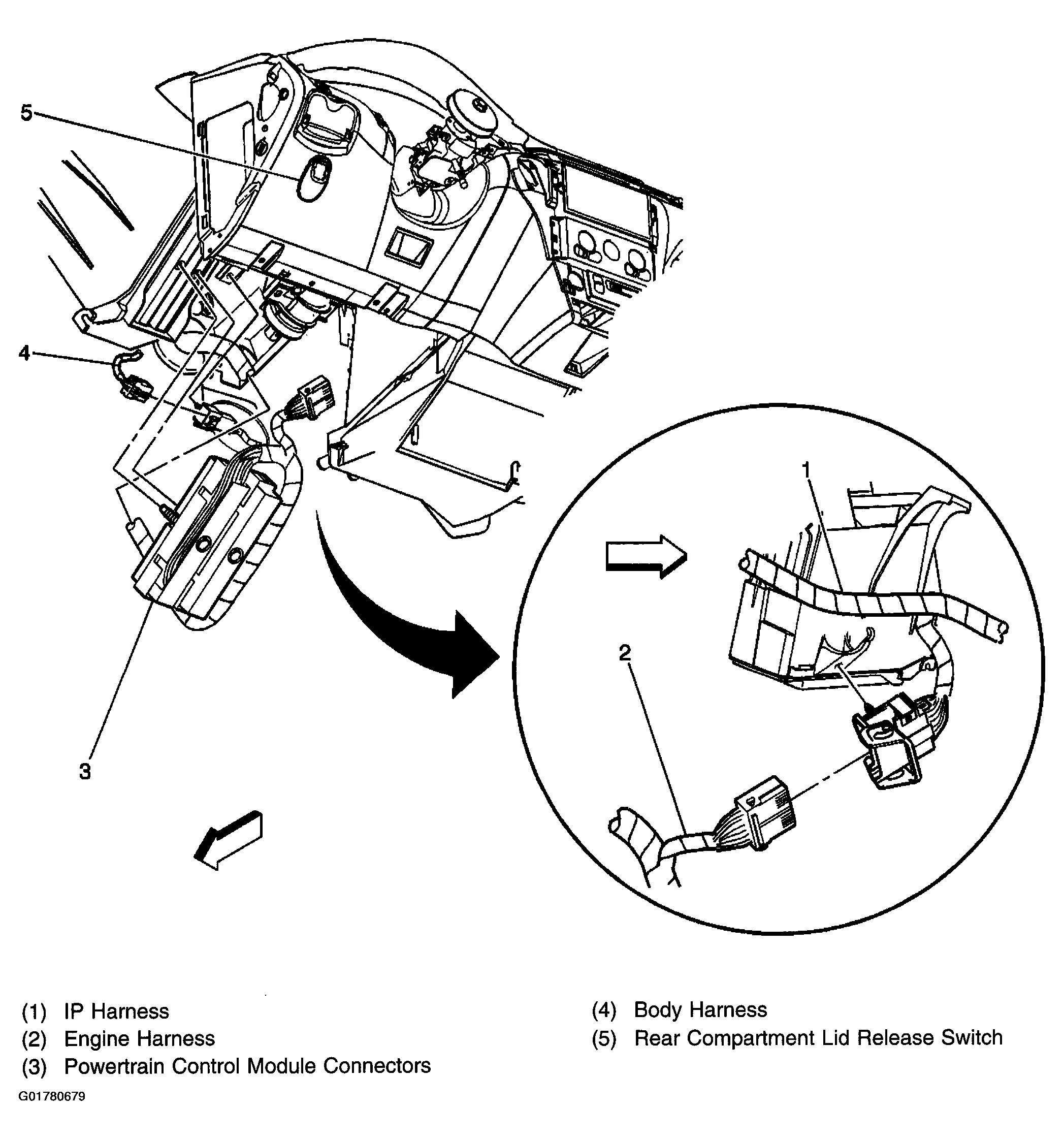

Fig 1: Identifying Below the Left Side of the IP, Near the Steering Column
G01780679Courtesy of GENERAL MOTORS CORP.

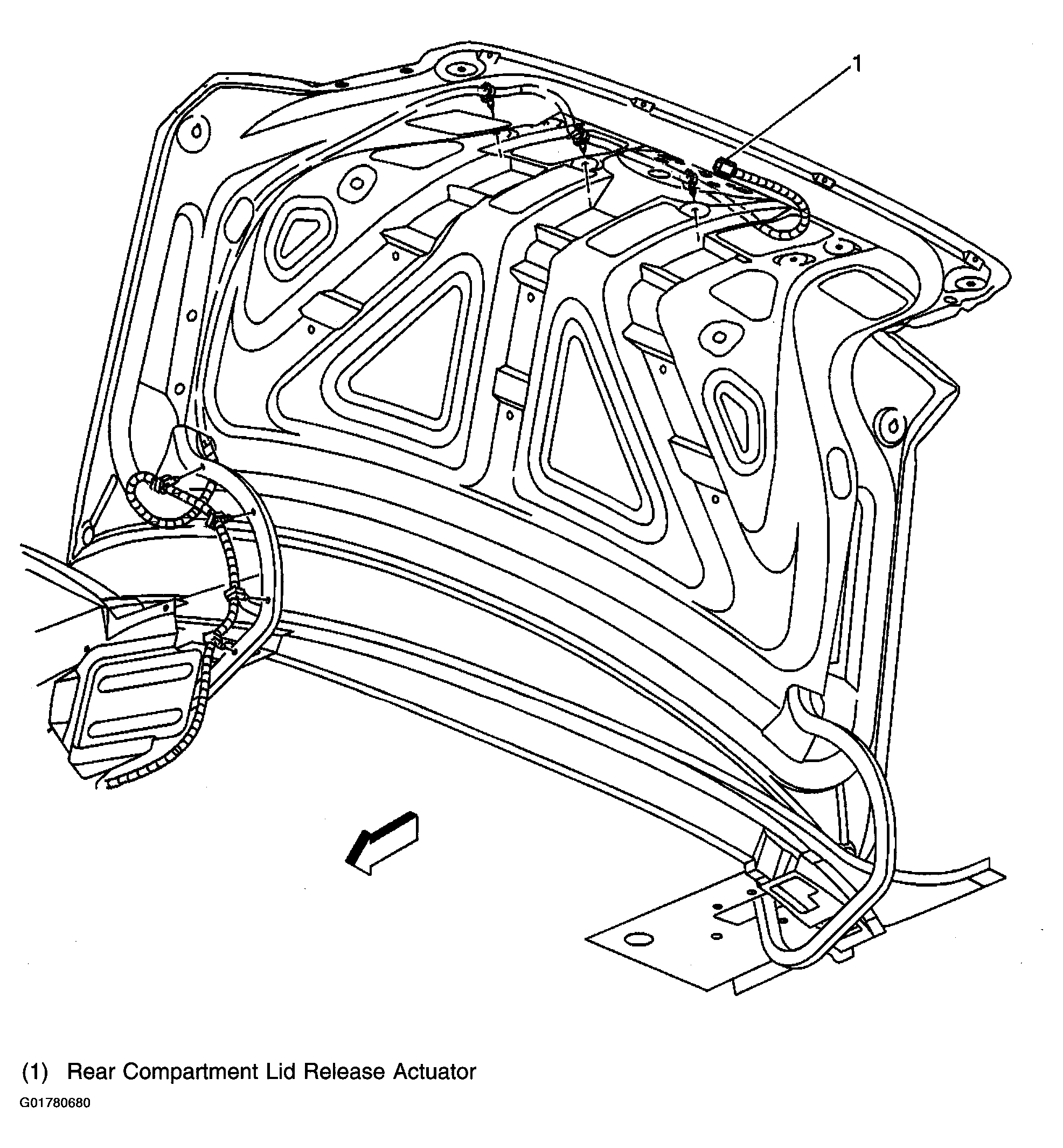

Fig 2: Identifying Rear Compartment Lid
G01780680Courtesy of GENERAL MOTORS CORP.
