Section 767 (Engine Control System)
>>
Heated Oxygen Sensor (Ho2S) Removal/Installation
>>
Except for California emission regulation applicable model
Except for California emission regulation applicable model
WARNING:
This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Heated Oxygen Sensor Removal/Installation Table-Except For California Emission Regulation Applicable Model
Courtesy of MAZDA MOTORS CORP.

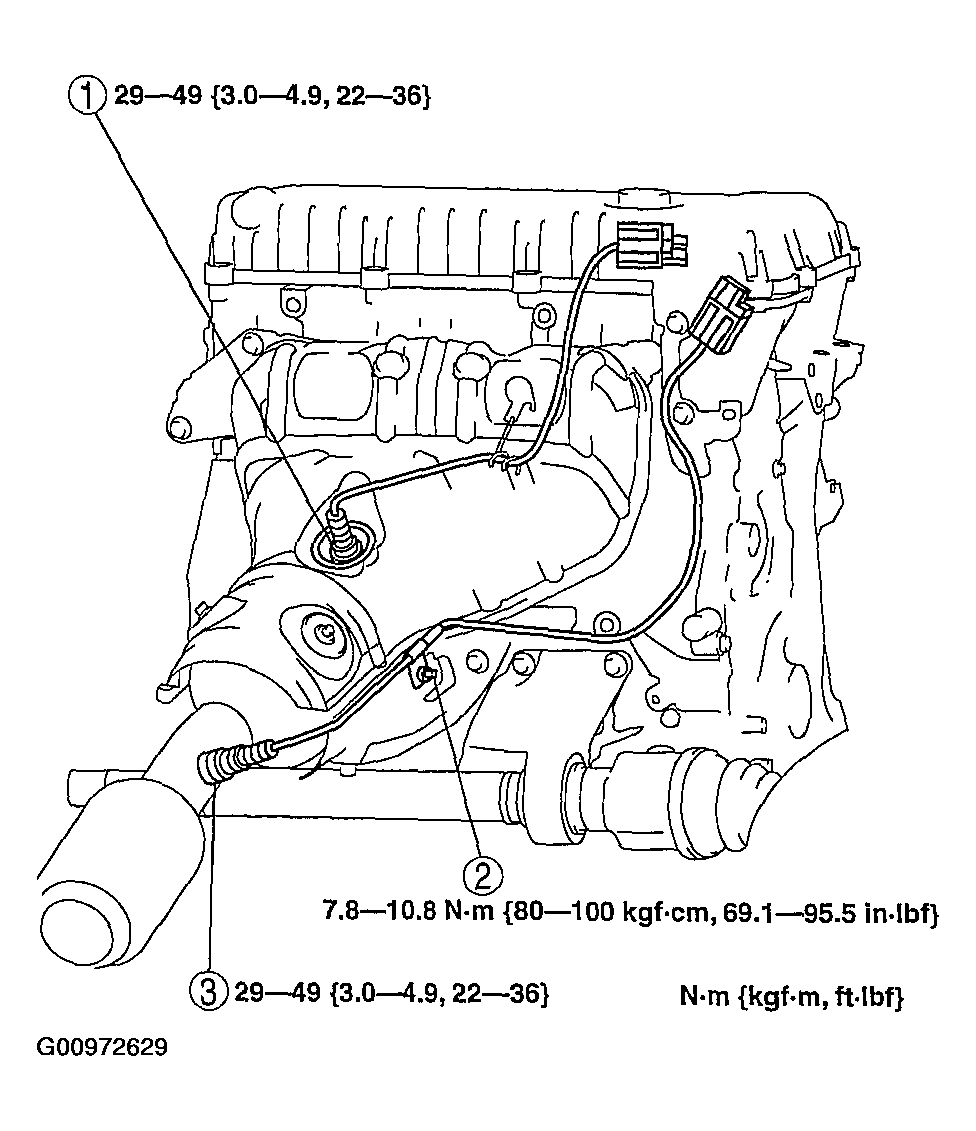

Fig 2: Heated Oxygen Sensor-Except For California Emission Regulation Applicable Model With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
