Charcoal Canister Installation Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Fit the charcoal canister into the stay.
Install the breather hose and clamp as shown in the figure.

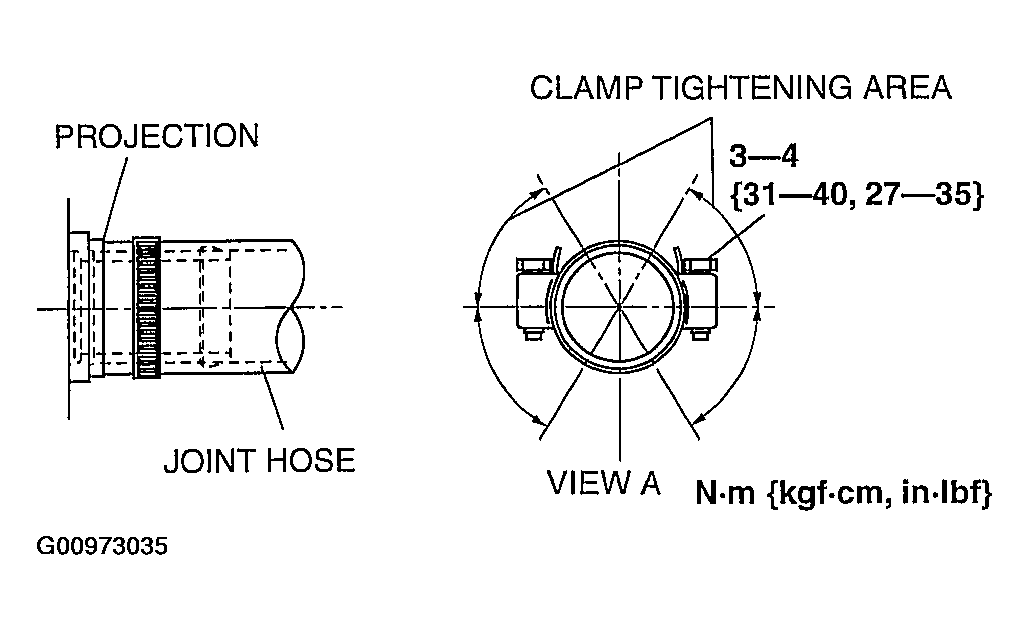

Fig 1: Locating Clamp Tightening Area On Breather Hose With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
