Variable Intake-Air Shutter Valve Actuator Inspection [LF]

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF] .)
Disconnect the vacuum hose from the variable intake-air shutter valve actuator.
Connect a vacuum pump to the variable intake-air shutter valve actuator.
Apply vacuum and verify that the rod moves.
- If the rod dose not move, replace the intake manifold.
Fig 1: Variable Intake-Air Shutter Valve Actuator [LF] Vacuum Specification Table
Courtesy of MAZDA MOTORS CORP.

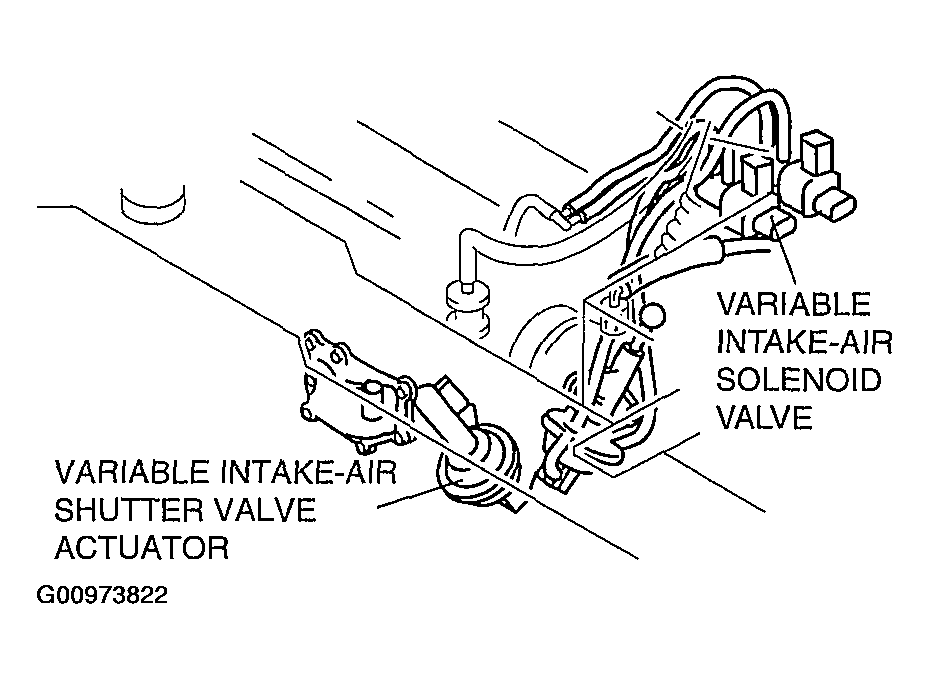

Fig 2: Locating Variable Intake-Air Shutter Valve Actuator & Variable Intake Air Solenoid Valve [LF]
Courtesy of MAZDA MOTORS CORP.
