Resistance Inspection: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Disconnect the throttle body connector.
Measure the resistance between throttle actuator terminals E and F.
- If not as specified, replace the throttle body.
  (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF] .) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3] .)
- If as specified, carry out the Circuit Open/Short Inspection .

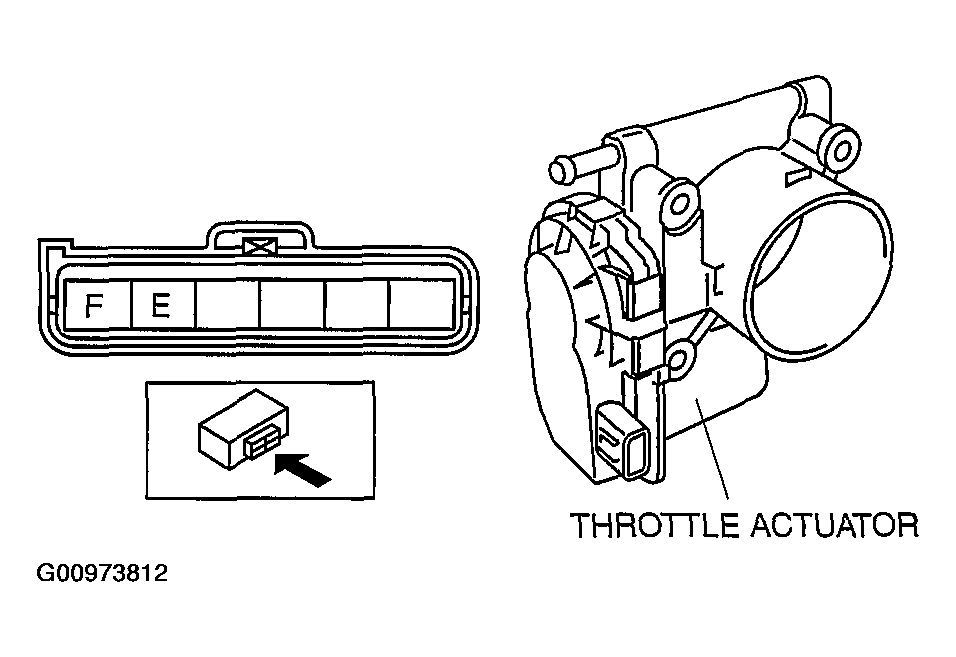

Fig 1: Locating Throttle Body Actuator
Courtesy of MAZDA MOTORS CORP.
