Intake-Air System Removal/Installation [L3]: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • A hot engine and intake air system can cause severe burns. Turn off the engine and wait until they are cool before removing the intake air system.
  • Fuel line spills and leakage from the pressurized fuel system are dangerous. Fuel can ignite and cause serious injury or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the "Fuel Line Safety Procedure", while referring to the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
  1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  2. Remove the battery cover and battery duct.
  3. Remove the under cover.
  4. Disconnect the negative battery cable.
  5. Remove in the order indicated in the illustration.
  6. Install in the reverse order of removal.
  7. Complete the "AFTER SERVICE PRECAUTION".

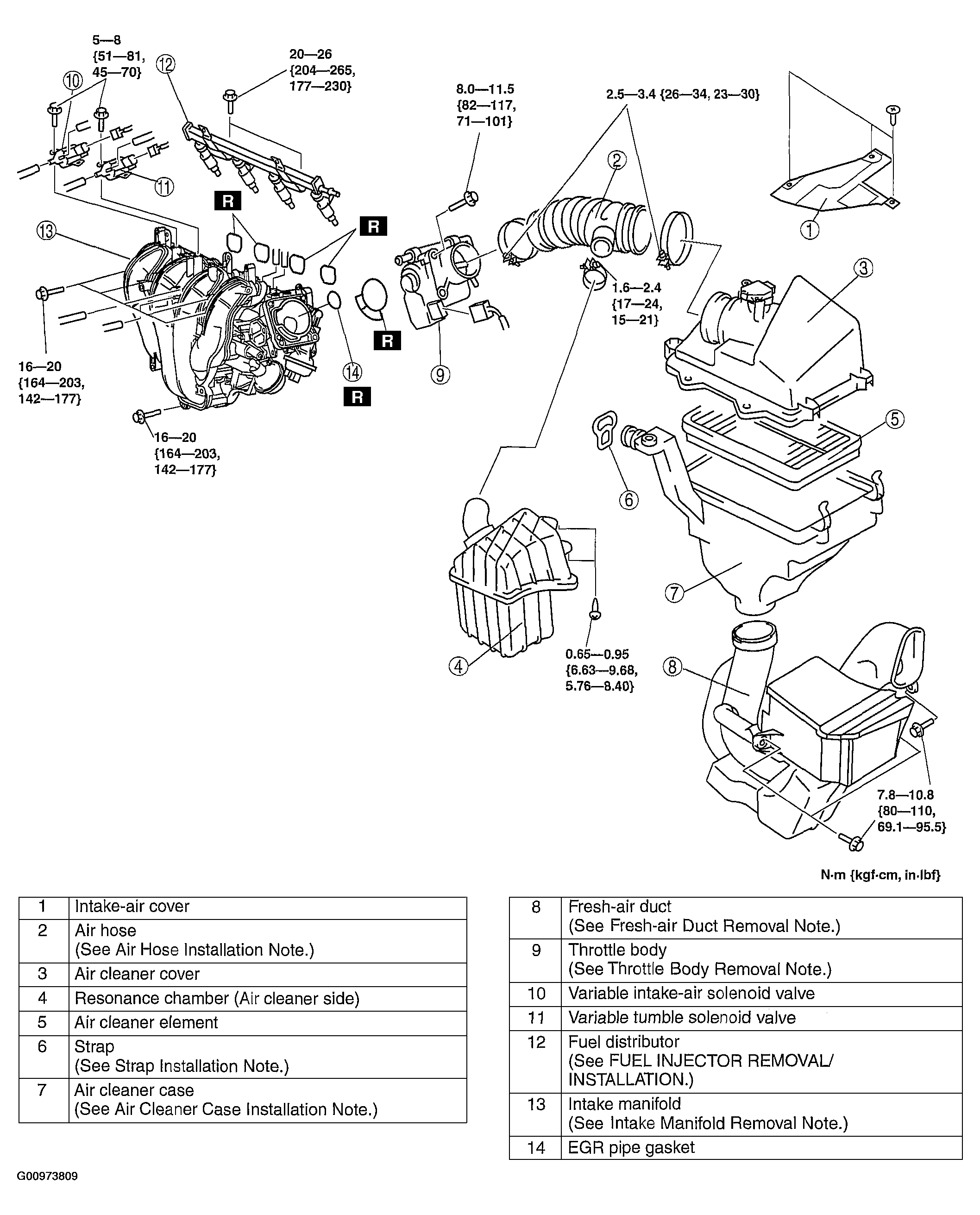

    Fig 1: Intake-Air System [L3] With Torque Specifications
    G00973809Courtesy of MAZDA MOTORS CORP.
