Intake-Air System Location Index [LF]

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

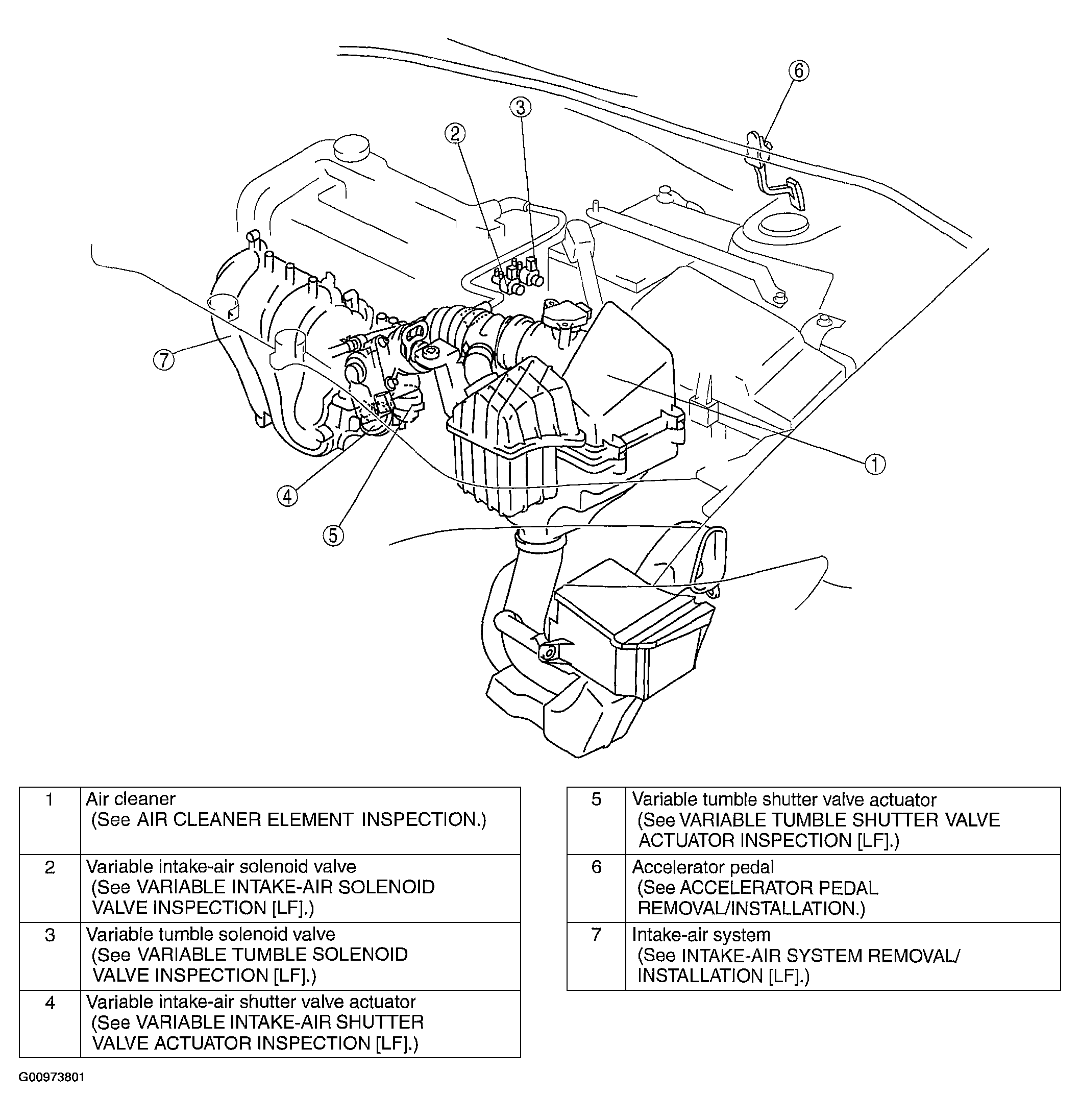

Fig 1: Intake-Air System Location Index [LF]
G00973801Courtesy of MAZDA MOTORS CORP.
