Oil Pump Sprocket Removal/Installation Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Install the SST to the oil pump sprocket to stop the oil pump from rotating.

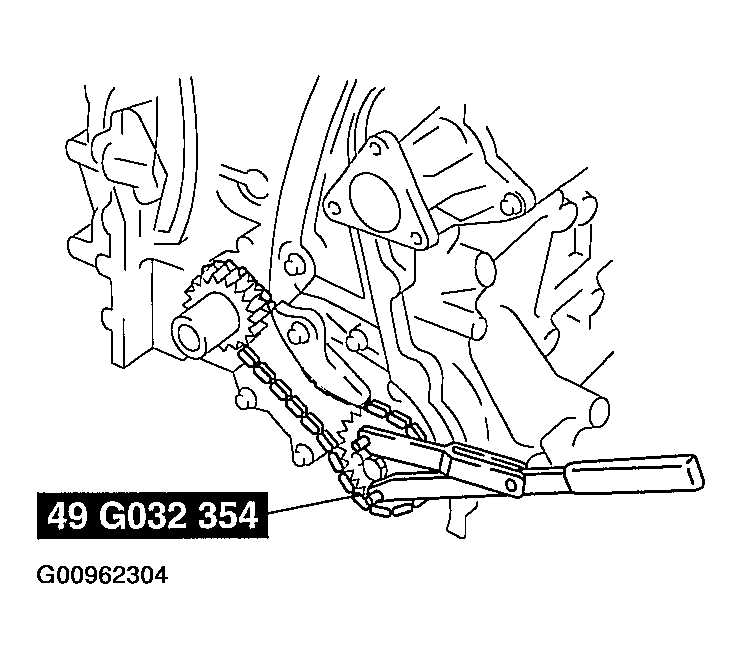

Fig 1: Installing Special Tool To Oil Pump Sprocket
Courtesy of MAZDA MOTORS CORP.
