Oil Pump Sprocket Removal Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hold the oil pump sprocket using the SST  .

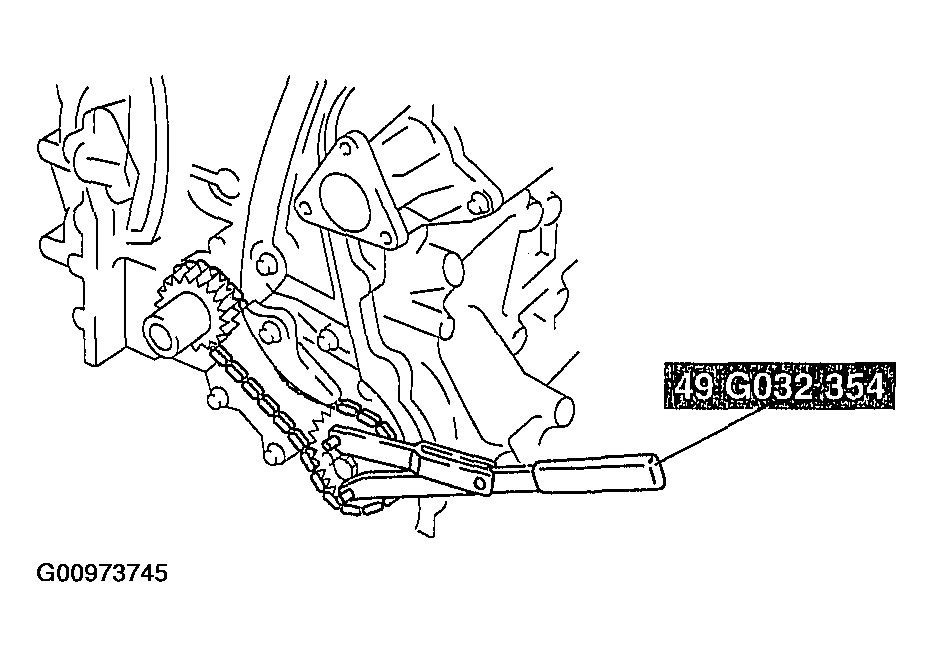

    Fig 1: Holding Oil Pump Sprocket Using Special Service Tool (Removing)
    G00973745Courtesy of MAZDA MOTORS CORP.
