No.3 Engine Mount Rubber And No.3 Engine Mount Bracket Installation Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Tightening stud bolt when the nut of No.3 engine mount nut is loosened.

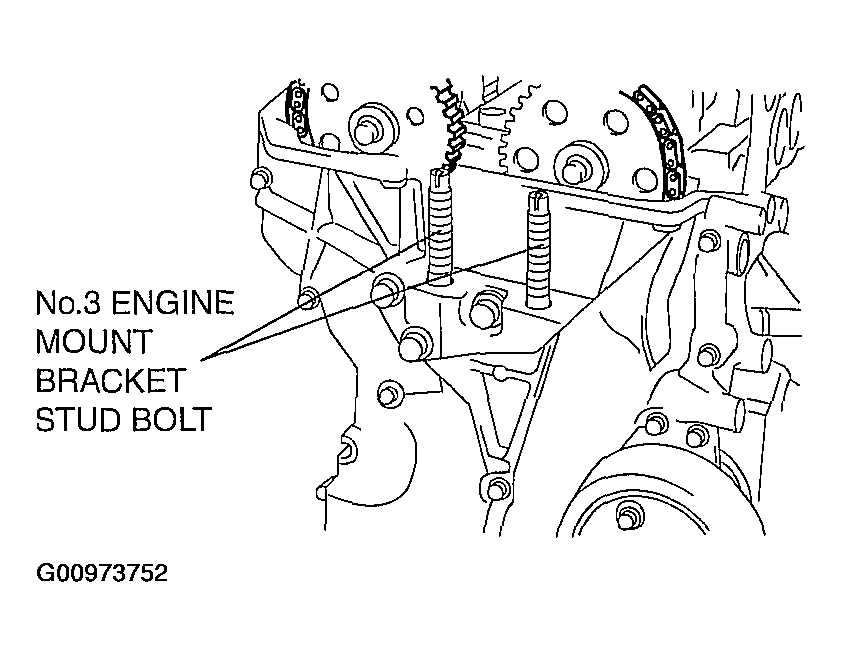

Fig 1: Locating No.3 Engine Mount Bracket Stud Bolt

Courtesy of MAZDA MOTORS CORP.

Tighten the stud bolt of the No.3 engine mount bracket.
Tightening Torque

7.0-13 N.m {71.4-132.5 kgf.cm, 62.0-115.0 in.lbf}
Hand-tighten the No.3 engine mount rubber and No.3 engine mount bracket.
Tighten the bolts and nuts in the order as shown in the figure.
Tightening Torque

74.5-104.9 {7.6-10.6 kgf.m, 55.0-76.6 ft.lbf}

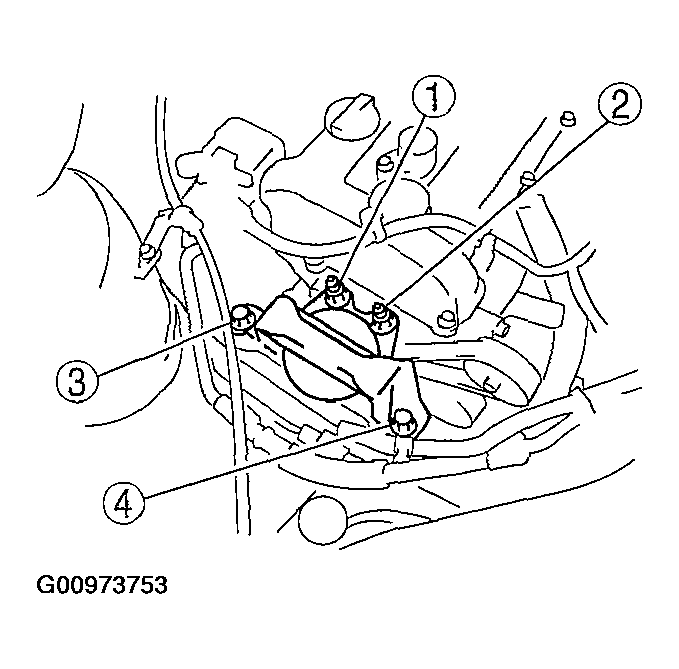

Fig 2: No.3 Engine Mount Bracket Bolt & Nut Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
