No.3 Engine Mount Removal Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Wood slab height.
1. 4 Door: approx. 35 mm {1.38 in}
2. 5 Door: approx. 60 mm {2.36 in}
Cut the wood slab into two piece and insert.

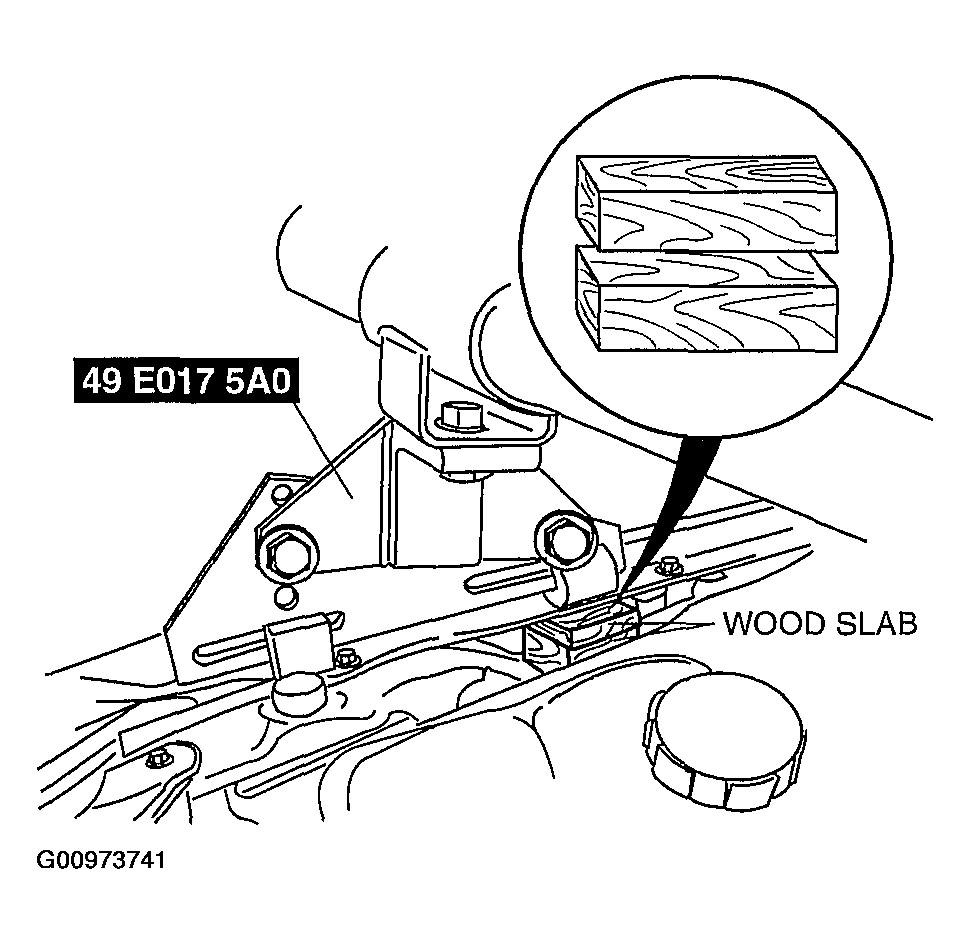

Fig 1: Installing Wood Slabs Between Front Fender Panel & Apron Reinforcement Upper

Courtesy of MAZDA MOTORS CORP.

Install the suitable wood slabs between the front fender panel and apron reinforcement upper.

NOTE:

A hoist or small crane can be used in place of the SST (49E 017 5A0) .

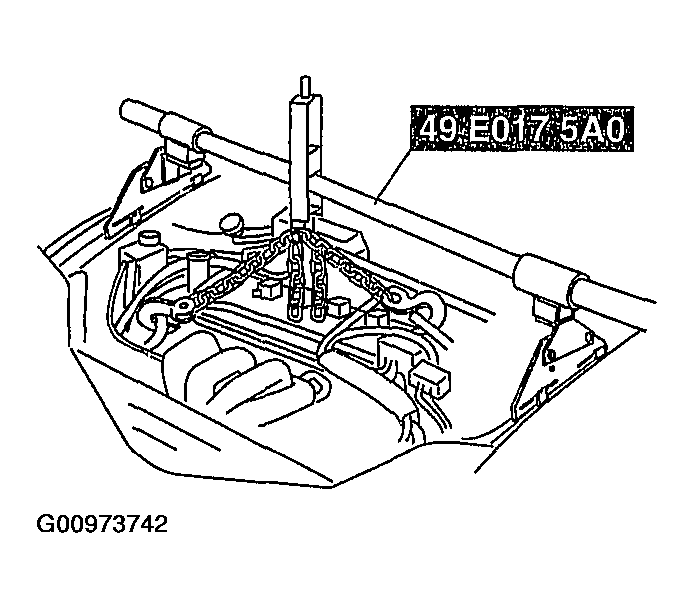

Fig 2: Supporting Engine

Courtesy of MAZDA MOTORS CORP.

Support the engine using the SST .
