Chain TENSIONER Removal Note
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

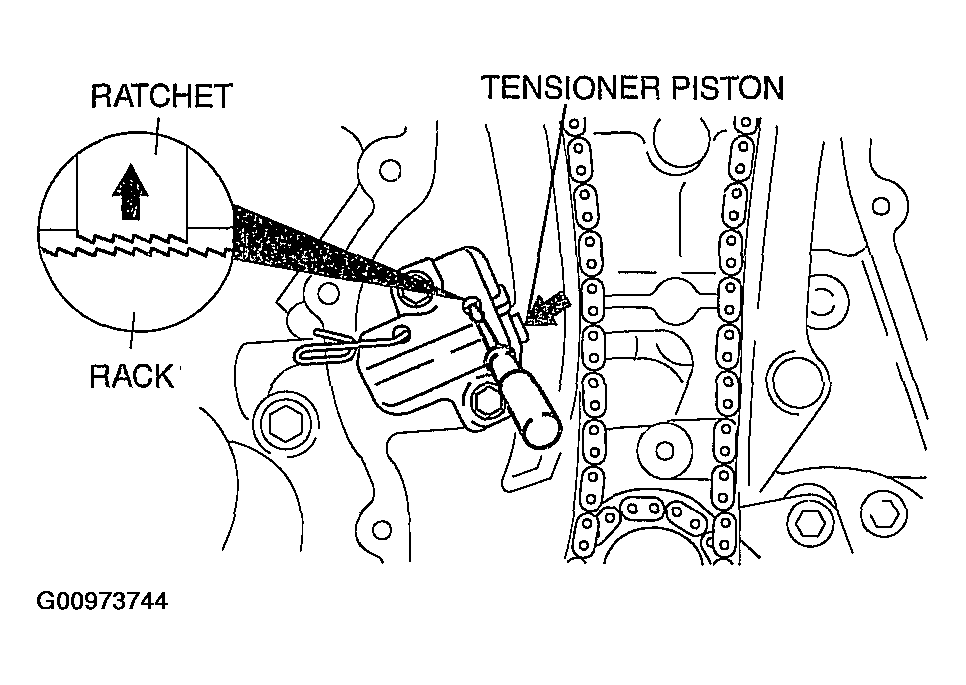

- Unlock the chain tensioner ratchet using a suitable screw driver or equivalent tool.
- Slowly compress the tensioner piston.
- Hold the tensioner piston using a 1.5 mm {0.059 in}
wire or paper clip.
Courtesy of MAZDA MOTORS CORP.
